Basic Definition and Product Features

A spiral gear, also known as a spiral bevel gear, is a type of gear that has curved teeth instead of straight teeth. The tooth profile of a spiral gear is designed to form a spiral curve around the gear axis. This curved tooth profile allows for smoother and more gradual engagement between the mating gears, resulting in improved load distribution and reduced noise compared to straight-cut gears.

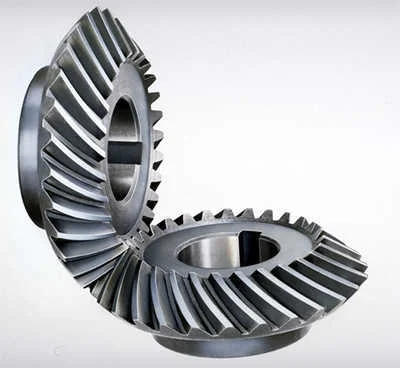

Advantages of Spiral Gears

1. Increased Load Capacity

The curved tooth profile of spiral gears enables a larger contact area between the mating gears, allowing for higher load-carrying capacity and improved power transmission efficiency.

2. Improved Efficiency

The gradual engagement of spiral gears results in reduced sliding friction and improved meshing efficiency. This leads to higher overall gear system efficiency, especially in applications with high-speed and high-torque requirements.

3. Reduced Noise and Vibration

The spiral tooth profile of spiral gears helps in achieving smoother and quieter gear operation. The gradual contact between the teeth reduces impact and vibration, resulting in reduced noise levels compared to straight-cut gears.

4. Better Load Distribution

The spiral tooth profile allows for a more uniform load distribution across the gear teeth. This helps in minimizing localized tooth stresses and improves the overall durability and reliability of the gear system.

5. Enhanced Lubrication

The curved tooth profile of spiral gears facilitates better lubricant flow and retention between the teeth. This improves the lubrication effectiveness, reduces wear, and enhances the longevity of the gear system.

6. Versatile Applications

Spiral gears can be used in a wide range of applications, including automotive transmissions, industrial machinery, marine propulsion systems, and aerospace applications. Their ability to handle high loads, high speeds, and varying operating conditions makes them suitable for diverse gear applications.

7. Misalignment Tolerance

Spiral gears exhibit better tolerance to misalignment compared to some other gear types. The curved tooth profile allows for a certain degree of misalignment without compromising the gear’s performance and durability.

8. Ease of Assembly

Spiral gears are relatively easier to assemble compared to other complex gear types, such as hypoid gears. This simplifies the manufacturing and assembly processes, leading to cost savings and improved production efficiency.

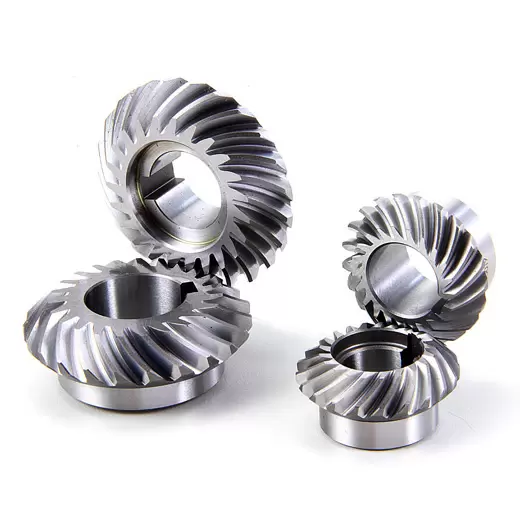

Working Principle of Spiral Gears

The working principle of spiral gears is based on the meshing of the curved teeth profiles. When two spiral gears come into contact, the curved teeth engage gradually, starting from the outer edge of the gears and moving towards the center. This gradual engagement reduces impact forces, minimizes sliding friction, and ensures smooth and efficient power transmission. The curved tooth profiles allow for a larger contact area, leading to improved load distribution, higher load capacity, and reduced wear. The spiral gears rotate in opposite directions and transfer torque and rotational motion between shafts that are perpendicular to each other.

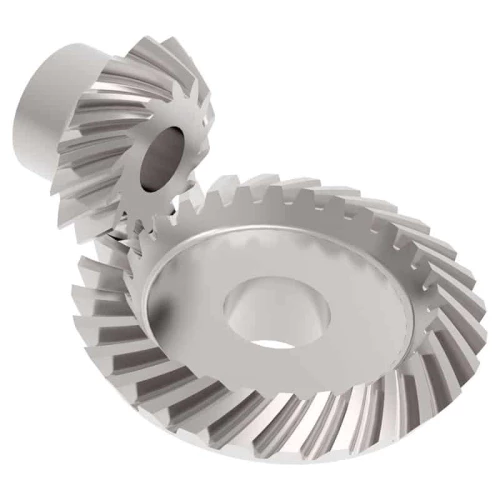

Applications of Spiral Gears

1. Industrial Machinery: Spiral gears are commonly used in various industrial machinery applications such as gearboxes, conveyors, and pumps. They provide reliable power transmission and can handle heavy loads in demanding industrial environments.
2. Automotive Industry: Spiral gears find applications in automotive transmissions, differential systems, and steering mechanisms. They offer high load capacity and smooth operation, contributing to the overall performance and efficiency of vehicles.
3. Robotics: Spiral gears are used in robotic systems for precise motion control and efficient power transmission. They can handle the high-speed and high-torque requirements of robotic applications.
4. Medical Equipment: Spiral gears are employed in medical equipment such as surgical robots and imaging systems. Their smooth and quiet operation is crucial in these sensitive and precision-driven applications.
5. Power Generation: Spiral gears are utilized in power generation equipment, including wind turbines and hydroelectric turbines. They help in transmitting rotational motion from the turbine blades to the power generator efficiently.
6. Agricultural Machinery: Spiral gears are integrated into agricultural machinery like tractors and combines for various power transmission applications. They can handle heavy loads and provide reliable performance in agricultural operations.
7. Aerospace Industry: Spiral gears are employed in aerospace applications such as aircraft engines and landing gear systems. They offer high load capacity, durability, and efficient power transmission in extreme operating conditions.
8. Marine Propulsion: Spiral gears are used in marine propulsion systems, including boat engines and outboard motors. They provide reliable torque transfer and smooth operation in marine environments.
9. Mining and Construction Equipment: Spiral gears find applications in mining and construction equipment, such as excavators and bulldozers. They can handle heavy loads and withstand harsh operating conditions.

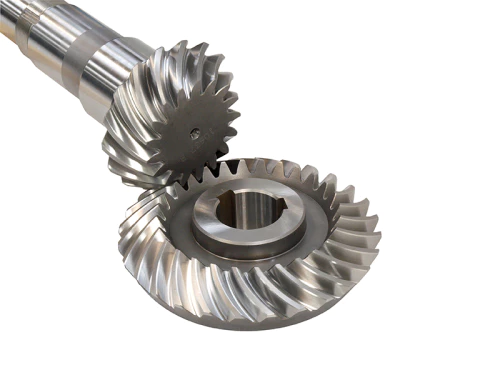

Installation and Maintenance of Spiral Gears

Installation:

1. Ensure Proper Alignment: Proper alignment between the mating gears is crucial for optimal gear performance and longevity.
2. Check Gear Clearances: Verify that the gear clearances meet the specified requirements to ensure smooth operation and proper engagement.
3. Lubrication: Apply the recommended lubricant to the gear teeth and ensure proper lubrication for smooth gear operation and reduced wear.
4. Torque Application: Apply the appropriate torque during assembly to ensure secure and reliable gear engagement.

Maintenance:

1. Regular Inspection: Regularly inspect the gear system for any signs of wear, damage, or misalignment.
2. Lubrication Maintenance: Monitor and maintain proper lubrication to ensure effective lubrication and prevent excessive wear.
3. Cleanliness: Keep the gear system clean to prevent the accumulation of debris and contaminants that can affect gear performance.
4. Check for Abnormal Noise or Vibration: Monitor gear operation for any abnormal noise or vibration, which may indicate potential issues.
5. Gear Tooth Inspection: Inspect the gear teeth for any signs of wear, pitting, or damage and take appropriate actions if necessary.
6. Misalignment Correction: Address any misalignment issues promptly to prevent further damage and ensure optimal gear performance.
7. Record Keeping: Maintain proper records of gear inspections, maintenance activities, and any repairs or replacements.

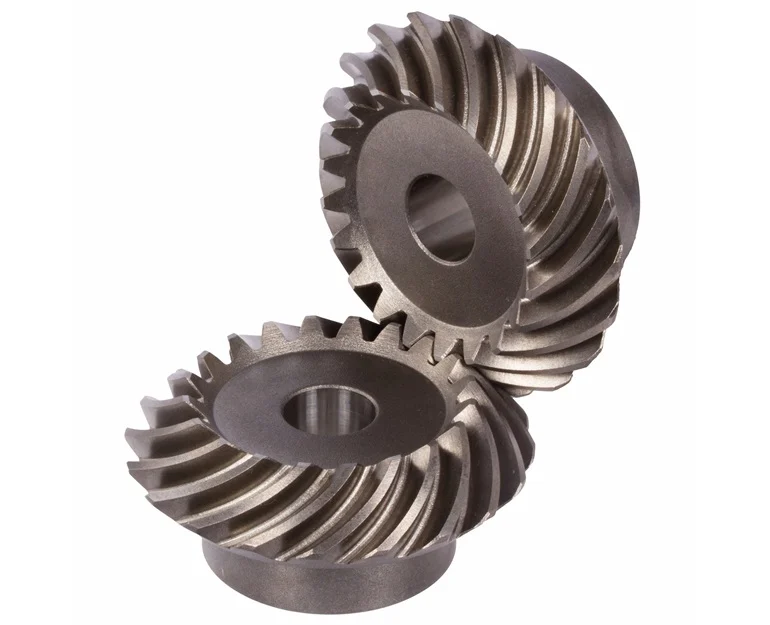

How to Select Suitable Spiral Gears?

1. Determine Application Requirements: Understand the specific requirements of the gear application in terms of load, speed, and operating conditions.
2. Consider Gear Ratio: Evaluate the desired gear ratio based on the application’s torque and speed requirements.
3. Assess Load Capacity: Determine the required load capacity of the gear system to ensure reliable and safe operation.
4. Evaluate Speed Requirements: Consider the speed requirements of the application to select spiral gears capable of handling the desired rotational speed.
5. Analyze Gear Size and Dimensions: Take into account the available space and dimensional constraints to select spiral gears that fit within the designated area.
6. Assess Gear Material: Consider the application’s environmental conditions and required strength characteristics to select the appropriate material for the spiral gears.
7. Evaluate Gear Quality and Accuracy: Ensure that the selected spiral gears meet the required quality standards and have accurate tooth profiles for optimal performance.
8. Consider Noise and Vibration: Evaluate the noise and vibration requirements of the application to select spiral gears that provide the desired levels of quiet operation.
9. Review Cost Considerations: Consider the budgetary constraints and overall cost-effectiveness when selecting spiral gears.
10. Seek Expert Advice: Consult with experienced gear professionals or manufacturers to get expert advice and guidance in selecting suitable spiral gears for the specific application.

About EVER POWER

EVER POWER is a professional manufacturer of gears in China. Our products are exported to different countries such as Spain, the Netherlands, the United States, South Korea, Turkey, and Russia. We sincerely hope to help customers develop new products and solve technical and quality problems. We are willing to meet the needs of users with high-quality products, fair prices, and perfect services. In short, we adhere to the principles of quality first, timely delivery, and credit first, treat every business partner sincerely, and wholeheartedly welcome friends from the business community to cooperate with us to develop together and create brilliance.

Besides spiral gears, EVER POWER also offers other gear products such as Worm Gear, Helical Gear, Spur Gear, plastic gear, metric gear rack, etc. Customers are welcome to inquire about customized products.

EVER POWER is a professional manufacturer of gears in China. Its products are mainly sold to hundreds of fixed suppliers such as domestic steel rolling mills, shipyards, precision machine tool factories, automation machinery factories, and various distribution companies, and exported to Western Europe, the Middle East, and Southeast Asia and other countries and regions. The developing EVER POWER currently has hundreds of employees, including many engineers, with fixed assets of 20 million yuan and an annual output value of 50 million yuan.

The company has a complete set of strict quality management systems, equipped with a series of precision measuring instruments such as optical projectors and 16 full-process production monitoring systems. EVER POWER has considerable competitiveness in the same industry.

This entry was posted in Knowledge, spiral gear and tagged spiral gear, Spiral gear application on April 30, 2024 by m.
