Understanding Bevel Gears: An In-depth Guide
What does a Bevel Gear do?
Bevel gears are a unique type of gear that’s primarily used to change the direction of shaft rotation. These gears are typically mounted on shafts that intersect, usually at right angles, but this angle can be anything other than a 90-degree angle.
- Change of direction: The primary function of bevel gears is to change the direction of rotation between two intersecting shafts.
- Change of speed: Like other gears, bevel gears can also change the speed of rotation, increasing or decreasing it as required.
- Torque transmission: Bevel gears are also essential for transmitting torque from one shaft to the other.
Our High-Quality Bevel Gears
We produce top-quality bevel gears that are characterized by the following features:
- Precision engineered for optimal performance.
- Constructed from high-strength, durable materials.
- Available in a variety of sizes and configurations.
- Designed for long-lasting, reliable operation.
- Subjected to rigorous quality control tests to ensure their reliability and durability.
Types of Bevel Gears and Their Features
There are several types of bevel gears, each with its unique features.
Straight Bevel Gear
Straight bevel gears have teeth that are straight and taper towards the apex. They are simple to produce and are used in machinery that doesn’t require high speed or high torque.

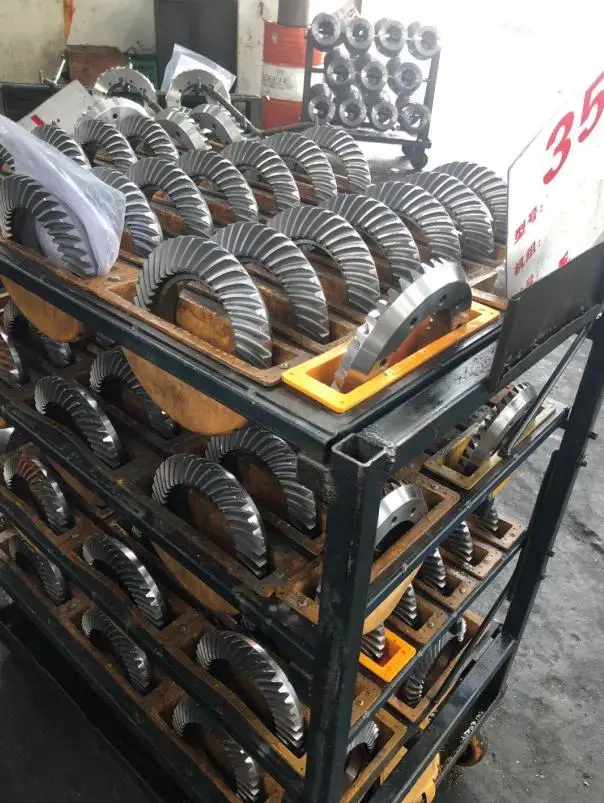

Spiral Bevel Gear
Spiral bevel gears have curved, oblique teeth that provide smooth and quiet operation. They are used in applications requiring high speed and high torque.
Zerol Bevel Gear
Zerol bevel gears are very similar to straight bevel gears, except their teeth are curved. The teeth curvature allows for gradual loading and smoother operation.
Spiral Zerol Bevel Gear
Spiral Zerol Bevel gears combine the best features of spiral and zerol bevel gears. They have curved teeth like spiral bevel gears for smooth operation, and they can be used with non-parallel shafts like zerol bevel gears.
Choosing the Right Bevel Gears
Selecting the appropriate bevel gear requires understanding various parameters such as:
- Module: This represents the size of the gear teeth. A smaller module means smaller teeth and vice versa.
- Number of Teeth: The number of teeth on a gear determines its gear ratio, which affects the gear’s speed and torque.
- Gear Ratio: This is the ratio of the number of teeth on the driving gear to the driven gear. It determines the gear’s speed and torque.
- Pitch: This is the distance between corresponding points on adjacent teeth. It affects the gear’s size and speed.
- Gear Material: The material used to make the gear affects its strength, durability, and performance.
- Precision Grade: This refers to the gear’s manufacturing accuracy. Higher precision gears operate more smoothly and quietly.
- Load Capacity: This is the maximum load the gear can handle without failing.
Manufacturing Process of Bevel Gears
The production process of bevel gears involves several steps:
- Design and Engineering: The process begins with the design of the gear based on its intended application.
- Material Selection: The appropriate material is selected based on the gear’s requirements.
- Cutting and Machining: The gear is cut and machined to the desired shape and size.
- Heat Treatment: The gear is heat-treated to enhance its strength and durability.
- Cleaning and Inspection: The gear is cleaned and inspected for any defects.
- Assembly and Finishing: The gear is assembled and finished to ensure it operates smoothly.
- Final Inspection and Quality Control: The final product is inspected and tested to ensure it meets the required quality standards.
Our Other Gear and Gearbox Products
In addition to bevel gears, we also offer other gear and gearbox products such as worm gears, helical gears, spur gears, gear racks, worm gearboxes, planetary gearboxes, and helical gearboxes.
About Our Company
We are a leading manufacturer of gears and gearboxes. With state-of-the-art production and inspection equipment like CNC Gear grinding machines, gear measuring machines, CNC gear shapers, machine centers, CMMS, and Torque test systems, we deliver top-quality products that meet and exceed our clients’ expectations.
In addition to our technical expertise, we also offer exceptional customer service. We understand that every client has unique needs, and we are committed to providing customized solutions that perfectly fit those needs. Our international certifications attest to our commitment to quality, and our after-sales service ensures our clients can rely on us long after the product has been delivered.
Trust us with your gear and gearbox needs, and we will deliver quality, reliability, and excellent service.
