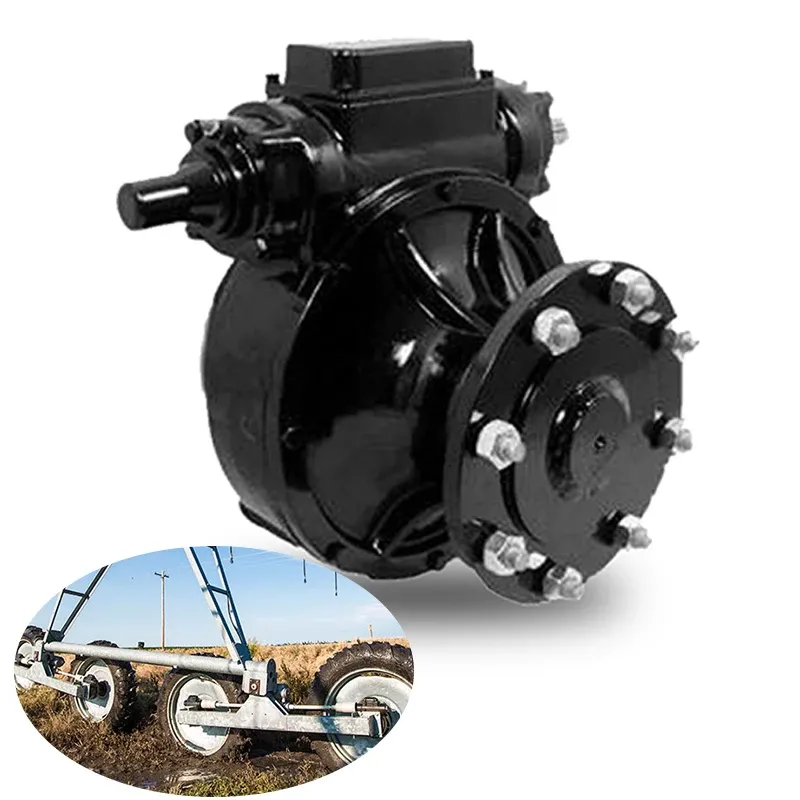

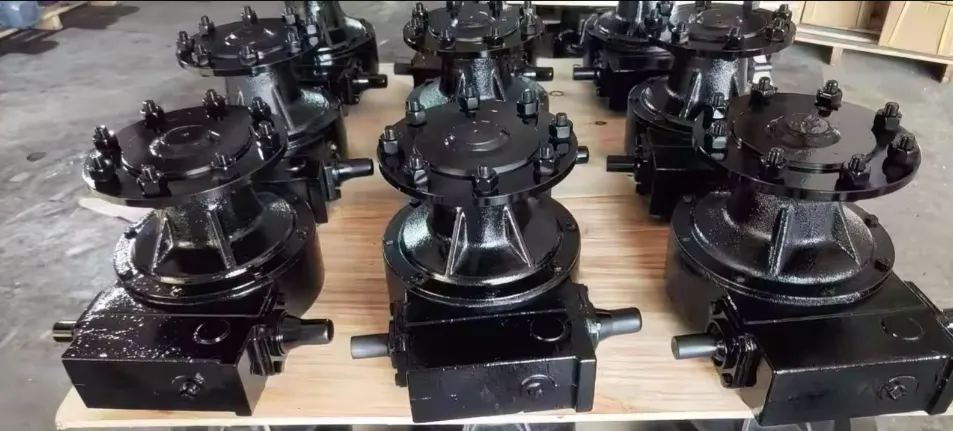

An irrigation wheel drive gearbox is a specialized mechanical component crucial for modern irrigation systems, particularly in pivot irrigation setups. This gearbox is designed to convert the rotational energy generated by the system’s motor into a precise and controlled motion that drives the wheels of the pivot irrigation system. Typically mounted at the base of each tower within the system, the gearbox ensures that the wheels rotate at a consistent speed and direction, allowing the irrigation system to move smoothly and uniformly across the field.

The design of these gearboxes is robust and weather-resistant, often made with high-quality materials that withstand various environmental challenges such as dust, water, and extreme temperatures. This durability ensures long-term reliability and reduces the need for frequent maintenance. Internally, the gearbox contains a series of gears that can handle high torque and loads, ensuring efficient power transmission from the motor to the wheels, optimizing water distribution, and minimizing energy consumption. This precise movement helps in achieving uniform irrigation, which is vital for the optimal growth of crops and efficient water use.

Key Benefits of Gearbox for Irrigation Systems

The irrigation wheel drive gearbox offers several key benefits that make it a critical component in modern irrigation systems:

1. Enhanced Efficiency

The irrigation wheel drive gearbox is integral in optimizing the power transmission mechanism from the motor to the irrigation system’s wheels. This optimization allows the system to maintain uniform speed and motion, ensuring that water is distributed evenly across the field. The uniformity in water distribution is crucial not only for the consistent growth of crops but also for maximizing the efficiency of water use, a critical aspect in areas where water conservation is essential.

2. Durability and Reliability

Constructed from materials that can endure harsh environments, the gearbox is built to last against elements like dust, water, and extreme temperatures. This durability means that the gearbox requires less frequent repairs and replacements, providing a reliable performance over an extended period. Such reliability is vital for agricultural operations, which often depend on the continuous functionality of their equipment to avoid disruptions in crop watering schedules.

3. Precise Control

The gearbox’s design allows for meticulous control over the irrigation system’s movement, facilitating precise adjustments in speed and direction. This level of control is essential for maintaining specific irrigation patterns and ensuring adequate coverage of the entire field. Precise irrigation helps in preventing both under-watering and over-watering, promoting optimal crop growth and health, and ensuring that no water is wasted.

4. Energy Conservation

By facilitating smoother operation and reducing the resistance that typically increases energy consumption, the gearbox helps in conserving energy. Energy efficiency is increasingly significant in agriculture, where reducing operational costs without compromising on output quality is a continuous goal. Lower energy usage not only reduces costs but also supports more sustainable agricultural practices.

5. Cost-Effectiveness

The initial cost of a high-quality irrigation wheel drive gearbox is offset by the benefits it brings in terms of reduced maintenance requirements, energy savings, and enhanced crop yields. These factors combine to make the gearbox a financially viable option over the long term, helping farmers and agricultural businesses manage their budgets more effectively and invest in other areas of need.

6. Adaptability

Gearboxes are designed to be compatible with various types of irrigation systems, whether they are part of new installations or integrated into existing setups. This adaptability ensures that regardless of the farm’s size or the complexity of its irrigation needs, a suitable gearbox solution can be implemented, enhancing the overall functionality and efficiency of agricultural operations.

Common Applications of Irrigation Wheel Drive Gearbox

The irrigation wheel drive gearbox is a versatile component used in various irrigation systems, each tailored to specific agricultural needs and land configurations. Here are some common applications:

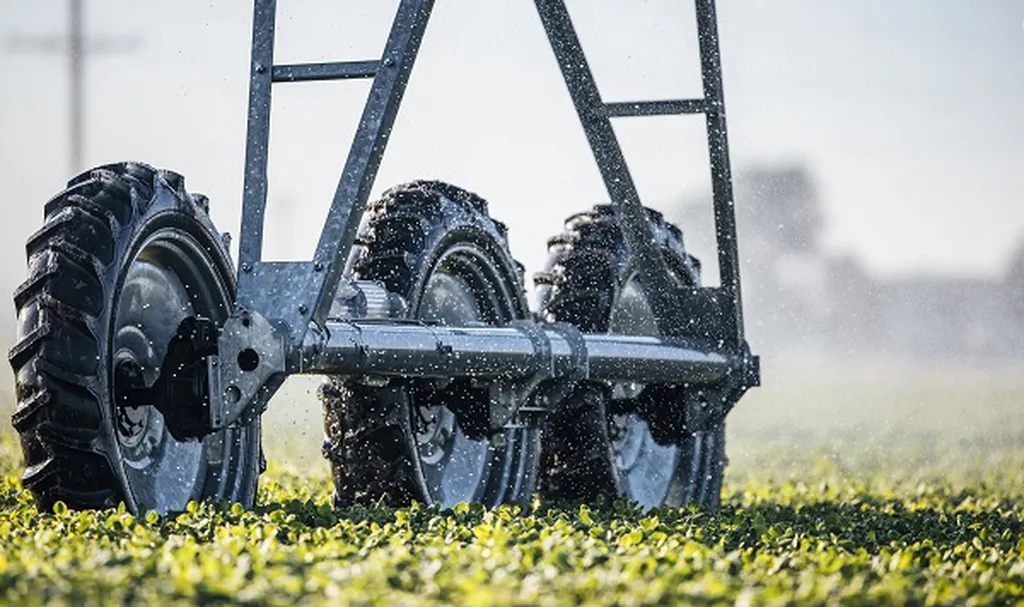

1. Center Pivot Irrigation Systems

This is perhaps the most common application for irrigation wheel drive gearboxes. These systems consist of several segments of pipes, mounted on wheeled towers with sprinklers positioned along their length. The gearbox drives the wheels, allowing the entire system to pivot around a central water source, creating large circular patterns of irrigation. This efficient use of water and energy makes center pivot systems highly effective for large, flat fields.

2. Lateral Move (Side Roll) Irrigation Systems

In lateral move systems, the irrigation setup moves linearly across the field. The wheel drive gearbox helps propel the system sideways, ensuring even distribution of water across rectangular fields. This type of system is particularly useful in fields where a central pivot is not feasible, allowing for irrigation across the entire area without the need for a fixed pivot point.

3. Linear Move Irrigation Systems

Similar to lateral move systems, linear move irrigation also involves a linear motion but is often larger and uses a guide wire or GPS for precise movement. The gearbox ensures that the system moves uniformly along its path, delivering water consistently across long, narrow fields. This system is ideal for irrigating crops planted in rows, such as vegetables and specialty crops.

4. Travelling Gun Irrigation Systems

These systems include a large sprinkler mounted on a wheeled cart, which is pulled along a predetermined path by a cable. The irrigation wheel drive gearbox in this setup helps move the cart at a steady pace, ensuring that the water is evenly sprayed over the field. Travelling gun systems are flexible and can be used on a variety of field shapes and sizes, making them suitable for smaller or irregularly shaped areas.

5. Rotary Irrigation Systems

Rotary systems, which are less common, involve circular moving arms supported by wheels, with the gearbox facilitating the rotation of these arms around the field. This type of irrigation is used in smaller or specialized applications where precise control over irrigation is needed.

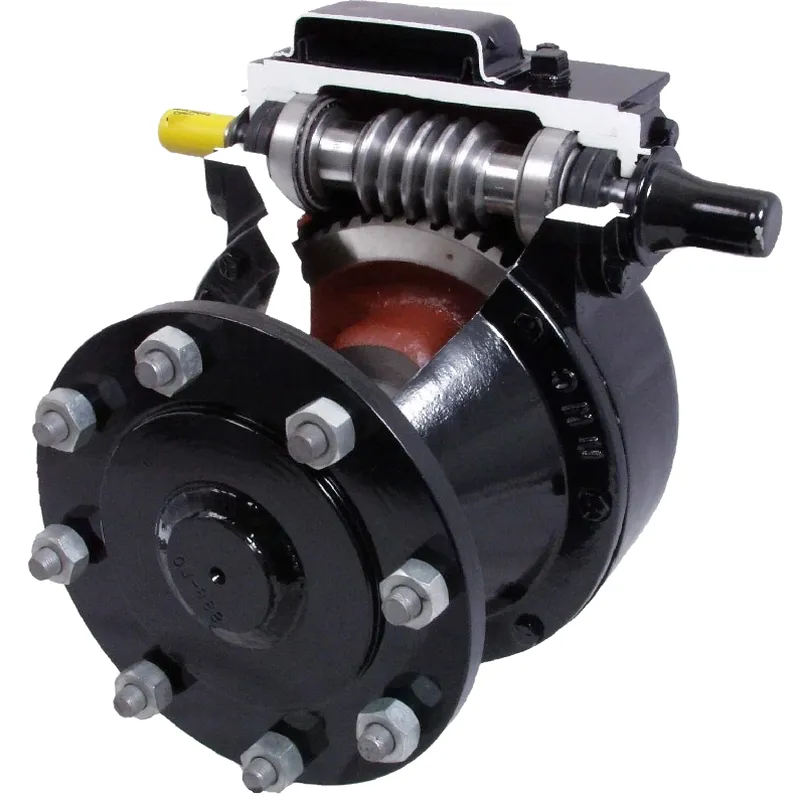

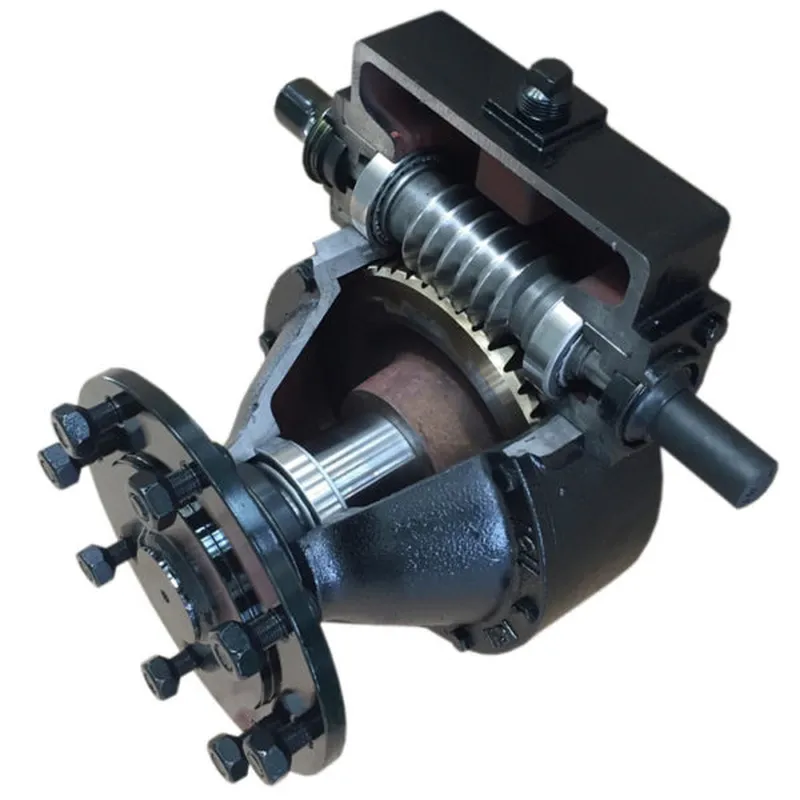

Structural Components of Irrigation Gearbox

The irrigation wheel drive gearbox is composed of several key structural components that work together to deliver its essential functions. Here’s an overview of the main components:

1. Housing: The housing of the gearbox is typically made from durable, weather-resistant materials such as cast iron or aluminum. It serves to protect the internal components from external elements like dust, water, and debris. The housing is also designed to withstand the mechanical stresses and strains experienced during operation, ensuring the longevity of the gearbox.
2. Gears: Inside the gearbox are several gears, including the drive gear and driven gears. These are usually made from hardened steel for durability. The gears are precisely engineered to mesh smoothly and efficiently to transfer torque from the motor to the wheels of the irrigation system. The size and ratio of these gears determine the torque output and speed at which the wheels turn.
3. Bearings: Bearings are crucial for reducing friction and wear between the moving parts of the gearbox. They support the rotational movement of the gears and shafts, allowing for smooth operation. High-quality bearings help in extending the life of the gearbox and maintaining its efficiency.
4. Shaft: The shaft transmits rotational force from the motor to the gears. It is typically made from a strong metal such as steel to withstand the torsional forces it experiences during operation. The shaft must be precisely aligned to ensure efficient power transmission and reduce wear on other components.
5. Seals: Seals are used to prevent lubricants within the gearbox from leaking and to keep out contaminants such as dirt and water. Good sealing is critical for maintaining the performance of the gearbox and preventing premature failure.
6. Lubrication System: Lubrication is vital to reduce wear and heat generation within the gearbox. The system may use grease or oil, depending on the design and requirements of the system. Lubrication helps to ensure that the gears and bearings operate smoothly under various temperature and load conditions.

Working Principle of the Irrigation Gearbox for Center Pivot Irrigation Systems

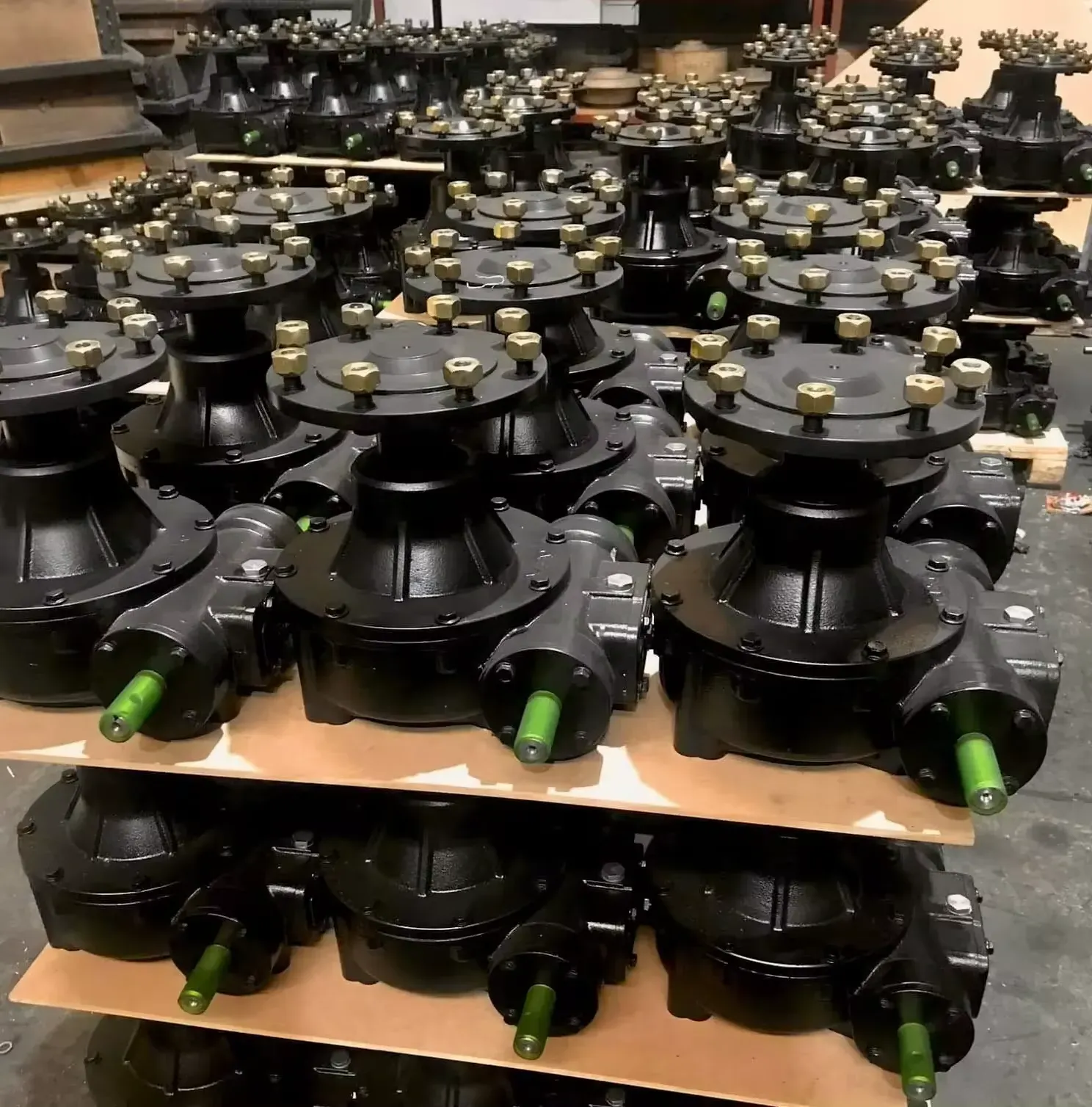

Common Troubleshooting:

Troubleshooting an irrigation wheel drive gearbox can help identify and solve common issues that may impair the performance of center pivot and other types of irrigation systems. Here are some common problems and steps to troubleshoot them:

1. Gearbox Leakage

Leakage of lubricant is a common issue that can cause the gearbox to run dry, leading to increased friction and wear. To troubleshoot, inspect the gearbox for damaged seals or gaskets and check the integrity of the housing. It’s important to replace any worn or broken seals promptly to prevent contaminants like dirt and water from entering the gearbox and to maintain proper lubrication.

2. Unusual Noise or Vibration

Unusual noises or vibrations often indicate misalignment, loose components, or worn gears and bearings. To address this, inspect all mounting bolts and ensure they are tightened properly. Check the alignment between the motor and gearbox and realign if necessary. Also, inspect the gears and bearings for wear and replace them if they show signs of significant deterioration.

3. Gearbox Overheating

Overheating can be caused by insufficient lubrication, overloading, or a failure in the cooling system. Ensure that the gearbox is adequately lubricated with the correct type and amount of lubricant. Check the operational load to make sure it does not exceed the gearbox’s rated capacity. Additionally, ensure that any cooling systems, such as external fans or heat exchangers, are functioning properly.

4. Reduced Output Torque

If the gearbox is not delivering sufficient torque, this could be due to internal slippage, worn gears, or insufficient input power. Check the condition of the internal gears and replace any that are excessively worn. Ensure that the input power from the motor matches the specifications. Adjust the settings or repair any components that compromise the torque transmission.

5. Corrosion and Wear

Exposure to harsh environmental conditions can lead to corrosion and wear. Regularly inspect the gearbox for signs of rust or corrosion, especially on the housing and external parts. Apply protective coatings if necessary, and replace corroded parts to prevent further degradation. Regular cleaning and maintenance are essential to prevent buildup that can lead to premature wear.

6. Seizing of the Gearbox

Gearbox seizing can occur due to severe internal damage, such as broken gears or bearings. This situation requires a complete disassembly and inspection of the gearbox to identify the damaged components. Replace the broken parts and examine the gearbox for any design issues or misalignments that could have led to the failure. After repair, perform a thorough test to ensure smooth operation.

Noise Reduction in Irrigation Wheel Drive Gearboxes

Noise reduction in irrigation wheel drive gearboxes is crucial for extending the lifespan of the equipment and improving the work environment. Here are several strategies to effectively reduce noise:

1. Use of High-Quality Gears

The quality of the gears plays a significant role in the level of noise produced. High-precision gears with fine surface finishes and proper hardening can significantly reduce gear mesh noise. Choosing gears with a helical design rather than straight-cut gears can also help, as the angled teeth engage more smoothly and gradually, distributing the load and reducing sound.

2. Proper Lubrication

Adequate lubrication minimizes friction between moving parts, which is a common source of noise. Using the correct type and amount of lubricant can dampen noise generated by gear mesh and bearing operations. Periodic checks and maintenance should be performed to ensure lubricant levels are maintained and the lubricant has not degraded.

3. Sound Dampening Materials

Incorporating materials that absorb sound within and around the gearbox housing can reduce noise emissions. Materials such as rubber mounts and linings or specialized noise-absorbing panels can be used to encase the gearbox, effectively muffling noise before it escapes into the environment.

4. Precision Assembly and Alignment

Ensuring that all components within the gearbox are aligned correctly and assembled with precision can reduce vibrations and noise. Misalignment can lead to uneven loading on bearings and gears, increasing noise and wear. Regular maintenance checks should include verification of alignment and adjustments as necessary.

5. Anti-Vibration Mounts

Installing the gearbox on anti-vibration mounts can isolate and reduce the transmission of vibrations from the gearbox to the structure of the irrigation system. These mounts absorb vibrations that would otherwise propagate through the system and generate noise.

6. Regular Maintenance

Routine maintenance is vital in preventing noise issues before they start. This includes checking for wear and tear on gears and bearings, ensuring all fasteners are tight, and replacing any worn parts. Maintenance should also involve checking the structural integrity of the gearbox housing and mounts to ensure they haven’t loosened over time, which could lead to increased noise levels.

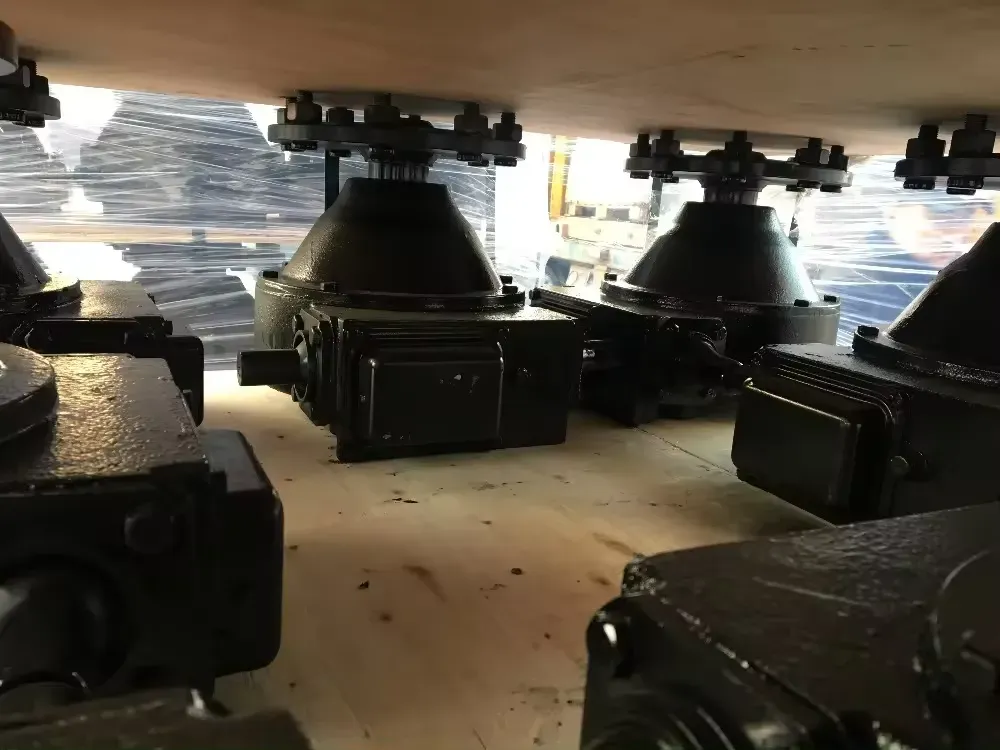

Why Choose Ever-Power’s Irrigation Wheel Drive Gearbox?

Ever-Power Group, a prominent enterprise in the field, specializes in the production and sales of irrigation wheel drive gearboxes. With extensive expertise and a robust production capacity, our company stands at the forefront of agricultural gearbox technology. Our offerings are not limited to a single product; we also produce a variety of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes and more.

Our irrigation wheel drive gearboxes are distinguished by their durability, efficiency, and adaptability to various agricultural settings, making them ideal for different irrigation systems such as center pivot, lateral move, and linear move systems. These gearboxes are designed to withstand harsh environmental conditions, ensuring long-lasting performance and minimal maintenance requirements.

At Ever-Power, we pride ourselves on our deep expertise in the agricultural gearbox sector, which is recognized globally. Our products meet stringent international quality standards, and our commitment to innovation is supported by advanced, state-of-the-art manufacturing facilities. We offer customized solutions tailored to meet specific customer needs, enhancing the functionality and efficiency of their agricultural machinery.

Author: Yjx

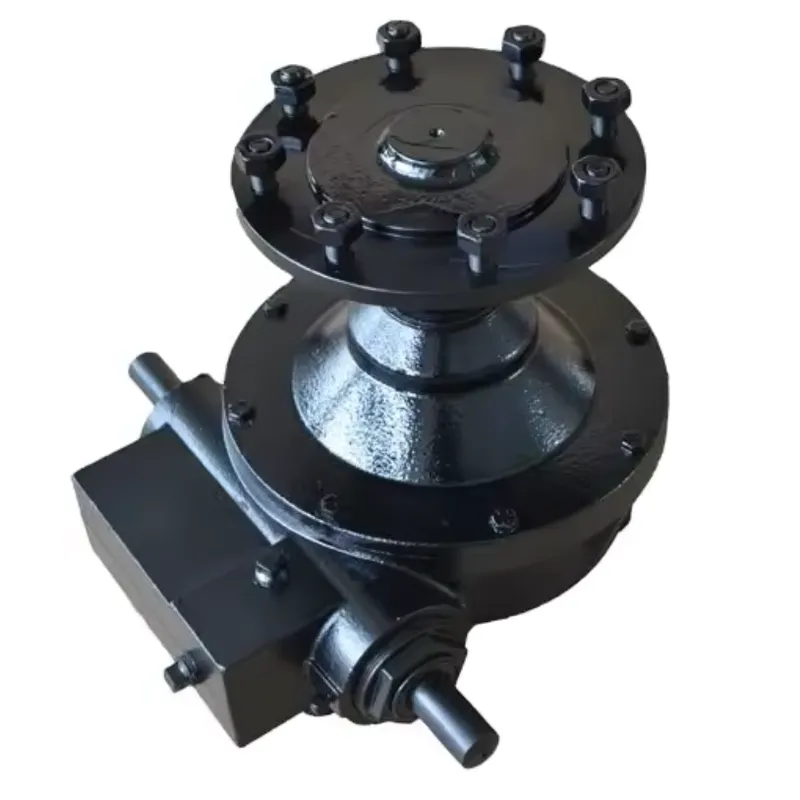

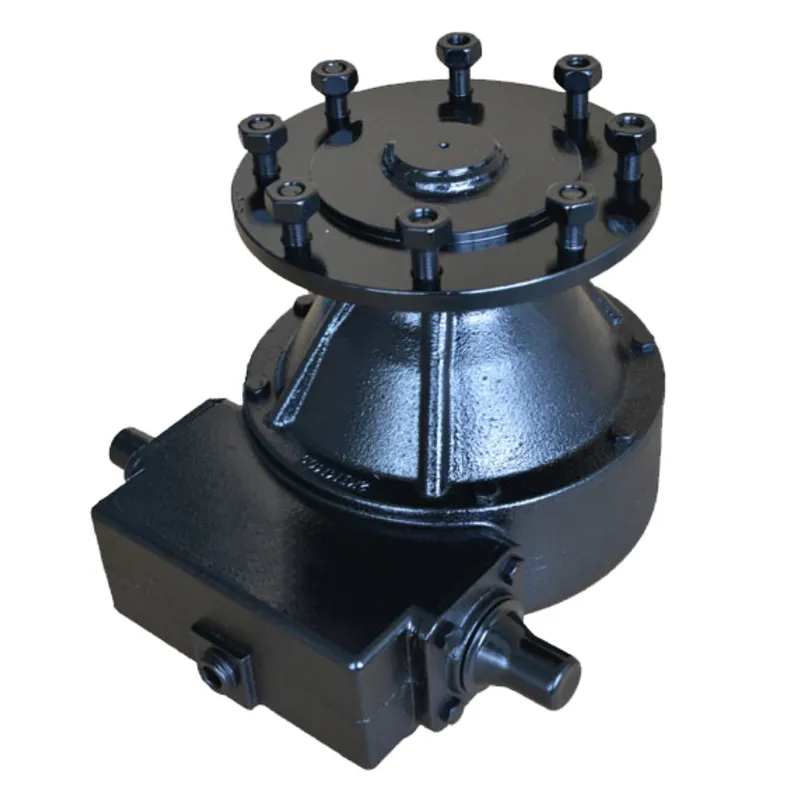

The irrigation wheel drive gearbox is a specialized mechanical device integral to modern irrigation systems, particularly center pivot and lateral move irrigation systems. Its primary function is to facilitate the smooth and efficient movement of the irrigation system across fields, enabling uniform water distribution to crops. The gearbox is robustly constructed to endure harsh outdoor conditions and continuous operation, typically made from durable materials like cast iron or steel.

This gearbox houses a system of gears designed to convert the high-speed rotation of the motor into a lower, more powerful speed at the wheels, providing the torque necessary to move the heavy irrigation equipment. It is engineered to handle the variability of soil, slope, and crop conditions, ensuring consistent operation without requiring excessive maintenance. Additionally, the design often includes protective features such as seals and gaskets to prevent dirt, water, and other contaminants from affecting its performance, thereby extending the life of the gearbox and ensuring reliable operation of the irrigation system. This gearbox is pivotal in maximizing water efficiency and reducing labor costs in large-scale farming operations.

Advantages of the Irrigation Wheel Drive Gearbox

The irrigation wheel drive gearbox offers several key advantages that enhance the efficiency and reliability of irrigation systems, especially in large agricultural settings. Here are some of the primary benefits:

1. Increased Efficiency: The gearbox optimizes the transfer of power from the motor to the wheels of the irrigation system, ensuring effective movement with minimal energy waste. This results in more efficient water distribution and reduced energy consumption.
2. Durability: Constructed from high-quality materials such as hardened steel or cast iron, these gearboxes are designed to withstand the rigors of outdoor agricultural environments. They are resistant to weather, corrosion, and the abrasive effects of dirt and sand, which contributes to their longevity.
3. Low Maintenance: The robust design and protective features like seals and gaskets minimize the entry of contaminants into the gearbox. This reduces the need for frequent maintenance, thereby lowering operating costs and minimizing downtime.
4. High Torque Output: Gearboxes are engineered to provide a high torque output suitable for moving heavy irrigation equipment across various terrains. This capability is crucial for maintaining a consistent speed and ensuring uniform water distribution across the fields.
5. Versatility: These gearboxes are adaptable to various types of irrigation systems, including center pivot, linear, and lateral move systems. This versatility makes them suitable for a wide range of agricultural applications and crop types.
6. Improved Water Management: By enabling precise control over the movement of irrigation systems, these gearboxes help in achieving better water distribution. This precision contributes to optimal crop hydration and can help in conserving water—a critical factor in regions prone to drought.

Common Applications:

The irrigation wheel drive gearbox is essential in various agricultural irrigation systems, enhancing their efficiency and effectiveness in water distribution. Here are some common applications:

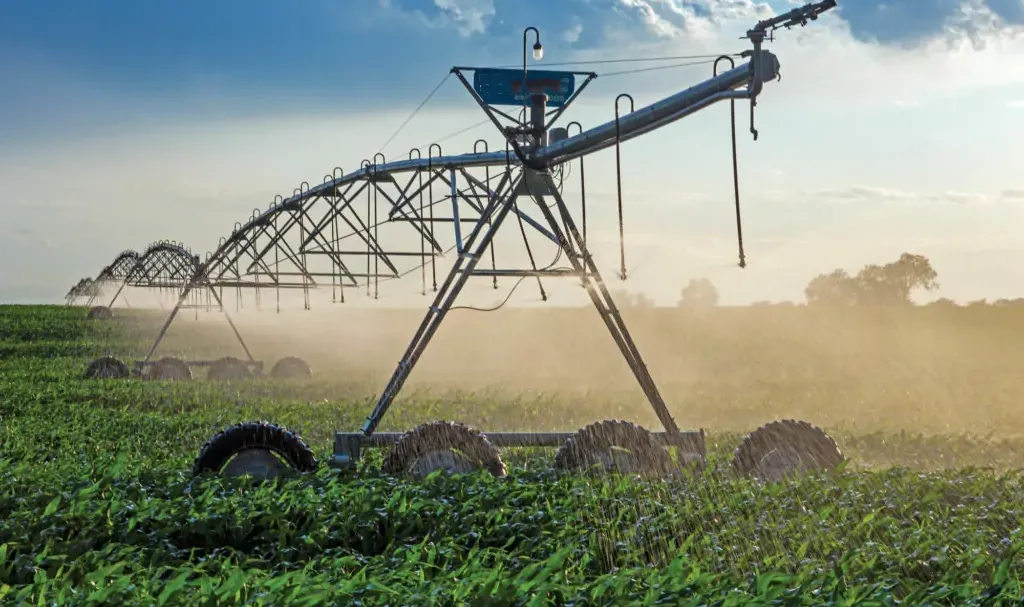

• Center Pivot Irrigation Systems: These gearboxes are pivotal in center pivot irrigation systems, where they help rotate the long spans of the irrigation structure around a central pivot point. This allows for a circular area of the field to be irrigated efficiently, providing even water distribution over large tracts of land.
• Lateral Move (Linear) Irrigation Systems: In lateral move systems, the gearbox facilitates the straight, parallel movement of the irrigation equipment across the field. This system is ideal for rectangular fields and ensures that water is distributed uniformly across the entire area.
• Wheel-Line (Side Roll) Irrigation Systems: Gearboxes are used in wheel-line systems to move portable pipelines equipped with sprinklers across fields. This system is suitable for smaller fields or irregularly shaped areas that are not ideal for pivot systems.
• Traveling Gun Systems: For traveling gun systems, the gearbox helps pull a high-capacity sprinkler mounted on a wheeled cart through the field. This setup is useful for varying soil types and topographies where traditional systems might not be as effective.
• Sports Field and Golf Course Irrigation: Beyond traditional agriculture, these gearboxes are also used in the irrigation systems of sports fields and golf courses, where precise water distribution is crucial for maintaining turf health and appearance.
• Horticulture and Nursery Operations: In horticulture and nursery settings, wheel drive gearboxes help in the precise irrigation necessary for the sensitive cultivation of plants and flowers, ensuring that delicate plants receive the right amount of water without wastage.

How Does the Irrigation Wheel Drive Gearbox for Irrigation System Work?

The irrigation wheel drive gearbox for an irrigation system plays a crucial role in converting and transmitting mechanical power from the motor to the wheels, enabling the system to move and distribute water evenly across agricultural fields. Here’s how it works in a step-by-step manner:

1. Power Source: The process begins with a power source, typically an electric motor or a hydraulic system, which provides the initial mechanical energy necessary to drive the irrigation system.
2. Transmission of Power: This power is transmitted to the gearbox. The gearbox’s primary function is to adjust the power output from the motor to a more usable form for the irrigation system. It does this by altering the torque and speed transmitted to the wheels.
3. Gear Reduction: Inside the gearbox, there are several gears of different sizes. When the motor rotates the input shaft on which the smaller gear (pinion) is mounted, it engages the larger gears (bull gears). This setup reduces the speed of rotation while simultaneously increasing the torque. This process is known as gear reduction.
4. Increasing Torque: The increase in torque is crucial because the irrigation equipment, especially in systems like center pivots or lateral moves, is quite heavy and requires substantial force to move smoothly across fields. The gearbox ensures that the motor’s high-speed, low-torque output is converted into a low-speed, high-torque output suitable for driving heavy loads.
5. Output Transmission: The transformed output from the gearbox is then transmitted to the wheels of the irrigation system via drive shafts. This allows the wheels to turn at a controlled, steady rate, which is essential for the smooth operation of the system.
6. Movement Control: As the wheels rotate, they propel the irrigation system—whether a center pivot, lateral move, or other types—across the field. The movement can be precisely controlled to ensure even and efficient distribution of water. The speed and direction of the movement can typically be adjusted based on the field’s size and the water requirements of the crops.
7. Uniform Water Distribution: By controlling the speed at which the irrigation system moves and the rate at which water is distributed, the gearbox helps achieve a uniform application of water. This is essential for ensuring all parts of the field receive an adequate amount of water without over-irrigation or under-irrigation.

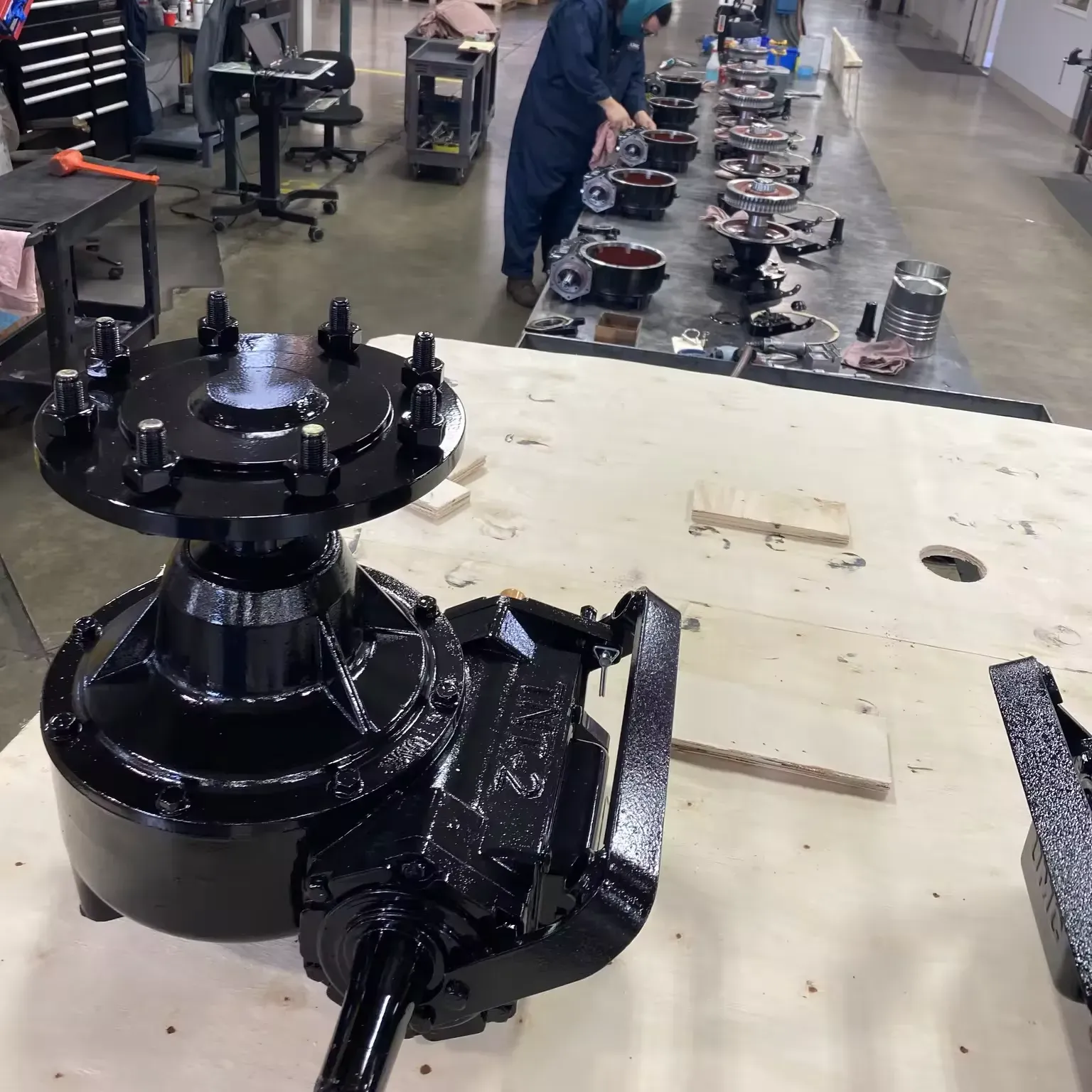

Irrigation Gearbox Assembly:

Installing an irrigation wheel drive gearbox in an irrigation system is a critical process that ensures the effective and efficient operation of the irrigation equipment. Here’s a step-by-step guide on how to install this gearbox:

• Preparation and Safety: Begin by ensuring that the irrigation system is powered off and fully disconnected from any power source to prevent accidents. Gather all necessary tools and equipment for the installation, such as wrenches, screwdrivers, and a lifting device if needed. Review the manual’s installation guidelines thoroughly to familiarize yourself with the gearbox specifications and requirements.
• Mounting Location: Identify the mounting location on the irrigation system where the gearbox will be installed. This is typically at the base of a tower for center pivot systems or along the drive train in lateral move systems. Ensure that the area is clean and free from debris, dirt, or any obstructions that could affect the installation.
• Alignment and Positioning: Carefully position the gearbox in place, making sure it aligns correctly with the drive shaft or motor output shaft. Proper alignment is crucial to prevent mechanical stress and ensure efficient power transfer from the motor to the gearbox. Use a level and measuring tools to check the alignment.
• Securing the Gearbox: Secure the gearbox to its mounting bracket using bolts and nuts provided with the unit. Tighten all fasteners to the specifications recommended by the manual to ensure the gearbox is firmly and securely attached. Double-check all fasteners and make any necessary adjustments to avoid any movement or vibration during operation.
• Connecting Drive Shafts: Connect the input and output drive shafts to the gearbox. Ensure that these connections are tight and secure. Use couplings as required to join the shafts to the gearbox. It’s essential that these connections are precise to avoid misalignment, which can lead to premature wear or failure.
• Final Inspection and Testing: Once the gearbox is installed, conduct a thorough inspection to ensure that every component is properly fitted and that there are no loose parts. Check for any potential issues like oil leaks or misaligned parts. Finally, reconnect the power and run the irrigation system to test the new gearbox. Monitor the system for any unusual noises or vibrations, and adjust as necessary.

Irrigation Gearbox Disassembly:

Disassembling an irrigation wheel drive gearbox is a precise and methodical process, important for maintenance, repairs, or replacement. Here are the steps to safely and effectively disassemble this type of gearbox:

1. Preparation and Safety Measures: Before starting, ensure the irrigation system is fully powered down and disconnected from any power source. Clear the area around the gearbox of any tools, debris, or obstacles that could interfere with the process.
2. Drain Gearbox Oil: Position an oil catch basin under the gearbox. Remove the oil drain plug and allow all the lubricating oil to drain out completely. This step prevents any messy spills during the disassembly and reduces the weight of the gearbox, making it easier to handle.
3. Detach the Gearbox from the Irrigation System: Use appropriate tools to loosen and remove the bolts or fasteners securing the gearbox to the irrigation system. Depending on the design, you may need to first detach the drive shafts or other connecting components that link the gearbox to the motor and the wheels.
4. Remove External Components: Begin by removing any external components attached to the gearbox, such as sensors, guards, or auxiliary drives. Label each part and take notes on their positioning to facilitate easier reassembly later.
5. Open the Gearbox Housing: Once external components are removed and the gearbox is detached, carefully open the housing. This may involve removing bolts or screws that secure the gearbox cover. Be cautious when lifting the cover as some components inside may be under tension or heavy.
6. Disassemble Internal Components: With the housing open, you can now access the internal gears and bearings. Carefully remove each component, keeping track of their order and orientation. It’s advisable to lay them out on a clean surface in the order they were removed. Inspect each part for wear or damage as you go.

Choose the Right Irrigation Gearbox for Center Pivot Irrigation Systems

Choosing the right irrigation gearbox for center pivot irrigation systems is crucial for ensuring efficient, reliable operation and longevity of your irrigation setup. Here are key factors and considerations to guide you in selecting the most appropriate gearbox:

• System Requirements: Understand the specific needs of your center pivot irrigation system. This includes the length of the pivot, the total weight of the system, and the type of crops being irrigated. These factors determine the torque and power requirements of the gearbox.
• Gearbox Torque Rating: The torque rating of the gearbox is a critical factor. It must be capable of providing enough torque to move the pivot arms across various field conditions without straining. Typically, the manufacturer will provide specifications for recommended torque based on the size and type of the irrigation system.
• Durability and Material Quality: Choose gearboxes made from high-quality, durable materials capable of withstanding the harsh environmental conditions typical of agricultural settings. Gearboxes with corrosion-resistant coatings and robust sealing technologies offer added durability against water, dirt, and other contaminants.
• Efficiency: Look for gearboxes with high-efficiency ratings. Efficient gearboxes will use less power to operate, which can significantly reduce energy costs over the lifespan of the irrigation system.
• Maintenance Needs: Consider the maintenance requirements of the gearbox. Models that are designed for easy access to internal components and require less frequent lubrication can reduce maintenance time and costs. Check if the manufacturer provides clear maintenance guidelines and easy-to-source replacement parts.
• Compatibility and Installation: Ensure the gearbox is compatible with your existing system in terms of size, mounting configuration, and shaft connections. An incompatible gearbox can lead to inefficient operation or damage to the system.

Why Choose Ever-Power’s Irrigation Wheel Drive Gearbox?

Ever-Power is a leading company specializing in the production and sales of irrigation wheel drive gearboxes. Our company boasts a large-scale operation with advanced production facilities and a highly skilled R&D team. With years of industry experience and continuous technological innovation, we are dedicated to providing efficient and durable transmission solutions for global agriculture.

Our irrigation wheel drive gearbox products are renowned for their exceptional performance and reliability. Manufactured with high-strength materials and precise machining processes, our gearboxes are designed to withstand harsh agricultural environments and ensure stable operation over long periods. The efficient transmission design ensures smooth movement of irrigation systems, enhancing water utilization efficiency and reducing energy costs. These gearboxes are widely used in center pivot irrigation systems, lateral move systems, and other modern agricultural irrigation equipment, helping farmers achieve precise irrigation and increased yields.

As an expert in the field of irrigation wheel drive gearboxes, Ever-Power enjoys a high reputation in the global market. We have achieved multiple international certifications and offer comprehensive customization services to meet diverse customer needs. Our production facilities are equipped with the latest technology to ensure consistent product quality, and our robust after-sales service system provides reliable support to our customers.

In addition to Irrigation Wheel Drive Gearboxes, Ever-Power also offers a wide range of agricultural gearboxes and PTO shafts, including rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn header gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, irrigation reel gearboxes, manure spreader gearboxes, and rotary rake gearboxes. No matter what agricultural equipment transmission solution you need, we are here to provide you with the best products and services.
