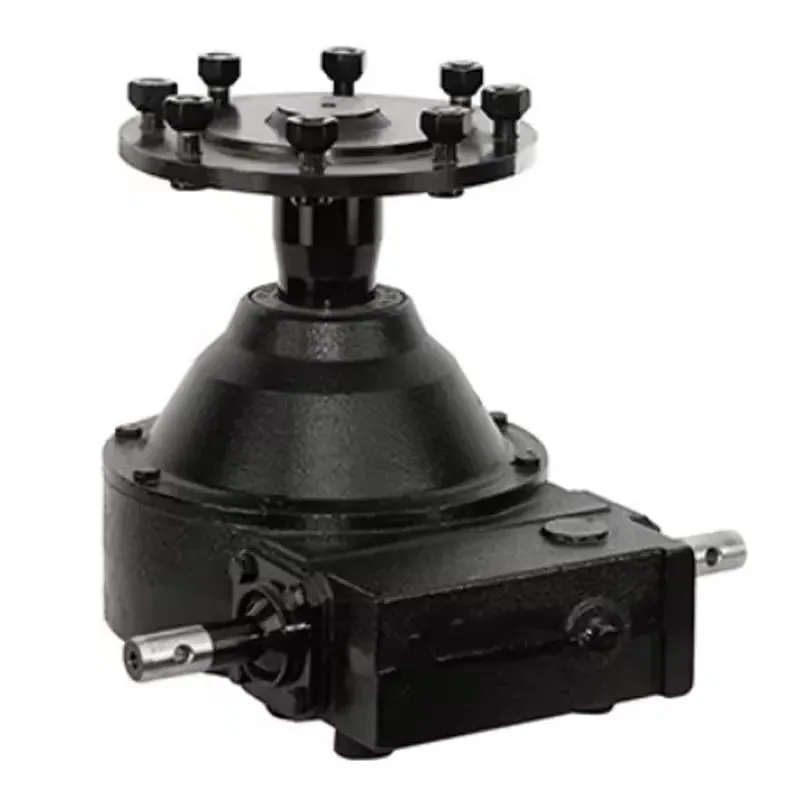

Working Principles of Irrigation Wheel Drive Gearboxes
In modern irrigation systems, the irrigation wheel drive gearbox plays a crucial role in providing the necessary movement for center pivot and lateral move irrigation setups. Its primary function is to convert mechanical energy into the motion required to drive the wheels of the irrigation system, ensuring even water distribution across the fields.
Power Source Connection
The process begins with the gearbox connecting to a power source, typically an electric motor or a hydraulic system, which supplies the rotational energy necessary to drive the gearbox. This connection is made via the input shaft of the gearbox.
Transmission of Mechanical Energy
When the power source is activated, it rotates the input shaft of the gearbox. This shaft is directly connected to the internal gearing system of the gearbox. The gearbox’s internal gears are designed to modify the characteristics of the input mechanical energy, reducing the rotational speed while increasing the torque.
Conversion Process
The gearing system within the gearbox is crucial for the conversion process. Depending on the design (bevel gears, worm gears, etc.), the output precisely adjusts to meet the specific requirements of the irrigation system. Through this gear arrangement, the high-speed, low-torque rotation from the motor or hydraulic system is converted into low-speed, high-torque rotation.
Output Delivery
The transformed mechanical energy, now optimized for the application, is delivered to the wheels of the irrigation system via the gearbox’s output shaft. This increased torque facilitates the movement of the irrigation system, driving it either in a circular path around a central pivot or in a straight line in lateral move systems.
Movement and Water Distribution
As the gearbox drives the wheels, the irrigation system moves across the field. Simultaneously, water is pumped through the system’s pipes and emitted through sprinklers or drippers mounted along the length of the system. The motion of the system, controlled by the gearbox, ensures an even and efficient distribution of water across the crops, maximizing coverage and minimizing water waste.
Installation Steps of Irrigation Wheel Drive Gearbox for Irrigation System
Installing an irrigation wheel drive gearbox is a pivotal step in setting up or maintaining a center pivot or lateral move irrigation system. This process ensures that the irrigation system moves smoothly and efficiently across the field, providing even water distribution.
Positioning the Gearbox
Position the gearbox where it will be mounted on the irrigation system, aligning it with the wheel hub where the drive will occur.
Mounting the Gearbox
Secure the gearbox to its mounting point using bolts provided, typically on the drive wheel assembly of the irrigation system.
Connecting the Power Source
Connect the drive shaft from the power source to the input shaft of the gearbox. Ensure the connection is tight and secure.
Lubricate the Gearbox
Fill the gearbox with the appropriate lubricant as specified by the manual. Apply grease to any additional moving parts associated with the gearbox installation.
Inspect the Installation
Double-check all connections, bolts, and lubrication points to ensure everything is properly installed and secure. Conduct a test run of the irrigation system to verify correct operation.
Testing and Adjust
Manually turn the output shaft of the gearbox to ensure no binding or unusual resistance. Perform a test run and monitor for any abnormal noises or vibrations. Check for loose bolts and ensure all connections are tight.
Troubleshooting Common Issues of Irrigation Wheel Drive Gearbox
Troubleshooting common issues with an irrigation wheel drive gearbox is crucial for maintaining the efficiency and reliability of your irrigation system. Here are some common problems encountered with these gearboxes and practical solutions:
Gearbox Does Not Engage or Drive the Wheels
Check if the power source is properly connected and functioning. Ensure the PTO shaft is correctly aligned and securely attached.
Excessive Noise or Vibration
Inspect gears and bearings for wear or damage. Ensure the gearbox is securely mounted and all bolts are tightened.
Leaking Gearbox Oil
Inspect for damaged seals and cracks in the housing. Refill or replace oil as needed and ensure proper lubrication.
Gearbox Overheating
Check oil level and quality, adjust load if necessary, and ensure adequate ventilation around the gearbox.
Reduced Efficiency in Power Transmission
Replace worn parts, confirm gear ratio suitability, and realign gearbox with the wheel drive assembly.
Why Choose EVER-POWER’s Irrigation Wheel Drive Gearbox?
EVER-POWER is a prominent manufacturer of high-performance irrigation wheel drive gearboxes for a variety of applications. Our technical staff can reconfigure an existing design or assist you in designing a custom irrigation wheel drive gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an irrigation gearbox.
Professionalism
EVER-POWER prides itself on its professionalism in delivering high-quality products and services to customers worldwide.
International Certifications
Our products meet international standards and certifications, ensuring reliability and performance.
Customized Services
We offer customized solutions to meet specific customer requirements, tailoring products to fit unique applications.
Production Facilities
Our state-of-the-art production facilities utilize advanced technology to manufacture top-of-the-line gearboxes.
After-Sales Services
We provide comprehensive after-sales support, including maintenance services and technical assistance to ensure customer satisfaction.
