What Are Beveloid Gears?
Beveloid gears are a special type of gear with a conical shape, similar to bevel gears but with helical teeth, allowing them to transmit motion between intersecting or misaligned shafts. This unique design offers several benefits, including smoother operation and reduced noise, making them a popular choice in various industries like automotive, aerospace, and manufacturing.
Why Choose Our High-Quality Beveloid Gears?
We offer top-notch beveloid gears with the following features:
- High durability and strength
- Excellent heat resistance
- Smooth operation with low noise
- Ability to transmit high torque
- Customizable to fit specific applications
Different Types of Bevel Gears and Their Features
Straight Bevel Gear
Straight bevel gears have straight and tapered teeth and are used in applications where smooth operation is not critical.

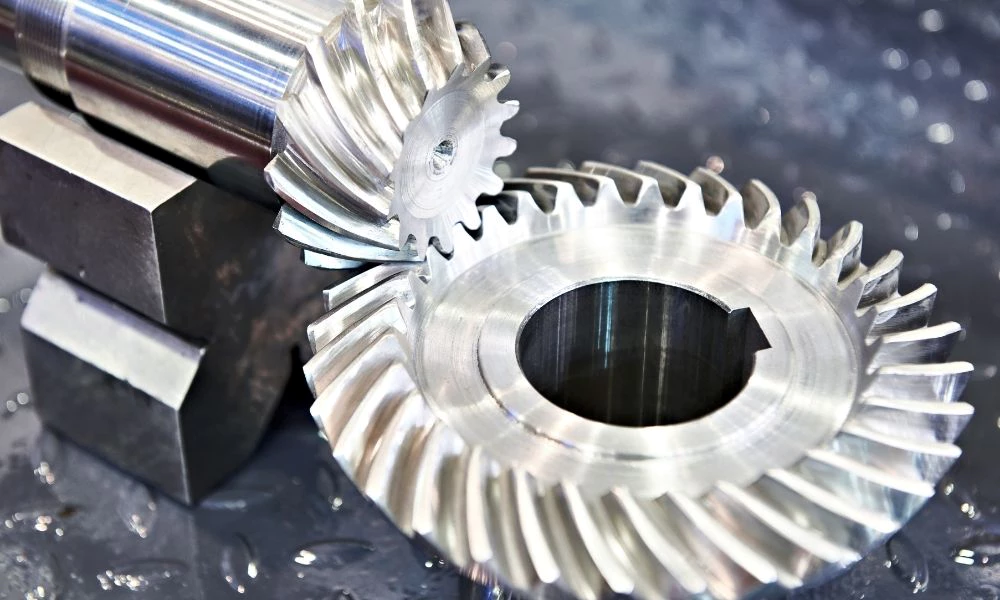

Spiral Bevel Gear
Spiral bevel gears have curved and oblique teeth, providing smooth and quiet operation, ideal for high-speed applications.
Zerol Bevel Gear
Zerol bevel gears are a hybrid of straight and spiral bevel gears. They have straight teeth like straight bevel gears but are curved like those of spiral bevel gears.
Spiral Zerol Bevel Gear
Spiral Zerol bevel gears are a type of Zerol bevel gear, where the teeth are curved along both the length and height, providing even smoother operation.
Selecting the Right Bevel Gears
Choosing the right bevel gear requires understanding several parameters:
- Module: This refers to the pitch diameter divided by the number of teeth. It affects the gear’s size and strength.
- Number of Teeth: This influences the gear’s speed and torque capabilities.
- Gear Ratio: The ratio between the input and output speeds of the gear system.
- Pitch: The distance between corresponding points on adjacent teeth.
- Gear Material: This affects the gear’s durability, strength, and heat resistance.
- Precision Grade: Determines the accuracy of the gear’s dimensions.
- Load Capacity: The maximum load the gear can handle without failure.
Manufacturing Process of Bevel Gears
The production of bevel gears involves several steps:
- Design and Engineering: The gear is designed based on the application’s requirements.
- Material Selection: The appropriate material is chosen based on the gear’s expected load and environmental conditions.
- Cutting and Machining: The gear is cut and machined into its basic shape.
- Heat Treatment: The gear is heat-treated to increase its hardness and durability.
- Cleaning and Inspection: The gear is cleaned and inspected to ensure it meets the required specifications.
- Assembly and Machining of Components: The gear is assembled with other components and further machined as needed.
- Surface Treatment and Coating: The gear is treated and coated to improve its resistance to wear and corrosion.
- Final Inspection and Quality Control: The finished gear is inspected one last time to ensure it meets all quality standards.
Other Gear and Gearbox Products
We also offer a wide range of gear and gearbox products, including worm gear, helical gear, spur gear, bevel gear, gear rack, worm gearbox, planetary gearbox, and helical gearbox.
About Our Company
We’re proud to offer a range of high-quality gear solutions tailored to our customers’ specific needs. Our advanced production and inspection equipment, including CNC gear grinding machine, gear measuring machine, CNC gear shaper, machine center, and CMMS, ensure precise and efficient manufacturing. We also provide excellent after-sales service to guarantee customer satisfaction. Partner with us today for reliable, high-quality gear solutions.
