What is a Flail Mower Gearbox Assembly?

A Flail Mower Gearbox Assembly is a crucial component in a flail mower, a type of agricultural equipment used for heavy-duty mowing and clearing tasks. This assembly is responsible for converting the power received from the tractor into the mechanical action needed to drive the mower’s cutting mechanism.

Advantages of the Flail Mower Gearbox Assembly

The Flail Mower Gearbox Assembly has several advantages:

• Efficient Power Transfer: It ensures efficient and controlled transmission of power from the tractor to the mower’s cutting mechanism.
• Torque Amplification: It amplifies the torque for effective mowing and cutting through heavy vegetation.
• Speed Reduction: It reduces the speed of the input rotation to match the optimal speed required for the mower to operate effectively.
• Durability: It is designed to withstand the vibrational forces and shock loads that occur during mowing.
• Safety: It often includes safety features to minimize damage to the mower and the tractor in case of obstructions.



• Customizability: We can produce a custom Flail Mower Gearbox Assembly to meet specific requirements or applications.

Applications of the Flail Mower Gearbox Assembly

The Flail Mower Gearbox Assembly finds applications in:

• Agriculture: For mowing fields, orchards, vineyards, and other agricultural lands.
• Forestry: For clearing woodland areas or controlling vegetation growth.
• Parks and Recreation: For maintaining golf courses, parks, and sports fields.
• Highway Maintenance: For managing roadside vegetation and clearing sightlines.
• Landscaping: For maintaining commercial and residential landscapes.
• Construction: For clearing land during the initial stages of construction.

Working Principle of the Flail Mower Gearbox

The working principle of a flail mower gearbox is centered around transmitting power from the tractor to the flail mower’s cutting mechanism in an efficient and controlled manner. Here’s a closer look at how it works:

1. Power Input from the Tractor: The process begins with the tractor’s PTO providing rotational energy to the flail mower gearbox.
2. Speed Reduction and Torque Amplification: Inside the gearbox, this input rotational energy, which is typically high in speed but low in torque, encounters a series of gears or a gear train.
3. Transmission of Adjusted Power: After the gearbox has modified the power to the optimal speed and torque, it transmits this power to the flail mower’s cutting mechanism.
4. Cutting Action: The flails strike the ground vegetation with sufficient force to cut it cleanly.
5. Safety Mechanisms: Safety features may include shear pins or slip clutches that prevent damage to the gearbox and the tractor by breaking or disengaging if the mower hits an obstruction that stops the flails suddenly.

Structural Components of the Flail Mower Gearbox

The flail mower gearbox is a complex component that plays a crucial role in the operation of a flail mower. Here’s a breakdown of the key structural components:

1. Housing: Provides structural support and protects the internal components.
2. Input Shaft: Transfers the rotational energy from the tractor to the gearbox.
3. Gears: Convert the high-speed, low-torque input from the tractor into low-speed, high-torque output.
4. Bearings: Support the shafts and gears while allowing them to rotate smoothly.
5. Output Shaft: Drives the flails at adjusted speed and torque.
6. Seals: Prevent the ingress of dirt and debris and keep the lubricant inside.

Proper Maintenance of the Flail Mower Gearbox

Proper maintenance of a flail mower gearbox is crucial for ensuring the longevity and optimal performance of the equipment. Here are key maintenance tasks and best practices:

1. Check and Maintain Oil Levels: Regularly check the gearbox oil level and change it as necessary.
2. Inspect and Replace Seals: Regularly inspect the gearbox for oil leaks and replace any damaged seals promptly.
3. Check and Tighten Fasteners: Regularly check all bolts, nuts, and other fasteners for looseness.



4. Inspect Gears and Bearings: Periodically inspect the gears and bearings for signs of wear or damage.
5. Keep the Gearbox Clean: Clean the exterior of the gearbox after each use.
6. Lubricate External Moving Parts: Apply grease as recommended by the manufacturer to external components that require regular lubrication.

Agricultural PTO Shaft for Flail Mower Gearbox

Choosing the right PTO shaft for your flail mower gearbox is essential. Here are key factors to consider:

1. Compatibility with Tractor and Mower: Ensure the PTO shaft is rated for the PTO speed of your tractor and matches the spline configuration of your tractor’s PTO output and the flail mower’s input.
2. Length and Extendibility: The length of the PTO shaft must be appropriate for the distance between the tractor’s PTO and the flail mower’s input shaft when connected.
3. Safety Features: Ensure the PTO shaft comes with safety guards and includes a shear pin or a slip clutch as a safety feature.
4. Torque Capacity: The PTO shaft should be capable of handling the torque generated by your tractor and required by your flail mower.
5. Durability and Maintenance: Choose a PTO shaft made from high-quality materials to ensure durability and longevity and is easy to maintain.

Why Choose EVER-POWER’s Flail Mower Gearbox?

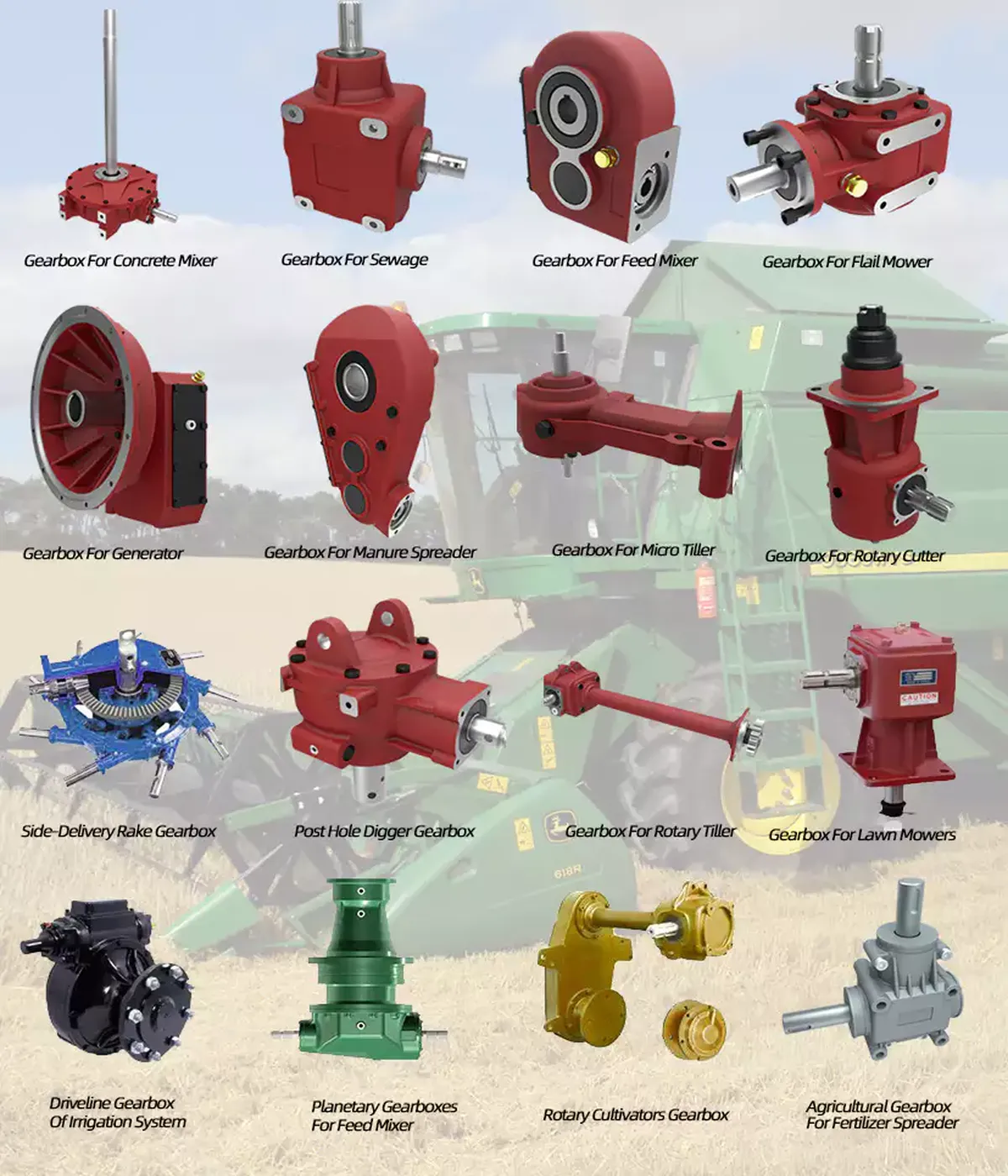

EVER-POWER is a prominent manufacturer of high-performance agricultural gearboxes for a variety of applications. Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard design does not fit your application. We offer many types of agricultural gearboxes and PTO shafts, suitable for various applications. If you want to buy agricultural gearboxes, please get in touch with us.

About EVER-POWER

EVER-POWER is an internationally certified company known for its professionalism and quality of products. We offer customized services to meet specific requirements. Our production facilities are equipped with advanced machinery to ensure the highest quality products. We provide exceptional after-sales services, ensuring our customers receive the best support and assistance. Trust EVER-POWER for reliable and efficient agricultural gearboxes.

Author: Yjx
