Introduction to Tractor PTO Driven Square Baler for Nutrient Cycling in Crop Systems

Tractor PTO Driven Square Baler for Nutrient Cycling in Crop Systems is an essential piece of agricultural equipment used for baling hay, straw, or cotton into compact bales for storage and transport. This innovative machinery plays a crucial role in nutrient cycling within crop systems, ensuring efficient harvesting and processing of agricultural products. With its powerful capabilities and advanced features, the Tractor PTO Driven Square Baler is a game-changer for farmers looking to enhance their operations.

Advantages of Tractor PTO Driven Square Baler

1. Increased Efficiency: The Tractor PTO Driven Square Baler streamlines the baling process, allowing farmers to produce more bales in less time.

2. Cost Savings: By automating the baling process, farmers can reduce labor costs and increase overall productivity.

3. Versatility: This equipment is versatile and can handle a variety of crops, making it a valuable investment for farmers with diverse agricultural operations.

4. Improved Bale Quality: The Tractor PTO Driven Square Baler produces consistent and well-shaped bales, ensuring high-quality output every time.

5. Durability: Built with sturdy materials and advanced technology, this baler is designed to withstand the rigors of heavy-duty agricultural work.

6. Environmental Benefits: By compacting crop residues into bales, farmers can effectively recycle nutrients back into the soil, promoting sustainable farming practices.

Applications of Tractor PTO Driven Square Baler

1. Hay Baling: The Tractor PTO Driven Square Baler is commonly used for baling hay, providing farmers with an efficient way to store and transport this essential feed for livestock.

2. Straw Baling: Farmers can use this baler to bale straw for various agricultural purposes, such as animal bedding, mulching, or erosion control.

3. Cotton Baling: The Tractor PTO Driven Square Baler is also suitable for baling cotton, helping farmers process this valuable crop for further use or sale.

4. Nutrient Cycling: By baling crop residues, farmers can recycle nutrients back into the soil, enriching it and promoting healthy crop growth.

5. Storage and Transport: The compact bales produced by this baler are easy to store and transport, providing farmers with a convenient solution for crop management.

6. Livestock Feed: Baled hay and straw can be used as nutritious feed for livestock, ensuring their health and well-being.

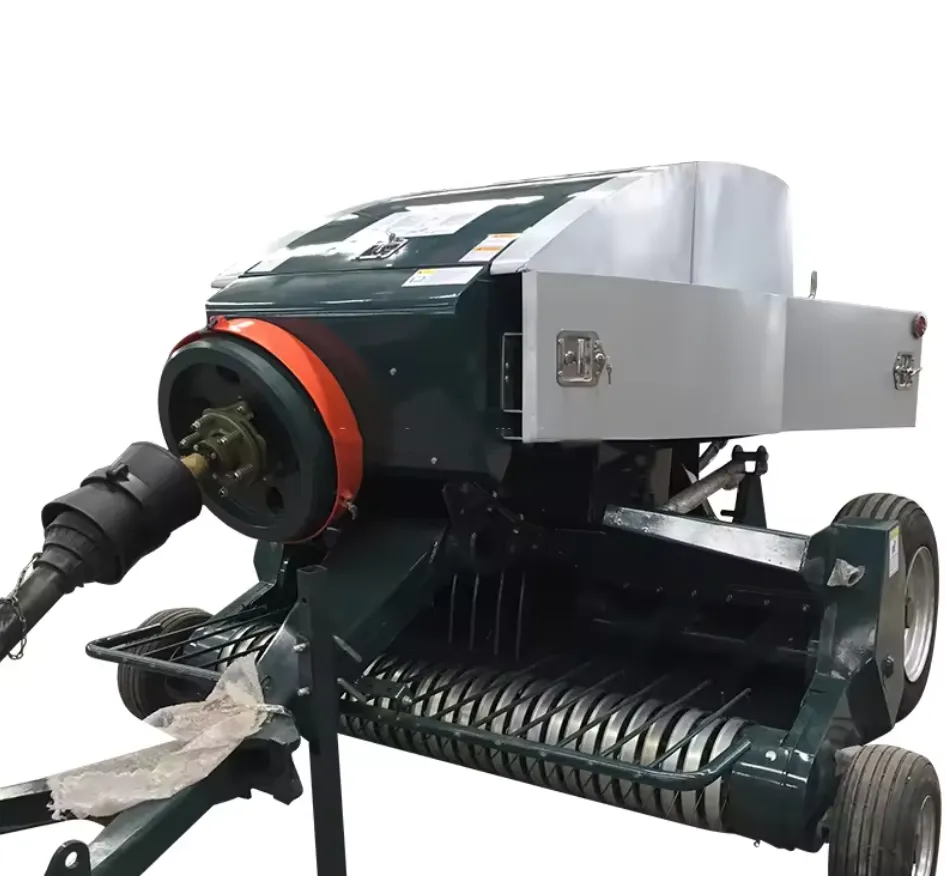

Tractor PTO Driven Square Baler Structural Components

The structural components of a tractor PTO driven square baler are crucial for its operation, ensuring the efficient baling of agricultural products like hay, straw, or cotton. Here’s a breakdown of these key components:

1. PTO Shaft: The PTO shaft connects the baler to the tractor, transferring power from the tractor’s engine to the baler’s operational mechanisms.
2. Pickup Mechanism: This component gathers the crop from the ground. It includes pickup tines or teeth that rotate, picking up the crop and feeding it into the baler.
3. Feeding System: After the pickup, the feeding system moves the gathered crop into the baling chamber. In some balers, this system may include augers or a stuffer mechanism to ensure even and consistent feeding.
4. Baling Chamber: The heart of the baler, where the crop is compacted into square or rectangular bales. The chamber size can often be adjusted to produce bales of different sizes.
5. Plunger and Knotters: Within the baling chamber, a reciprocating plunger compresses the crop against the bale being formed. Knotters then tie the bale with twine or wire to maintain its shape after ejection.
6. Knotter Mechanism: A complex system that ties the bale securely with twine or wire. It includes needles to carry the twine or wire around the bale and a knotter to tie and cut the twine or wire.
7. Ejection System: Once the bale is formed and tied, the ejection system pushes it out of the baler. This can be a simple mechanical gate that opens to let the bale drop by gravity or a powered push-off mechanism.

Working Principle of Tractor PTO Driven Square Baler

The tractor PTO driven square baler works through a sequence of mechanical processes to gather, compress, and bind hay into square or rectangular bales. This process is highly efficient, turning loose hay into compact, easily manageable bales for storage and transport. Here’s a step-by-step overview of how it operates:

1. Power Transfer: The baler is attached to a tractor, from which it derives its power. The PTO shaft of the tractor transfers rotational power to the baler’s drive system, powering the baler’s mechanisms.



2. Hay Pickup: As the tractor moves the baler across the field, a pickup mechanism on the front of the baler, consisting of rotating bars or tines, lifts the cut hay from the ground and feeds it into the baler.
3. Feeding and Compression: The hay is fed into a compression chamber, where a reciprocating plunger compresses the hay into a dense, rectangular shape. This compression chamber is where the hay is formed into bales.
4. Bale Formation and Binding: Once the hay is compressed to the desired density and size, the baler wraps the bale with twine or wire to hold its shape. This is done using a knotting device that automatically ties and cuts the binding material around the bale.
5. Ejection: After the bale is securely tied, it is ejected from the rear of the baler onto the ground, ready for collection. Some balers may have a bale chute or kicker to help direct the ejected bale away from the machine.

Installation Operation of the Tractor PTO Driven Square Baler

Installing a PTO (Power Take-Off) driven hay square baler to a tractor requires careful attention to detail to ensure safety and operational efficiency. Below is a step-by-step guide on how to properly attach and prepare your baler for work:

1. Prepare for Installation: Ensure your tractor is suitable for the baler, paying close attention to horsepower requirements and PTO specifications. Park both the tractor and baler on a level surface, turn off the tractor, and engage the parking brake. Ensure the PTO shaft on the tractor is easily accessible and the hitch area is clear.
2. Attach the Baler to the Tractor: Lift the baler using the tractor’s three-point hitch, aligning the hitch arms with the baler’s mounting points. Secure the arms with pins and locking devices. If the baler is a pull-type model, back the tractor up to the baler. Align the drawbar of the tractor with the hitch on the baler and insert the hitch pin, securing it with a linchpin or lock.
3. Connect the PTO Shaft: Align the tractor’s PTO shaft with the baler’s PTO input shaft. Slide the shaft onto the PTO until it locks into place. Ensure the locking pins are engaged. For safety, make sure the PTO shaft guard is in place and correctly attached.
4. Connect Hydraulic Lines (If Applicable): If your baler requires hydraulic connections for certain operations (like a hydraulic pick-up lift), connect the hydraulic hoses from the baler to the tractor’s hydraulic outlets. Make sure the connections are clean and tight to prevent leaks.
5. Perform a Safety Check: Ensure all connections (PTO, hydraulic, electrical, and hitch) are secure. Check that all safety shields and guards are in place on both the baler and the PTO shaft. Verify that the area is clear of bystanders before starting the baler.
6. Test the Installation: Start the tractor and engage the PTO at a low RPM to ensure the baler operates as expected. Listen for any unusual noises that might indicate a problem. Disengage the PTO and inspect the baler to ensure everything remains correctly connected and functional.

Why Choose EVER-POWER’s Hay Square Baler?

EVER-POWER Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines. Our main products are PTO shafts, agricultural gearboxes, large round baler, mini round baler, PTO wood chipper, diesel wood chipper, corn seeder, drum mowers, rotary hay rakes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers, disc mower, finger wheel rake, log splitter, front end loader, backhoe, snow blower, road sweeper, etc.

The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.

At EVER-POWER, we pride ourselves on our professionalism, international certifications, customized services, state-of-the-art production facilities, and comprehensive after-sales services. Our commitment to quality and customer satisfaction sets us apart as a trusted provider of agricultural machinery solutions.
