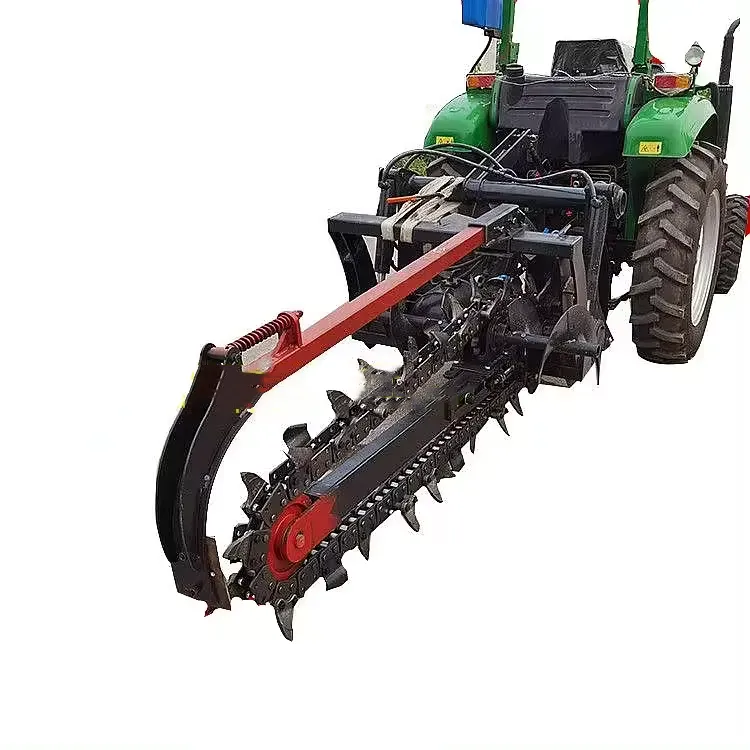

Tractor 3 Point Hitch Double Chain Trencher for Pipeline Installation

Tractor 3 Point Hitch Double Chain Trencher for Pipeline Installation is a powerful and efficient piece of machinery designed to dig ditches for pipeline installation with precision and speed. This specialized trencher is mounted on the rear of a tractor and utilizes a double chain system to cut through various soil types, making it ideal for agriculture, construction, and utilities.

Advantages of Tractor 3 Point Hitch Double Chain Trencher

• Efficient Digging: The double chain system allows for faster and more efficient digging, reducing the time and effort required for trenching.
• Precision Depth Control: Operators can easily adjust the trenching depth to meet specific project requirements, ensuring accuracy and consistency.
• Versatility: The trencher is compatible with different tractor models and can be used in various applications, making it a versatile tool for pipeline installation.
• Durable Construction: Built from robust materials, the trencher is designed to withstand heavy-duty use in tough soil conditions, ensuring long-lasting performance.
• Easy Attachment: The 3-point hitch system allows for quick and secure attachment to the tractor, making it easy to set up and use.
• Cost-Effective: The trencher’s efficiency and durability help reduce operational costs and increase productivity, making it a cost-effective solution for trenching projects.

Applications of Tractor 3 Point Hitch Double Chain Trencher

• Agriculture: The trencher is commonly used in agriculture for irrigation system installation, drainage projects, and planting operations.
• Construction: In construction, the trencher is used for laying underground cables, pipes, and utilities with precision and efficiency.
• Utilities: The trencher is essential for utility companies to install and maintain pipelines, electrical wiring, and other infrastructure underground.
• Landscaping: Landscapers use the trencher for creating drainage systems, installing sprinkler systems, and other landscaping projects that require trenching.
• Road Maintenance: The trencher is used in road maintenance projects for installing road signs, guardrails, and other infrastructure along roadways.
• Environmental Projects: The trencher is employed in environmental projects for soil remediation, erosion control, and other conservation efforts that require trenching.

Key Components of Tractor 3 Point Hitch Double Chain Trencher

A chain trencher is a complex piece of machinery designed for efficiently digging trenches in various applications. Here are the key components typically found in a chain trencher:

• Trencher Boom: The trencher boom is a crucial component that holds and supports the chain. It extends from the machine to the ground, allowing the trencher to reach the desired depth.
• Digging Chain: The digging chain is equipped with sharp, durable teeth that cut through the soil. It loops around the trencher boom and rotates to excavate material.
• Hydraulic System: The hydraulic system powers the trencher’s movement and operation, ensuring smooth and efficient trenching.
• Tractor Mount: This component secures the trencher to the tractor, allowing for easy attachment and detachment.
• Auger or Conveyor System: This system is responsible for removing excavated material from the trench.
• Depth Control Mechanism: The depth control mechanism allows operators to adjust the trenching depth.

Working Principle of Tractor 3 Point Hitch Double Chain Trencher

A tractor-mounted chain trencher is a powerful machine used for digging ditches efficiently in various applications. The working principle of a tractor-mounted chain trencher involves several key components and processes:

• Attachment to Tractor: The chain trencher is securely attached to the rear of a tractor using a mounting system.
• Power Transmission: The tractor’s engine transmits power to the trencher via a power take-off (PTO) shaft.
• Chain Rotation: The digging chain, fitted with sharp teeth, rotates around the trencher boom.
• Soil Excavation: As the chain cuts through the ground, the trencher displaces the soil.
• Depth and Angle Adjustment: Operators can adjust the trenching depth and angle using hydraulic controls.
• Forward Movement: The tractor moves forward at a controlled speed, allowing the trencher to cut continuously.

Installation Steps of Tractor 3 Point Hitch Double Chain Trencher

Installing a 3-point hitch PTO driven chain trencher to a tractor requires careful attention and adherence to safety protocols. Here are general steps to guide you through the installation process:

• Preparation and Safety Checks: Before beginning the installation, ensure the tractor is on stable, level ground and turned off.
• Aligning the Tractor and Trencher: Position the tractor so its rear is aligned with the trencher.
• Connecting the Lower Link Arms: Attach the lower link arms of the tractor’s three-point hitch to the trencher’s mounting points.
• Attaching the Top Link: Connect the top link of the three-point hitch to the corresponding point on the trencher.
• Connecting the PTO Shaft: Attach the PTO shaft from the tractor to the trencher’s input shaft.
• Adjusting the Hydraulic Hoses: If the trencher requires hydraulic power, connect the hydraulic hoses from the trencher to the tractor’s hydraulic outlets.
• Final Safety Inspection and Test: Once all connections are made, perform a final inspection to ensure everything is secure and correctly attached.

Why Choose EVER-POWER’s Chain Trenchers?

EVER-POWER is a renowned manufacturer and distributor specializing in the production and sale of chain trenchers. With a state-of-the-art facility and a team of highly skilled engineers, we have established ourselves as a leader in the industry. Our commitment to innovation and quality ensures that we deliver top-notch products that meet the highest standards. Our production capabilities are supported by advanced technology, allowing us to efficiently meet the demands of a global market. We pride ourselves on our ability to provide customized solutions that cater to the specific needs of our clients. Our chain trenchers are designed to be perfect replacements for well-known brands such as Vermeer, Bobcat, Ditch Witch, Digga, John Deere, New Holland, Tesmec, Trencor, Barreto, Caterpillar, EZ-Trench, Case Construction, Astec, Toro, and many others. These trenchers are engineered to deliver outstanding performance, durability, and efficiency across a variety of applications. Whether being used in construction, agriculture, or landscaping, our products offer unparalleled reliability and ease of use. The compatibility of our trenchers with other major brands highlights our expertise and dedication to providing versatile and high-quality equipment. At EVER-POWER, we emphasize our professionalism and influence in the chain trencher sector. Our products come with international certifications, reflecting our commitment to quality and safety. We offer comprehensive after-sales support and customization services to ensure complete customer satisfaction. Our production facilities are equipped with cutting-edge machinery, enabling us to maintain consistent quality and timely delivery. Beyond chain trenchers, we offer a wide range of agricultural machinery, including PTO shafts, agricultural gearboxes, large round balers, mini round balers, hay square balers, PTO wood chippers, diesel wood chippers, drum mowers, disc mowers, rotary hay rakes, fertilizer spreaders, lawn mowers, sickle bar mowers, flail mowers, rotary mower, rotary tillers, furrow ploughs, disc harrows, disc blades, disc ridgers, land levelers, potato planters, potato harvesters, corn seeders, wheat seeders, vegetable seeders, post hole diggers, boom sprayers, subsoiler, trailers, finger wheel rake, snow blower, road sweeper, and more. Our diverse product line and exceptional service reinforce our position as a trusted partner in the industry.
