A spur gear rack is a linear gear with straight teeth that is used to convert rotary motion into linear motion and vice versa. Spur gear racks are often used in applications such as machine tools, robotics, automation, packaging machinery, material handling, conveyor systems, automotive, aerospace, and medical devices.

Spur gear racks have several advantages. Their simple design makes them easy to manufacture and cost-effective. They are highly efficient and can transmit high loads. Spur gear racks are also widely used in a variety of applications.

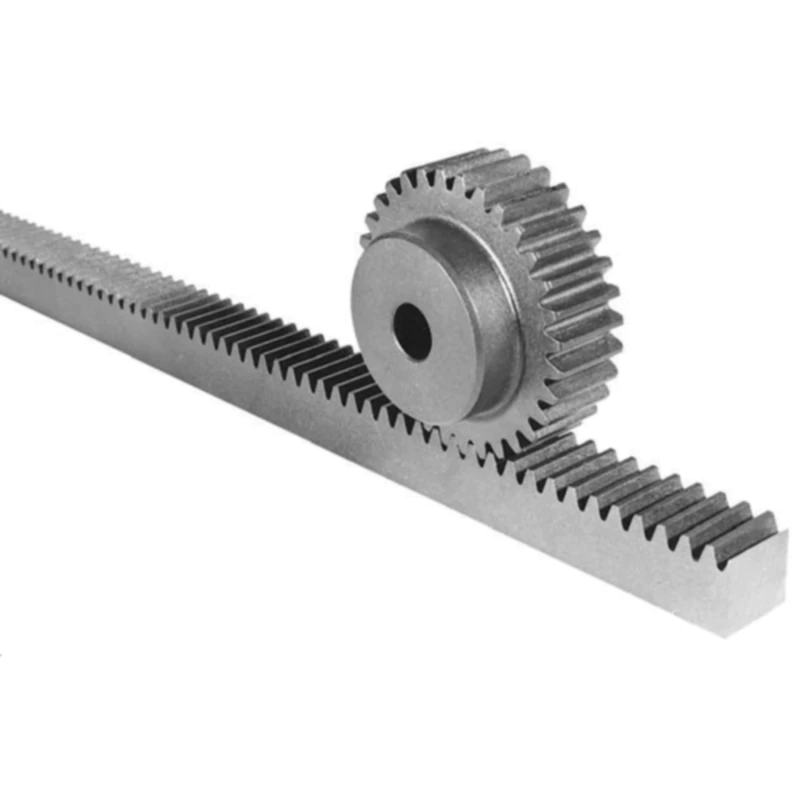

The working principle of a spur gear rack is simple: it works by meshing with a pinion gear. The pinion gear is a rotating gear with teeth that mesh with the teeth of the . As the pinion gear rotates, it turns the spur gear rack, which converts the rotary motion of the pinion gear into linear motion.

Spur gear racks are used in a wide variety of applications, including machine tools, robotics, automation, packaging machinery, material handling, conveyor systems, automotive, aerospace, and medical devices. These gears are used to move cutting tools, arms and joints, products and materials, steering wheels and gearshifts, flaps and landing gear, and in medical devices such as MRI machines and surgical robots.

However, spur gear racks can also have some common issues. Excessive noise, short lifespan, and insufficient precision are some of the common issues. Fortunately, there are several solutions to these issues such as proper meshing between spur gear rack and pinion, avoiding overloading, and using high-quality lubricants or damping materials.

When choosing a spur gear rack, it is important to consider the application requirements, such as the load capacity, speed, torque, and accuracy requirements. The material, size, and complexity of the rack should also be considered.

Proper installation and maintenance are crucial for the performance and lifespan of spur gear racks. Inspecting the gear regularly for any signs of wear or damage, lubricating the gear regularly, and checking the alignment and backlash are some of the maintenance tips that can help to ensure the gear operates smoothly and reliably for many years to come.

EVER POWER is a professional manufacturer of racks in China. The company has over 100 professional rack production equipment and testing equipment. It produces 1 to 32 module standard racks, non-standard straight racks, helical racks, double-sided racks, cylindrical racks, and various inch racks, with an accuracy of up to 7 to 9 levels. EVER POWER’s products are mainly sold to hundreds of fixed suppliers such as domestic steel rolling mills, shipyards, precision machine tool factories, automation machinery factories, and various distribution companies, and exported to Western Europe, the Middle East, and Southeast Asia.

In conclusion, spur gear racks are an essential component in many industrial applications. With proper selection, installation, and maintenance, spur gear racks can help improve the performance and reliability of machines and devices. EVER POWER is a reliable manufacturer that offers high-quality rack products and superb customer service.

Can Spur Gear Racks Be Used in Amusement Park Rides?

A spur gear rack is a type of linear gear with straight teeth that is used to convert rotary motion into linear motion and vice versa. Spur gear racks are highly versatile and can be used in a wide range of applications, including machine tools, robotics, automation, packaging machinery, material handling, conveyor systems, automotive, aerospace, and medical devices.

Advantages of Spur Gear Racks

Spur gear racks are simple to design and manufacture, making them cost-effective for many applications. They are also highly efficient and can transmit high loads. Their versatility and wide range of applications make them a popular choice in various industries.

How Spur Gear Racks Work

Spur gear racks work by meshing with a pinion gear. The pinion gear is a rotating gear with teeth that mesh with the teeth of the spur gear rack. As the pinion gear rotates, it turns the , which converts the rotary motion of the pinion gear into linear motion.

Applications of Spur Gear Racks

Spur gear racks are used in a wide variety of applications, including:

• Machine tools: Spur gear racks are used in machine tools to move the cutting tools.
• Robotics: Spur gear racks are used in robots to move the arms and joints.
• Automation: Spur gear racks are used in automated machines to move products and materials.
• Packaging machinery: Spur gear racks are used in packaging machinery to move products and packaging materials.
• Material handling: Spur gear racks are used in material handling equipment to move products and materials.
• Conveyor systems: Spur gear racks are used in conveyor systems to move products and materials.
• Automotive: Spur gear racks are used in cars and trucks to move the steering wheel and the gearshift.
• Aerospace: Spur gear racks are used in airplanes and helicopters to move the flaps and the landing gear.
• Medical devices: Spur gear racks are used in medical devices, such as MRI machines and surgical robots.

Common Problems and Solutions

Problem: Excessive noise from the spur gear rack.

Solution:

• Ensure proper meshing between the spur gear rack and pinion, avoiding over-tight or loose meshing.
• Use high-quality lubricants or damping materials to reduce friction and vibration.
• Ensure correct installation and alignment of the spur gear rack and pinion to avoid noise caused by misalignment.
• Check for wear on the spur gear rack and pinion, and replace heavily worn components if necessary.

Problem: Short spur gear rack lifespan.

Solution:

• Regularly clean and lubricate the spur gear rack to ensure smooth operation and prevent excessive wear.
• Avoid overloading the spur gear rack and operate within its design load range.
• Minimize sudden load or speed changes to reduce impact and fatigue on the spur gear rack.
• Periodically inspect the spur gear rack and pinion for wear, and replace heavily worn parts as needed.
• Ensure proper installation and alignment of the spur gear rack and pinion to prevent abnormal wear and premature failure.

Problem: Insufficient precision of the spur gear rack.

Solution:

• Select high-quality spur gear racks and pinions that meet the required manufacturing precision.
• Use professional machining equipment and processes to ensure the spur gear rack and pinion’s machining accuracy.
• Employ appropriate measurement and calibration methods to check the geometric parameters of the spur gear rack and pinion.
• Avoid using the gear rack in unsuitable environmental conditions such as high temperature, high humidity, or corrosive environments.
• Ensure proper installation and alignment of the spur gear rack and pinion to prevent precision issues caused by misalignment.

Choosing the Right Spur Gear Rack

When choosing a spur gear rack, it is important to consider the application requirements, such as the load capacity, speed, torque, and accuracy requirements. The material, size, and complexity of the rack should also be considered.

Installation and Maintenance

Installation:

• Inspect the spur gear rack and pinion gear for any damage. Make sure that the teeth are not chipped or broken.
• Clean the spur gear rack and pinion gear. Remove any dirt, debris, or grease from the gears.
• Apply a lubricant to the spur gear rack and pinion gear. Use a lubricant that is compatible with the materials of the gears.
• Mount the spur gear rack to a rigid surface. Make sure that the rack is aligned with the pinion gear.
• Install the pinion gear. Make sure that the pinion gear is meshed with the spur gear rack.
• Adjust the backlash between the spur gear rack and pinion gear. The backlash should be between 0.002 and 0.004 inches.

Maintenance:

• Inspect the spur gear rack and pinion gear regularly for any signs of wear or damage.
• Lubricate the spur gear rack and pinion gear regularly. Use a lubricant that is compatible with the materials of the gears.
• Check the alignment of the spur gear rack and pinion gear regularly. Make sure that the gears are properly aligned.
• Adjust the backlash between the spur gear rack and pinion gear regularly. The backlash should be between 0.002 and 0.004 inches.

Troubleshooting:

If you experience any problems with your spur gear rack, here are some troubleshooting tips:

• Check the lubrication. Make sure that the gears are properly lubricated.
• Check the alignment. Make sure that the gears are properly aligned.
• Check the backlash. Make sure that the backlash is between 0.002 and 0.004 inches.
• Inspect the gears for any damage. If the gears are damaged, they will need to be replaced.

About EVER POWER

EVER POWER is a professional manufacturer of racks in China with more than 100 professional rack production and testing equipment. The company offers a wide range of rack products, including Gear Rack for Door Opener, Gear Rack for Elevator, Rack and Pinion Steering, Metric Gear Rack, and more. EVER POWER’s products are exported to various countries and regions, such as Spain, the Netherlands, the United States, South Korea, Turkey, and Russia.

EVER POWER has considerable competitiveness in the industry. The company adheres to the principles of quality first, timely delivery, and credit first, treating every business partner sincerely. By offering excellent products, affordable prices, and good service attitude, EVER POWER welcomes friends from the business community to cooperate and create brilliance together.

Can Spur Gear Racks be Used in Textile Printing Machines?

In the world of engineering, spur gear racks are well-known and widely used for their ability to convert rotary motion into linear motion and vice versa. Spur gear racks are known for their straight teeth, which allow them to mesh perfectly with pinion gears for efficient transmission of power. Spur gear racks are used in a variety of applications, including machine tools, robotics, automation, packaging machinery, material handling, conveyor systems, automotive, aerospace, and medical devices, but can they be used in textile printing machines?

Basic Definition and Product Features

Before diving into the question of whether spur gear racks can be used in textile printing machines, let’s look at the basic definition and product features of s. As mentioned earlier, a spur gear rack is a linear gear with straight teeth. The teeth on the rack mesh with the teeth on a pinion gear to transmit power efficiently. Some of the advantages of spur gear racks include:

• Simple design: Spur gear racks are easy to design and manufacture, making them a cost-effective option for many applications.
• High efficiency: Spur gear racks are highly efficient and can transmit high loads.
• Wide range of applications: Spur gear racks are used in a wide variety of applications.

How Do Spur Gear Racks Work?

Spur gear racks work by meshing with a pinion gear. The pinion gear is a rotating gear with teeth that mesh with the teeth of the spur gear rack. As the pinion gear rotates, it turns the spur gear rack, which converts the rotary motion of the pinion gear into linear motion.

Applications of Spur Gear Racks

As mentioned earlier, spur gear racks are used in a wide variety of applications. Here are a few examples:

• Machine tools: Spur gear racks are used in machine tools to move the cutting tools.
• Robotics: Spur gear racks are used in robots to move the arms and joints.
• Automation: Spur gear racks are used in automated machines to move products and materials.
• Packaging machinery: Spur gear racks are used in packaging machinery to move products and packaging materials.
• Material handling: Spur gear racks are used in material handling equipment to move products and materials.
• Conveyor systems: Spur gear racks are used in conveyor systems to move products and materials.
• Automotive: Spur gear racks are used in cars and trucks to move the steering wheel and the gearshift.
• Aerospace: Spur gear racks are used in airplanes and helicopters to move the flaps and the landing gear.
• Medical devices: Spur gear racks are used in medical devices, such as MRI machines and surgical robots.

Common Problems and Solutions

Like any mechanical component, spur gear racks can experience problems. Here are a few common problems and solutions:

Problem: Excessive noise from the spur gear rack.

Solution:

• Ensure proper meshing between the spur gear rack and pinion, avoiding over-tight or loose meshing.
• Use high-quality lubricants or damping materials to reduce friction and vibration.
• Ensure correct installation and alignment of the spur gear rack and pinion to avoid noise caused by misalignment.
• Check for wear on the spur gear rack and pinion and replace heavily worn components if necessary.

Problem: Short spur gear rack lifespan.

Solution:

• Regularly clean and lubricate the spur gear rack to ensure smooth operation and prevent excessive wear.
• Avoid overloading the spur gear rack and operate within its design load range.
• Minimize sudden load or speed changes to reduce impact and fatigue on the spur gear rack.
• Periodically inspect the spur gear rack and pinion for wear and replace heavily worn parts as needed.
• Ensure proper installation and alignment of the spur gear rack and pinion to prevent abnormal wear and premature failure.

Problem: Insufficient precision of the spur gear rack.

Solution:

• Select high-quality spur gear racks and pinions that meet the required manufacturing precision.
• Use professional machining equipment and processes to ensure the spur gear rack and pinion’s machining accuracy.
• Employ appropriate measurement and calibration methods to check the geometric parameters of the spur gear rack and pinion.
• Avoid using the gear rack in unsuitable environmental conditions such as high temperature, high humidity, or corrosive environments.
• Ensure proper installation and alignment of the spur gear rack and pinion to prevent precision issues caused by misalignment.

How to Choose Suitable Spur Gear Racks?

When selecting a spur gear rack, it is important to consider the application’s requirements, such as the load capacity, speed, torque, and accuracy requirements. The material, size, and complexity of the rack should also be considered.

Installation and Maintenance of Spur Gear Racks

Installation:

• Inspect the spur gear rack and pinion gear for any damage. Make sure that the teeth are not chipped or broken.
• Clean the spur gear rack and pinion gear. Remove any dirt, debris, or grease from the gears.
• Apply a lubricant to the spur gear rack and pinion gear. Use a lubricant that is compatible with the materials of the gears.
• Mount the spur gear rack to a rigid surface. Make sure that the rack is aligned with the pinion gear.
• Install the pinion gear. Make sure that the pinion gear is meshed with the spur gear rack.
• Adjust the backlash between the spur gear rack and pinion gear. The backlash should be between 0.002 and 0.004 inches.

Maintenance:

• Inspect the spur gear rack and pinion gear regularly for any signs of wear or damage.
• Lubricate the spur gear rack and pinion gear regularly. Use a lubricant that is compatible with the materials of the gears.
• Check the alignment of the spur gear rack and pinion gear regularly. Make sure that the gears are properly aligned.
• Adjust the backlash between the spur gear rack and pinion gear regularly. The backlash should be between 0.002 and 0.004 inches.

Troubleshooting:

If you experience any problems with your spur gear rack, here are some troubleshooting tips:

• Check the lubrication. Make sure that the gears are properly lubricated.
• Check the alignment. Make sure that the gears are properly aligned.
• Check the backlash. Make sure that the backlash is between 0.002 and 0.004 inches.
• Inspect the gears for any damage. If the gears are damaged, they will need to be replaced.

About EVER POWER

EVER POWER is a professional manufacturer of racks in China. The company has more than 100 professional rack production equipment and testing equipment, and the one-time processing length of the rack is 3000MM. For high-end customers who demand high-precision racks, EVER POWER specially introduces rack milling machines and rack grinding machines imported from Germany.

The precision of the racks produced by this equipment can reach (JIS2 level) DIN6n25 to meet various needs of the high-end market. EVER POWER has excellent products, affordable prices, and a good service attitude. Its products are exported to different countries such as Spain, the Netherlands, the United States, South Korea, Turkey, and Russia. EVER POWER is willing to help customers develop new products and solve technical and quality problems.

EVER POWER adheres to the principles of quality first, timely delivery, and credit first, and treats every business partner sincerely. The company wholeheartedly welcomes friends from the business community to cooperate and create brilliance together. EVER POWER also offers other rack products such as Gear Rack for Door Opener, Gear Rack for Elevator, Rack and Pinion Steering, Metric Gear Rack, etc. Customers are welcome to inquire about customized products.

Can Spur Gear Racks Be Used in Motion Control Systems?

A spur gear rack is a linear gear with straight teeth. It is used to convert rotary motion into linear motion and vice versa. Spur gear racks are used in a wide variety of applications, including machine tools, robotics, automation, packaging machinery, material handling, conveyor systems, automotive, aerospace, and medical devices.

Advantages of Spur Gear Racks

• Simple design: Spur gear racks are simple to design and manufacture, making them a cost-effective option for many applications.
• High efficiency: Spur gear racks are highly efficient and can transmit high loads.
• Wide range of applications: Spur gear racks are used in a wide variety of applications.

How Spur Gear Racks Work

Spur gear racks work by meshing with a pinion gear. The pinion gear is a rotating gear with teeth that mesh with the teeth of the spur gear rack. As the pinion gear rotates, it turns the , which converts the rotary motion of the pinion gear into linear motion.

Applications of Spur Gear Racks

Spur gear racks are used in a wide variety of applications, including:

• Machine tools: Spur gear racks are used in machine tools to move the cutting tools.
• Robotics: Spur gear racks are used in robots to move the arms and joints.
• Automation: Spur gear racks are used in automated machines to move products and materials.
• Packaging machinery: Spur gear racks are used in packaging machinery to move products and packaging materials.
• Material handling: Spur gear racks are used in material handling equipment to move products and materials.
• Conveyor systems: Spur gear racks are used in conveyor systems to move products and materials.
• Automotive: Spur gear racks are used in cars and trucks to move the steering wheel and the gearshift.
• Aerospace: Spur gear racks are used in airplanes and helicopters to move the flaps and the landing gear.
• Medical devices: Spur gear racks are used in medical devices, such as MRI machines and surgical robots.

Common Problems and Solutions

Problem 1: Excessive noise from the spur gear rack.

Solution:

• Ensure proper meshing between the spur gear rack and pinion, avoiding over-tight or loose meshing.
• Use high-quality lubricants or damping materials to reduce friction and vibration.
• Ensure correct installation and alignment of the spur gear rack and pinion to avoid noise caused by misalignment.
• Check for wear on the spur gear rack and pinion, and replace heavily worn components if necessary.

Problem 2: Short spur gear rack lifespan.

Solution:

• Regularly clean and lubricate the spur gear rack to ensure smooth operation and prevent excessive wear.
• Avoid overloading the spur gear rack and operate within its design load range.
• Minimize sudden load or speed changes to reduce impact and fatigue on the spur gear rack.
• Periodically inspect the spur gear rack and pinion for wear, and replace heavily worn parts as needed.
• Ensure proper installation and alignment of the spur gear rack and pinion to prevent abnormal wear and premature failure.

Problem 3: Insufficient precision of the spur gear rack.

Solution:

• Select high-quality spur gear racks and pinions that meet the required manufacturing precision.
• Use professional machining equipment and processes to ensure the spur gear rack and pinion’s machining accuracy.
• Employ appropriate measurement and calibration methods to check the geometric parameters of the spur gear rack and pinion.
• Avoid using the gear rack in unsuitable environmental conditions such as high temperature, high humidity, or corrosive environments.
• Ensure proper installation and alignment of the spur gear rack and pinion to prevent precision issues caused by misalignment.

How to Choose Suitable Spur Gear Racks

When choosing a spur gear rack, it is important to consider the application requirements, such as the load capacity, speed, torque, and accuracy requirements. The material, size, and complexity of the rack should also be considered.

Installation and Maintenance

Installation:

• Inspect the spur gear rack and pinion gear for any damage. Make sure that the teeth are not chipped or broken.
• Clean the spur gear rack and pinion gear. Remove any dirt, debris, or grease from the gears.
• Apply a lubricant to the spur gear rack and pinion gear. Use a lubricant that is compatible with the materials of the gears.
• Mount the spur gear rack to a rigid surface. Make sure that the rack is aligned with the pinion gear.
• Install the pinion gear. Make sure that the pinion gear is meshed with the spur gear rack.
• Adjust the backlash between the spur gear rack and pinion gear. The backlash should be between 0.002 and 0.004 inches.

Maintenance:

• Inspect the spur gear rack and pinion gear regularly for any signs of wear or damage.
• Lubricate the spur gear rack and pinion gear regularly. Use a lubricant that is compatible with the materials of the gears.
• Check the alignment of the spur gear rack and pinion gear regularly. Make sure that the gears are properly aligned.
• Adjust the backlash between the spur gear rack and pinion gear regularly. The backlash should be between 0.002 and 0.004 inches.

Troubleshooting:

If you experience any problems with your spur gear rack, here are some troubleshooting tips:

• Check the lubrication. Make sure that the gears are properly lubricated.
• Check the alignment. Make sure that the gears are properly aligned.
• Check the backlash. Make sure that the backlash is between 0.002 and 0.004 inches.
• Inspect the gears for any damage. If the gears are damaged, they will need to be replaced.

About EVER POWER

EVER POWER is a professional manufacturer of racks in China. Its products are mainly sold to hundreds of fixed suppliers such as domestic steel rolling mills, shipyards, precision machine tool factories, automation machinery factories and various distribution companies, and exported to Western Europe, the Middle East, and Southeast Asia and other countries and regions. EVER POWER has considerable competitiveness in the same industry.

The company has more than 100 professional rack production equipment and testing equipment. For high-end customers who demand high-precision racks, our company specially introduces rack milling machines and rack grinding machines imported from Germany. EVER POWER also offers other rack products such as Gear Rack For Door Opener, gear rack for elevator, rack and pinion steering, metric gear rack, etc. Customers are welcome to inquire about customized products.

With excellent products, affordable prices, and good service attitude, our products are exported to different countries such as Spain, the Netherlands, the United States, South Korea, Turkey, and Russia. At the same time, we sincerely hope to help customers develop new products and solve technical and quality problems. We are willing to meet the needs of users with high-quality products, fair prices, and perfect services.

In short, we adhere to the principles of quality first, timely delivery, and credit first, treat every business partner sincerely, and wholeheartedly welcome friends from the business community to cooperate with us to develop together and create brilliance.
