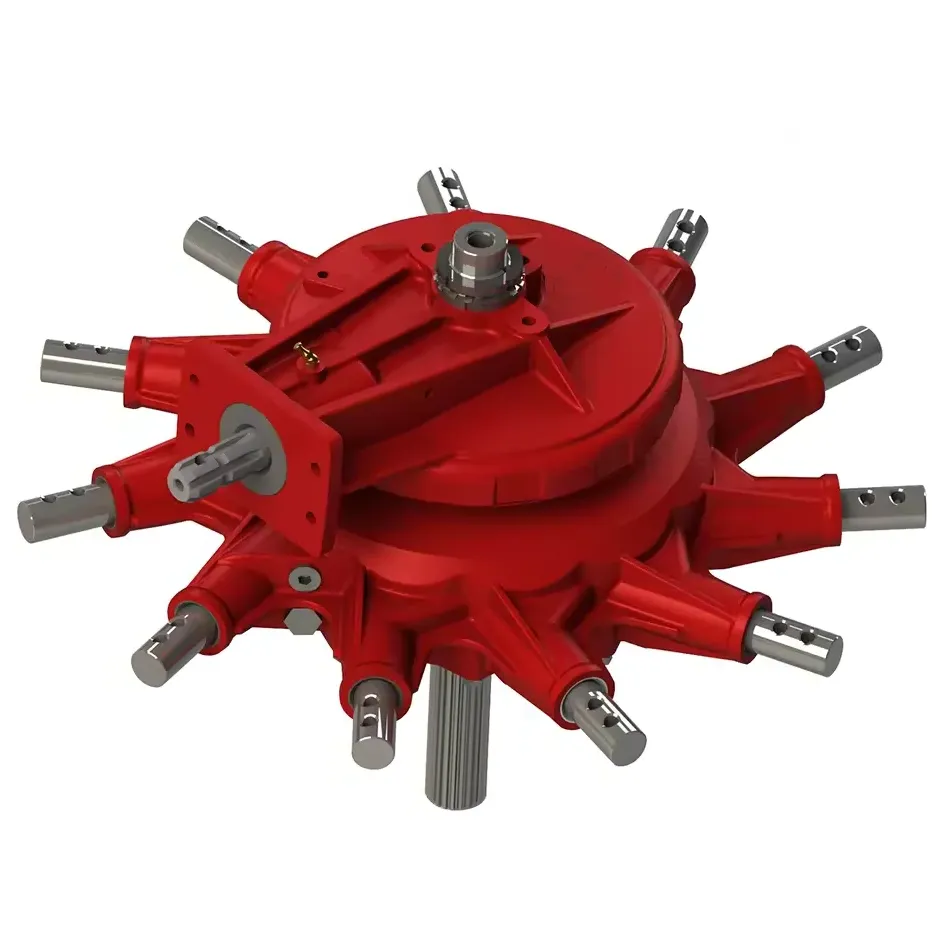

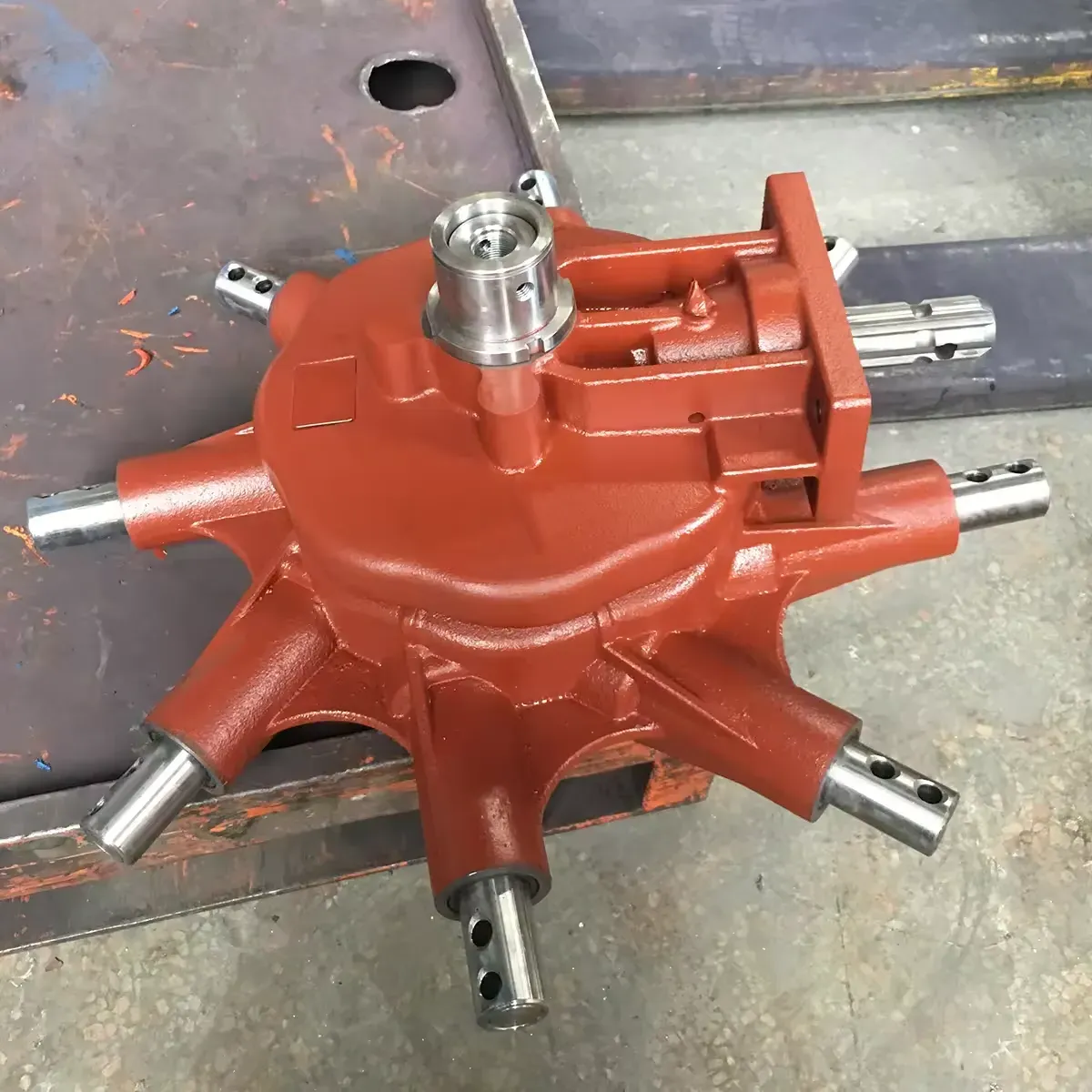

A rotary rake gearbox is a crucial component in agricultural machinery, specifically in rotary rakes, which are used for gathering and organizing cut hay, straw, or other crop materials into rows. The primary function of a rotary rake gearbox is to transmit power from the tractor or motor to the rotary rake arms. The gearbox converts the power input into the required speed and torque to efficiently move the tines or arms of the rake, ensuring the collected material is neatly arranged for further processing, like baling.

The gearbox typically features a robust design suitable for outdoor agricultural environments. It consists of gears, shafts, and bearings sealed within a housing. The gears are usually made from hardened steel to withstand the wear and tear of field operations. The design often allows for various speed settings, enabling the operator to adjust the rake’s operation based on the condition of the crop and field.

Benefits of Using the Tractor PTO Driven Rotary Rake Gearbox

Using a Tractor PTO (Power Take-Off) Driven Rotary Rake Gearbox offers several benefits that are crucial for efficient agricultural operations, especially in the context of haymaking and similar activities. Here are some of the primary advantages:

1. Increased Efficiency

• Power Optimization: The gearbox efficiently converts and amplifies the tractor’s power to drive the rotary rake, ensuring that it operates at optimal speeds that match the specific demands of the task. This leads to faster completion of raking processes.
• Uniform Performance: It ensures a consistent and uniform raking action, which is essential for evenly distributed and well-formed windrows (rows of cut hay).

2. Enhanced Versatility

• Wide Compatibility: These gearboxes are designed to fit a range of tractor models and sizes, which means they can be easily integrated into various farm setups without needing significant modifications.
• Adjustable Settings: Many gearboxes come with adjustable settings that allow farmers to change the operational parameters based on the condition of the field and the type of material being raked.

3. Improved Product Quality

• Better Crop Handling: By providing a steady, controlled motion, the gearbox helps prevent damage to the crop during raking, preserving the quality of hay or straw which is crucial for both selling and storage purposes.
• Optimal Windrow Formation: Effective raking improves the subsequent steps in crop processing, such as baling, by forming well-shaped windrows that are easier to collect and process.

4. Durability and Longevity

• Robust Construction: Made from high-strength materials like steel or cast iron, these gearboxes are built to withstand the harsh conditions typical of outdoor agricultural work.
• Reduced Wear and Tear: The proper transmission of power helps prevent overloading and excessive wear on both the tractor and the rake, extending the life of both.

5. Cost-Effectiveness

• Lower Maintenance Costs: Durable construction and efficient operation reduce the frequency and cost of repairs.
• Fuel Efficiency: By optimizing the power transfer, the gearbox helps in reducing the amount of fuel needed for raking tasks, leading to cost savings over time.

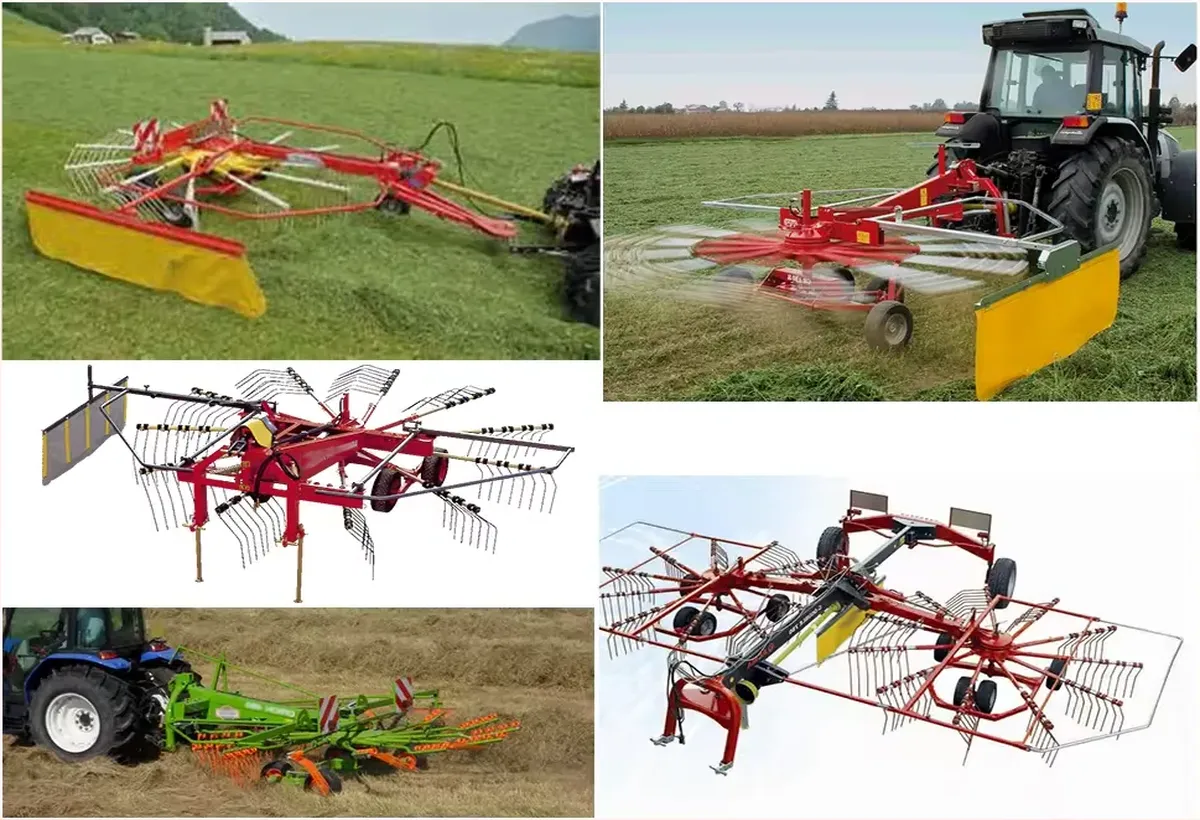

Applications of Tractor PTO Driven Rotary Rake Gearbox

In the world of agriculture, the tractor PTO driven rotary rake gearbox plays a crucial role in various applications. Let’s explore the diverse uses of this essential component:

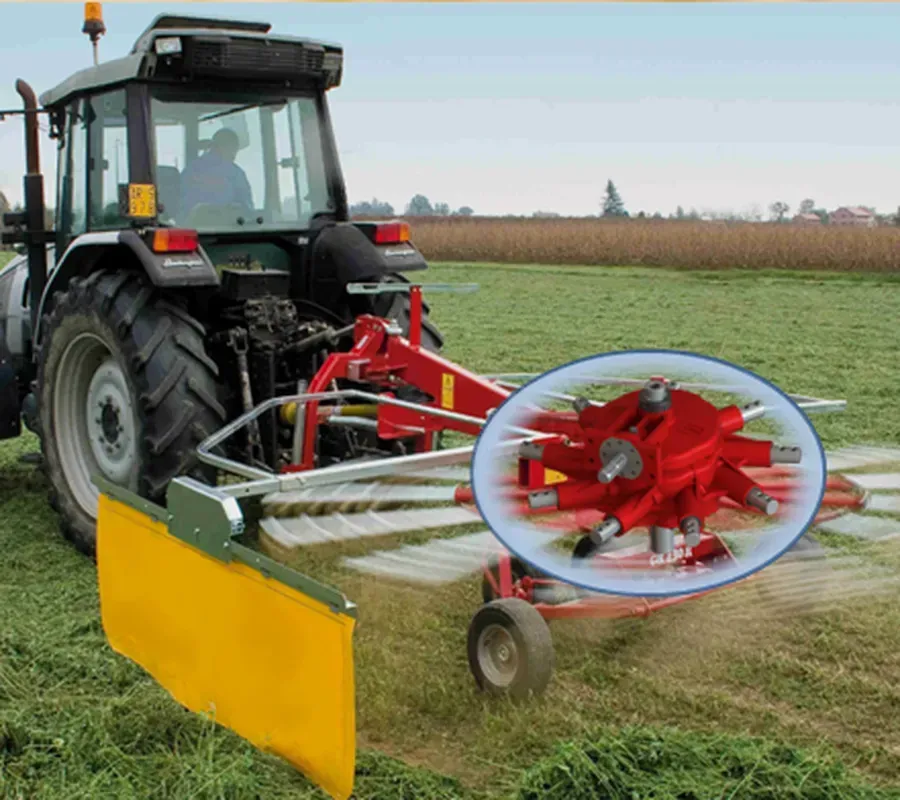

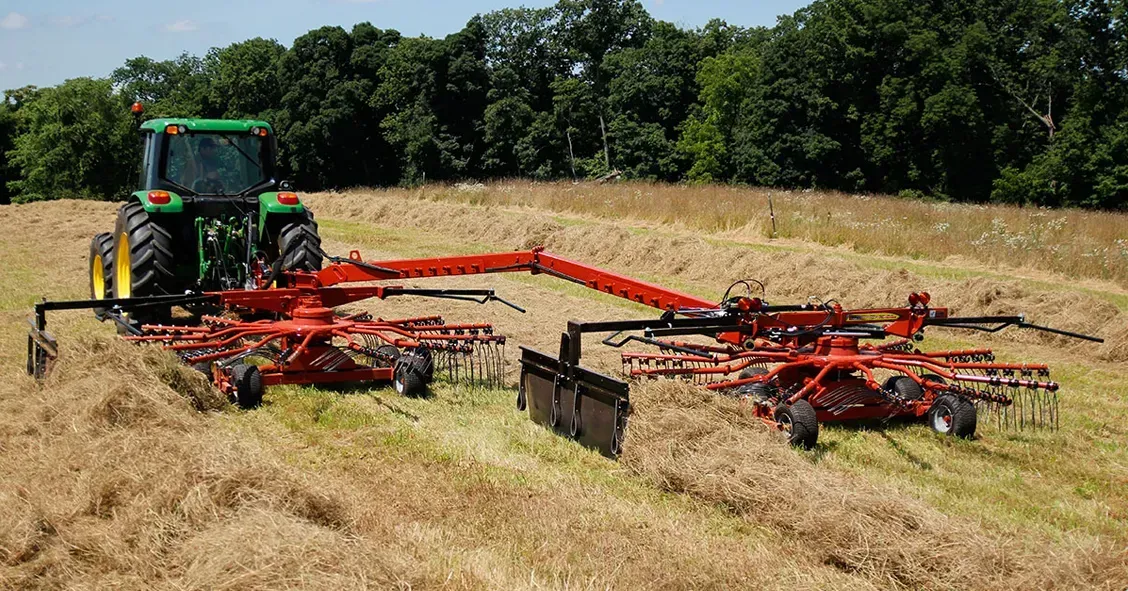

1. Hay Raking

One of the primary applications of the tractor PTO driven rotary rake gearbox is in hay raking. The gearbox is responsible for efficiently gathering cut hay from the fields, arranging it into neat windrows for drying and baling. The adjustable speed and torque settings of the gearbox allow for precise control over the raking process, ensuring optimal results.

2. Crop Harvesting

Another common application of the gearbox is in crop harvesting. Whether it’s gathering straw, grass, or other crops, the rotary rake gearbox plays a vital role in efficiently collecting the harvested materials. The gearbox’s ability to adjust power output and speed makes it versatile for different types of crops and harvesting conditions.

3. Silage Making

For farmers involved in silage making, the tractor PTO driven rotary rake gearbox is indispensable. By efficiently raking and collecting the chopped forage material, the gearbox contributes to the production of high-quality silage for livestock feed. The gearbox’s durability and reliability are essential for continuous operation during silage making.

4. Field Maintenance

Aside from crop-related tasks, the rotary rake gearbox is also used in field maintenance activities. From clearing debris and rocks to leveling uneven terrain, the gearbox’s power transmission capabilities are utilized for various field maintenance tasks. The gearbox’s durability ensures consistent performance even in challenging field conditions.

5. Soil Aeration

Soil aeration is essential for promoting healthy root growth and improving soil fertility. The tractor PTO driven rotary rake gearbox can be adapted for soil aeration applications, where it helps in breaking up compacted soil and enhancing air and water circulation. The gearbox’s versatility allows for customization to suit different soil types and aeration depths.

6. Landscaping and Groundskeeping

Lastly, the gearbox finds applications in landscaping and groundskeeping tasks. Whether it’s clearing brush, grooming lawns, or maintaining sports fields, the gearbox’s power and efficiency make it a valuable tool for maintaining outdoor spaces. The gearbox’s robust construction ensures longevity and reliability in demanding landscaping applications.

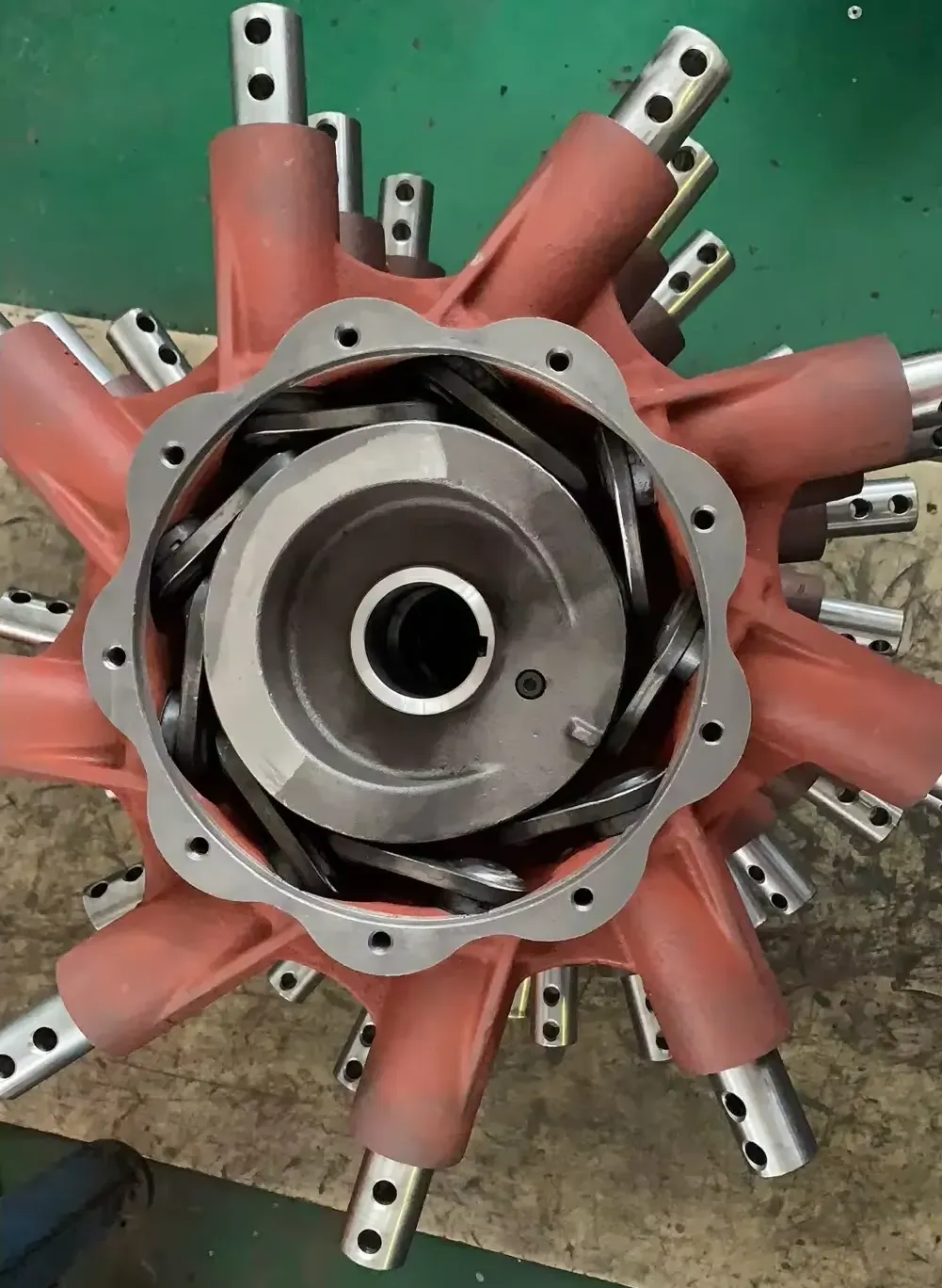

Working Principle of the PTO Driven Rotary Rake Gearbox

The PTO driven rotary rake gearbox is an essential component in the operation of a rotary rake, which is used in agriculture to gather cut crops like hay. Here’s a detailed look at how this system works:

1. Power Source Connection: The gearbox is connected to a tractor through the PTO shaft. The PTO shaft is a rotating shaft that provides the power (torque and rotation) from the tractor’s engine to the attached implement—in this case, the rotary rake.
2. Transmission of Power: Once the PTO shaft is engaged, it rotates and transmits mechanical power from the tractor to the gearbox of the rotary rake. This transmission involves converting the engine’s power into a form that the rake can use effectively.
3. Gearbox Function: The gearbox’s primary role is to adjust the power received from the tractor to the optimal speed and torque for the rotary rake’s operation. It typically contains several gears that can increase or decrease the speed and torque according to the requirements of the task. The gears are often configured to provide a reduction in speed, which increases the torque output suitable for the heavy-duty task of moving the rake tines through crop material.
4. Output to Rake Arms: From the gearbox, the adjusted power is transferred to the rake’s arms. This is usually achieved through a series of additional shafts and gears, or sometimes through a direct drive system. The power needs to be evenly distributed to ensure smooth operation of the rake tines or arms.
5. Rake Operation: The final output of this transmission process is the movement of the rake arms or tines in a sweeping or circular motion. The motion gathers the cut crops, arranging them into neat rows for easier collection and baling. The speed and effectiveness of the rake arms are crucial and can be adjusted via the gearbox to suit different types of crops and conditions.
6. Control and Adjustments: Operators can control the PTO and gearbox settings from the tractor, typically adjusting the speed and engagement according to the specific needs of the job, such as crop type, wetness of the material, and field conditions. This control helps optimize the rake’s performance and reduce the strain on both the tractor and the implement.

Maintenance and Lubrication of PTO Driven Rotary Rake Gearbox

Maintaining and lubricating a PTO driven rotary rake gearbox effectively is essential for ensuring the longevity and optimal performance of your agricultural equipment. Here are the key steps and tips for the maintenance and lubrication of this essential component of agricultural machinery:

• Regular Inspection: Regularly inspect the gearbox for any oil leaks or cracks in the housing. Leaks can lead to a loss of lubrication and eventual damage to the internal gears. Periodically open the gearbox to check the condition of the gears and bearings. Look for signs of wear or damage such as pitting, scoring, or unusual noise during operation.
• Lubrication: Ensure that the oil level in the gearbox is maintained at the manufacturer’s recommended level. Low oil levels can lead to overheating and increased wear. Follow the manual’s guidelines on how often to change the gear oil. Regularly changing the oil can prevent the buildup of contaminants and debris, which can wear down the gears. Always use the type of oil recommended by the manual to ensure optimal lubrication and protection.
• Cleaning: After each use, clean any plant material or debris from around the gearbox and the PTO shaft. This prevents overheating and reduces the risk of fire. If the gearbox has ventilation ports, make sure they are clean to allow proper air circulation, which helps to prevent overheating.
• Check and Tighten Connections: Regularly check that the gearbox is securely mounted and that all bolts and mounts are tight. Vibration from loose components can lead to increased wear and potential failure. Ensure that the PTO shaft is securely connected and that safety shields are in place to protect against entanglement or injury.
•  Alignment and Balancing: Check the alignment of the PTO shaft and the gearbox regularly. Misalignment can cause undue stress and wear on the gearbox. Ensure that rotating parts are balanced. Imbalance can lead to vibration, which may cause premature bearing failure and damage to the gearbox. 6. Proper Storage: When not in use, store the equipment in a covered, dry area to prevent rust and corrosion. Avoid leaving the rotary rake outdoors where it can be exposed to the elements.

Choose the Right PTO Shaft for the Rotary Rake Gearbox

Choosing the right PTO shaft for your rotary rake gearbox is critical for ensuring effective and safe operation. Here’s a guide on how to select the appropriate PTO shaft for your equipment:

1. Length of the Shaft: Measure the distance between the tractor’s PTO and the input shaft of the rotary rake when the equipment is in the operating position. Make sure there is enough overlap between the tractor and the implement’s shaft to accommodate movement without disengaging.

2. Tractor Power and Torque Requirements: Check the power and torque requirements of the rotary rake. The PTO shaft must be capable of handling the maximum power and torque output of the tractor to avoid failure.

3. Match the Tractor’s PTO Output: Match the PTO shaft to the tractor’s PTO output size and spline specification (commonly 6 or 21 splines). This ensures that the shaft will fit securely and transmit power effectively. Ensure that the PTO shaft can handle the operational RPM of both the tractor and the rotary rake. Standard PTO speeds are typically 540 RPM or 1000 RPM.

4. Consider the Type of PTO Shaft: Decide between a standard PTO shaft or a wide-angle PTO shaft. Wide-angle shafts allow for greater angular operation, which is beneficial for equipment that must operate at varying heights or over uneven terrain. Consider a shaft with a shear bolt or slip clutch. This safety feature helps protect the gearbox and tractor from damage caused by torque overload or when the rake hits an obstruction.

5. Check Compatibility with Safety Features: Ensure that the PTO shaft comes with adequate safety guards to protect operators from entanglement or injury. Check that these guards are durable and securely attached. Choose a PTO shaft that meets relevant safety standards and has CE marking, indicating compliance with European safety regulations.

6. Quality and Durability: Look for shafts made from high-quality, durable materials that can withstand the environmental and mechanical stresses of farm work. Opt for brands known for their quality and reliability in agricultural machinery. Consider the ease of servicing the PTO shaft. Check for the availability of replacement parts such as universal joints, bearings, and safety clutches.

Why Choose EVER-POWER’s Rotary Rake Gearbox?

EVER-POWER is a leading manufacturer of high-performance rotary rake gearboxes for various applications. Our technical staff can reconfigure an existing design or assist you in designing a custom rotary rake gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an rotary rake gearbox. We can also offer many types of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, fertilizer seeder gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc. If you want to buy rotary rake gearbox, please get in touch with us.

Our technical expertise and customization options set us apart in the industry:

Professionalism

Our team of experts is dedicated to providing professional solutions tailored to your specific needs. We prioritize quality and performance in every gearbox we produce.

International Certifications

We adhere to strict international standards and hold certifications that attest to the quality and reliability of our products. You can trust EVER-POWER for superior gearbox solutions.

Customized Services

If you require a custom gearbox design, our technical staff can work with you to create a solution that fits your unique requirements. We offer flexible and personalized services to meet your demands.

Production Facilities

Our state-of-the-art production facilities are equipped with the latest technology for efficient and precise manufacturing. We ensure that every gearbox meets the highest standards of quality and durability.

After-Sales Services

At EVER-POWER, our commitment to customer satisfaction extends beyond the sale. We provide comprehensive after-sales support, including maintenance services, technical assistance, and spare parts availability.

Company Reputation

With a reputation for excellence in the industry, EVER-POWER is the trusted choice for agricultural gearboxes and PTO shafts. Our dedication to innovation and customer satisfaction sets us apart from the competition.

Author: Yjx



What is a Tractor PTO Driven Rotary Rake Gearbox?

A tractor PTO driven rotary rake gearbox is an essential component used in agriculture to gather cut crops like hay. It connects the tractor’s power source to the rotary rake, allowing for efficient and effective operation.

Advantages of Tractor PTO Driven Rotary Rake Gearbox:

• Enhanced efficiency in gathering cut crops
• Improved control over rake arm movement
• Optimized speed and torque adjustments
• Reduced strain on tractor and implement
• Customizable settings for different crop types
• Increased productivity in agricultural operations

Applications of Tractor PTO Driven Rotary Rake Gearbox:

• Gathering and arranging hay or other cut crops
• Creating neat rows for easier collection and baling
• Improving efficiency in agricultural harvesting
• Enhancing overall productivity on the farm
• Adapting to different crop types and field conditions
• Reducing manual labor and time required for crop management

Working Principle of PTO Driven Rotary Rake Gearbox:

The PTO driven rotary rake gearbox is an essential component in the operation of a rotary rake, which is used in agriculture to gather cut crops like hay. Here’s a detailed look at how this system works:

1. Power Source Connection
2. Transmission of Power
3. Gearbox Function
4. Output to Rake Arms
5. Rake Operation
6. Control and Adjustments

Maintenance and Lubrication of PTO Driven Rotary Rake Gearbox:

Maintaining and lubricating a PTO driven rotary rake gearbox effectively is essential for ensuring the longevity and optimal performance of your agricultural equipment. Here are the key steps and tips for maintenance and lubrication:

1. Regular Inspection
2. Lubrication
3. Cleaning
4. Check and Tighten Connections
5. Alignment and Balancing
6. Proper Storage

Choose the Right PTO Shaft for the Rotary Rake Gearbox:

Choosing the right PTO shaft for your rotary rake gearbox is critical for ensuring effective and safe operation. Here’s a guide on how to select the appropriate PTO shaft for your equipment:

1. Length of the Shaft
2. Tractor Power and Torque Requirements
3. Match the Tractor’s PTO Output
4. Consider the Type of PTO Shaft
5. Check Compatibility with Safety Features
6. Quality and Durability

Why Choose EVER-POWER’s Rotary Rake Gearbox?

EVER-POWER is a prominent manufacturer of high-performance rotary rake gearboxes for a variety of applications. Our technical staff can reconfigure an existing design or assist you in designing a custom rotary rake gearbox if a standard or existing design does not fit your application.

• • Professionalism: We have a team of experts dedicated to providing top-quality gearbox solutions.
  • International Certifications: Our products meet international quality and safety standards.
  • Customized Services: We offer tailored solutions to meet your specific requirements.
  • Production Facilities: Our manufacturing facilities are equipped with advanced technology for efficient production.
  • After-Sales Services: We provide comprehensive support and maintenance services for our products.
  • Wide Range of Gearboxes: We offer various types of agricultural gearboxes to suit different needs.

Author: Yjx





Tractor PTO Driven Rotary Rake Gearbox Common Applications

Tractor PTO driven rotary rake gearboxes are essential components used in agriculture to gather cut crops like hay efficiently. These gearboxes play a crucial role in the operation of rotary rakes, ensuring optimal performance and productivity. In this article, we will explore the applications, advantages, working principle, maintenance, and selection of the right PTO shaft for rotary rake gearboxes. Let’s dive in!

Advantages of Tractor PTO Driven Rotary Rake Gearbox

• Efficiently gathers cut crops like hay
• Optimizes power transmission from the tractor to the rotary rake
• Adjusts power to optimal speed and torque for the rake operation
• Enhances control and adjustments for different crop types and field conditions
• Improves overall productivity and efficiency in agricultural operations
• Reduces strain on both the tractor and the implement

Applications of Tractor PTO Driven Rotary Rake Gearbox

• Haymaking and forage harvesting
• Field clearing and crop collection
• Landscaping and turf management
• Orchard and vineyard maintenance
• Pasture management and animal feed production
• Agricultural and horticultural applications

Working Principle of PTO Driven Rotary Rake Gearbox

The PTO driven rotary rake gearbox is an essential component in the operation of a rotary rake, used in agriculture to gather cut crops like hay. Here’s a detailed look at how this system works:

• • Power Source Connection
  • Transmission of Power
  • Gearbox Function
  • Output to Rake Arms
  • Rake Operation
  • Control and Adjustments

Maintenance and Lubrication of PTO Driven Rotary Rake Gearbox

Maintaining and lubricating a PTO driven rotary rake gearbox effectively is essential for ensuring the longevity and optimal performance of your agricultural equipment. Here are the key steps and tips for maintenance and lubrication:

• Regular Inspection
• Lubrication
• Cleaning
• Check and Tighten Connections
• Alignment and Balancing
• Proper Storage

Choose the Right PTO Shaft for the Rotary Rake Gearbox

Choosing the right PTO shaft for your rotary rake gearbox is critical for ensuring effective and safe operation. Here’s a guide on how to select the appropriate PTO shaft for your equipment:

• Length of the Shaft
• Tractor Power and Torque Requirements
• Match the Tractor’s PTO Output
• Consider the Type of PTO Shaft
• Check Compatibility with Safety Features
• Quality and Durability

Why Choose EVER-POWER’s Rotary Rake Gearbox?

EVER-POWER is a prominent manufacturer of high-performance rotary rake gearboxes for a variety of applications. Our technical staff can reconfigure an existing design or assist you in designing a custom rotary rake gearbox if a standard or existing design does not fit your application. Here are some reasons to choose EVER-POWER:

• Professionalism: Our team of experts ensures high-quality products and services
• International Certifications: We meet international standards for quality and safety
• Customized Services: We offer tailored solutions to meet your specific requirements
• Production Facilities: State-of-the-art manufacturing facilities for precision engineering
• After-Sales Services: Comprehensive support and maintenance for customer satisfaction

Author: Yjx





The Tractor PTO (Power Take-Off) Driven Rotary Rake Gearbox is a key component used in agricultural machinery, specifically in rotary rakes. This type of gearbox is designed to harness the power generated by a tractor’s engine and transmit it to operate the rotary rake, which is used for collecting cut hay, straw, or similar materials into rows for easier collection and baling.

Applications of Tractor PTO Driven Rotary Rake Gearbox

A tractor PTO driven rotary rake gearbox has various applications in the agricultural sector, particularly in the management of hay, straw, silage, and other crop materials. Here are some specific applications where this type of gearbox is used:

1. Hay Raking:

One of the primary applications of a rotary rake gearbox is in hay raking operations. The gearbox drives the rotary rake, which gathers cut hay from the field into neat windrows, making it easier for subsequent baling or for drying the hay for haylage.

2. Straw Raking:

Similarly, the rotary rake gearbox is used to rake straw after harvest. It helps to collect the straw into windrows, facilitating efficient baling or subsequent processing for various purposes such as animal bedding or mushroom cultivation.

3. Silage Handling:

Silage is a fermented and preserved forage that provides valuable feed for livestock. The rotary rake gearbox is employed to gather and rake freshly cut forage, such as cornstalks, grass, or alfalfa, into windrows for ensiling. Ensiling involves compacting the forage into silage pits or silage bales, and the gearbox assists in the initial gathering of the material.

4. Crop Residue Management:

After the harvest of crops like wheat, rice, or corn, the remaining crop residues, such as straw or corn stalks, need to be managed properly. The rotary rake gearbox can be used to gather and rake these residues, making it easier to collect or process them for various purposes like mulching, composting, or as a source of biomass.

5. Field Cleanup:

In some cases, a rotary rake gearbox can be utilized for general field cleanup operations. It can help gather loose vegetation, debris, or fallen crop material, leaving the field clean and ready for subsequent operations.

Working Principle of Tractor PTO Driven Rotary Rake Gearbox

Tractor PTO driven rotary rake gearbox is an essential component in the operation of a rotary rake, which is used in agriculture to gather cut crops like hay. Here’s a detailed look at how this system works:

Power Source Connection:

The gearbox is connected to a tractor through the PTO shaft. The PTO shaft is a rotating shaft that provides the power (torque and rotation) from the tractor’s engine to the attached implement—in this case, the rotary rake.

Transmission of Power:

Once the PTO shaft is engaged, it rotates and transmits mechanical power from the tractor to the gearbox of the rotary rake. This transmission involves converting the engine’s power into a form that the rake can use effectively.

Gearbox Function:

The gearbox’s primary role is to adjust the power received from the tractor to the optimal speed and torque for the rotary rake’s operation. It typically contains several gears that can increase or decrease the speed and torque according to the requirements of the task. The gears are often configured to provide a reduction in speed, which increases the torque output suitable for the heavy-duty task of moving the rake tines through crop material.

Output to Rake Arms:

From the gearbox, the adjusted power is transferred to the rake’s arms. This is usually achieved through a series of additional shafts and gears, or sometimes through a direct drive system. The power needs to be evenly distributed to ensure smooth operation of the rake tines or arms.

Rake Operation:

The final output of this transmission process is the movement of the rake arms or tines in a sweeping or circular motion. The motion gathers the cut crops, arranging them into neat rows for easier collection and baling. The speed and effectiveness of the rake arms are crucial and can be adjusted via the gearbox to suit different types of crops and conditions.

Control and Adjustments:

Operators can control the PTO and gearbox settings from the tractor, typically adjusting the speed and engagement according to the specific needs of the job, such as crop type, wetness of the material, and field conditions. This control helps optimize the rake’s performance and reduce the strain on both the tractor and the implement.

Maintenance and Lubrication:

Maintaining and lubricating a PTO driven rotary rake gearbox effectively is essential for ensuring the longevity and optimal performance of your agricultural equipment. Here are the key steps and tips for the maintenance and lubrication of this essential component of agricultural machinery:

1. Regular Inspection:

Regularly inspect the gearbox for any oil leaks or cracks in the housing. Leaks can lead to a loss of lubrication and eventual damage to the internal gears. Periodically open the gearbox to check the condition of the gears and bearings.

2. Lubrication:

Ensure that the oil level in the gearbox is maintained at the manufacturer’s recommended level. Low oil levels can lead to overheating and increased wear. Follow the manual’s guidelines on how often to change the gear oil.

3. Cleaning:

After each use, clean any plant material or debris from around the gearbox and the PTO shaft. This prevents overheating and reduces the risk of fire. If the gearbox has ventilation ports, make sure they are clean to allow proper air circulation, which helps to prevent overheating.

4. Check and Tighten Connections:

Regularly check that the gearbox is securely mounted and that all bolts and mounts are tight. Vibration from loose components can lead to increased wear and potential failure. Ensure that the PTO shaft is securely connected and that safety shields are in place to protect against entanglement or injury.

5. Alignment and Balancing:

Check the alignment of the PTO shaft and the gearbox regularly. Misalignment can cause undue stress and wear on the gearbox. Ensure that rotating parts are balanced. Imbalance can lead to vibration, which may cause premature bearing failure and damage to the gearbox.

6. Proper Storage:

When not in use, store the equipment in a covered, dry area to prevent rust and corrosion. Avoid leaving the rotary rake outdoors where it can be exposed to the elements.

Choose the Right PTO Shaft for the Rotary Rake Gearbox

Choosing the right PTO shaft for your rotary rake gearbox is critical for ensuring effective and safe operation. Here’s a guide on how to select the appropriate PTO shaft for your equipment:

(1) Length of the Shaft:

Measure the distance between the tractor’s PTO and the input shaft of the rotary rake when the equipment is in the operating position. Make sure there is enough overlap between the tractor and the implement’s shaft to accommodate movement without disengaging.

(2) Tractor Power and Torque Requirements:

Check the power and torque requirements of the rotary rake. The PTO shaft must be capable of handling the maximum power and torque output of the tractor to avoid failure.

(3) Match the Tractor’s PTO Output:

Match the PTO shaft to the tractor’s PTO output size and spline specification (commonly 6 or 21 splines). This ensures that the shaft will fit securely and transmit power effectively.

(4) Consider the Type of PTO Shaft:

Decide between a standard PTO shaft or a wide-angle PTO shaft. Wide-angle shafts allow for greater angular operation, which is beneficial for equipment that must operate at varying heights or over uneven terrain.

(5) Check Compatibility with Safety Features:

Ensure that the PTO shaft comes with adequate safety guards to protect operators from entanglement or injury. Check that these guards are durable and securely attached.

(6) Quality and Durability:

Look for shafts made from high-quality, durable materials that can withstand the environmental and mechanical stresses of farm work. Opt for brands known for their quality and reliability in agricultural machinery.

Why Choose EVER-POWER’s Rotary Rake Gearbox?

EVER-POWER is a prominent manufacturer of high-performance rotary rake gearboxes for a variety of applications. Our rotary rake gearboxes are a powerful replacement option for John Deere, Case IH, CLAAS, New Holland, Kubota, Lovol, Zoomlion, Krone, Shibaura, Kioti, Challenger, Versatile, Valtra and other brands. Our technical staff can reconfigure an existing design or assist you in designing a custom rotary rake gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing a rotary rake gearbox.

We can also offer many types of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, irrigation reels gearboxes. If you want to buy an agricultural gearbox, please get in touch with us.

Professionalism:

Our team of experienced professionals is dedicated to providing high-quality products and excellent customer service to meet your specific requirements.

International Certifications:

We adhere to strict international quality standards and have obtained certifications that demonstrate our commitment to excellence and reliability.

Customized Services:

We offer customized solutions to tailor our products to your unique needs, ensuring optimal performance and efficiency.

Production Facilities:

Our state-of-the-art production facilities are equipped with the latest technology to ensure precision manufacturing and consistent quality.

After-Sales Services:

We provide comprehensive after-sales support to ensure that our products continue to perform at their best and meet your expectations.

Quality Guarantee:

With a focus on quality and durability, our rotary rake gearboxes are built to last and withstand the rigors of agricultural work.

Author: Yjx

The rotary rake gearbox is a crucial component used in agricultural machinery, specifically designed for rotary rakes, which are tools used to collect cut hay, straw, or similar material into rows for easier collection. This gearbox connects to the tractor’s PTO shaft, which transfers the tractor’s mechanical power to the rotary rake. The gearbox’s primary function is to convert the power into the appropriate speed and torque needed to operate the rake efficiently.

Constructed typically from durable metals such as steel or iron, the gearbox is engineered to withstand the harsh conditions of agricultural work. It often features robust housing that protects the gears and bearing from dirt, debris, and the elements, ensuring long-term reliability and performance. The design usually includes several gears that allow operators to adjust the speed and torque to match different conditions and types of material being raked. This flexibility helps in achieving optimal performance and reduces the strain on both the tractor and the implement, leading to better fuel efficiency and prolonged equipment life.

Advantages of Using a Rotary Rake Gearbox

Using a rotary rake gearbox in agricultural settings offers several significant benefits that enhance both the efficiency and effectiveness of farming operations. Here are some key advantages:

1. Increased Efficiency: The gearbox optimally converts the tractor’s power into the speed and torque required by the rotary rake. This efficient power transmission allows for quicker and more consistent gathering of hay or straw into rows, significantly speeding up the harvesting process.
2. Enhanced Durability: Built from high-quality, robust materials, these rotary rake gearboxes are designed to withstand the rigorous demands of farm work. Their sturdy construction helps resist wear and tear, leading to a longer lifespan and reduced maintenance costs.
3. Versatility: The gearbox can accommodate different raking conditions, making it a versatile component for various agricultural tasks. Whether dealing with heavy, wet material or lighter, dry hay, the gearbox adapts to ensure consistent performance.
4. Improved Crop Handling: Proper use of a rotary rake gearbox helps in maintaining the quality of the crop by ensuring gentle and uniform handling. This is particularly important for preventing damage to materials like hay, which need to retain their shape and quality for baling.
5. Reduced Strain on Equipment: By converting the tractor’s power to the appropriate levels for raking, the gearbox reduces the strain on both the tractor and the rake. This reduction in stress helps prevent wear and tear, lowering maintenance costs and downtime.
6. Safety: With features designed to offer stable and reliable performance, the risk of mechanical failures is reduced, enhancing safety for operators. This is crucial in preventing accidents and ensuring smooth operations on the farm.
7. Ease of Maintenance: Many rotary rake gearboxes are designed with ease of maintenance in mind, featuring accessible components and robust construction that simplifies regular upkeep and repairs.

Common Applications:

The rotary rake gearbox plays a crucial role in various agricultural applications, enhancing the efficiency and effectiveness of farming operations. Here are some key agricultural applications of the gearbox:

• Hay and Forage Raking: The primary application of the rotary rake gearbox is in hay and forage raking. It helps gather cut hay or forage into windrows, facilitating easier and more efficient collection and baling. The gearbox ensures uniform windrows, promoting optimal drying and preserving the nutritional quality of the forage.
• Straw Collection: After the harvest of cereal crops, the gearbox aids in collecting and raking straw into neat rows. This process simplifies straw baling or removal from the field, contributing to cleaner fields and better soil management.
• Pasture Management: In pasture management, the hay rake gearbox is used to clear and collect debris, such as fallen leaves, grass clippings, and other organic matter. This helps maintain healthy pastures and promotes better grass growth by ensuring that the debris does not smother the grass.
• Field Cleaning: The gearbox is instrumental in field cleaning operations, especially after crop harvests. It helps gather crop residues, leaves, and other debris and prepare the field for the next planting season. This practice supports better soil health and reduces the risk of pests and diseases.
• Silage Preparation: In silage production, the rotary rake gearbox aids in gathering chopped forage into windrows before it is collected and stored in silos. The gearbox ensures even and efficient raking, which is crucial for producing high-quality silage with optimal fermentation.
• Leaf Collection: In orchards and vineyards, the hay rake gearbox can be used to collect fallen leaves and prune residues. This application helps maintain clean orchard floors and prevents the spread of diseases and pests that thrive on decaying organic matter.

Key Components:

The rotary rake gearbox is a sophisticated piece of machinery that comprises several key components, each playing a crucial role in its operation and efficiency. Here are the primary components of this gearbox:

• Housing: The housing, typically made of durable materials like cast iron or steel, encases and protects the internal components of the gearbox from external elements such as dust, dirt, and moisture. It provides structural integrity and ensures the longevity of the gearbox.
• Input Shaft: The input shaft is the component that connects to the tractor’s PTO (Power Take-Off) shaft. It transmits the mechanical power from the tractor to the gearbox, initiating the power conversion process.
• Gears: The gears are the heart of the gearbox and are responsible for converting the speed and torque from the input shaft to the appropriate levels required by the rotary rake. The types of gears commonly found in a rotary rake gearbox include: Spur Gears: These are simple, straight-toothed gears that mesh with each other to transfer power efficiently. Bevel Gears: These gears have angled teeth and are used to change the direction of power transmission within the gearbox.
• Bearings: Bearings support and allow smooth rotation of the shafts within the gearbox. They reduce friction between moving parts, ensuring efficient power transmission and extending the life of the gearbox. Common types of bearings used include ball bearings and roller bearings.
• Output Shaft: The output shaft transfers the converted power from the gearbox to the rotary rake. It ensures that the rake operates at the desired speed and torque, enabling effective raking performance.
• Seals and Gaskets: These components prevent the ingress of contaminants, such as dirt and moisture, into the gearbox and retain lubrication within the housing. High-quality seals and gaskets are essential for maintaining the gearbox’s efficiency and longevity.
• Lubrication System: A proper lubrication system is vital for reducing friction and wear between the moving parts of the gearbox. This system typically includes oil or grease and may feature lubrication ports or reservoirs to facilitate maintenance.

Working Principle of Rotary Rake Gearbox for Hay and Forage Raking

The gearbox for rotary rake is an essential component in agricultural machinery used for hay and forage raking. Its working principle revolves around efficiently transferring and converting the power from the tractor to the mechanical motion required for the rotary rake to perform its function. Here’s how the PTO driven rotary rake gearbox operates:

1. Power Transmission: The process begins when the tractor’s PTO shaft, which extends from the rear of the tractor, provides rotational power. This shaft is specifically designed to deliver the tractor’s engine power to attached implements like the rotary rake.
2. Gearbox Activation: The rotational force from the PTO shaft is directed into the gearbox through its input shaft. The input shaft is connected to the tractor’s PTO via a drive shaft and universal joints, which accommodate the movement and alignment between the tractor and the rake.
3. Speed and Torque Conversion: Inside the gearbox, the input shaft’s rotational power engages a series of gears. These gears are crucial for adjusting the speed and torque of the mechanical power received from the tractor. Depending on the design, the gearbox may use different types of gears (such as spur or bevel gears) to modify the power characteristics to suit the needs of the rotary rake. The gear arrangement is typically designed to reduce the input speed to a more suitable speed for raking, while simultaneously increasing the torque to provide sufficient force for effective operation.
4. Output Delivery: Once the power has been appropriately converted, it is transferred to the output shaft of the gearbox. This output shaft then drives the rotary rake’s mechanism—usually a series of tine arms or raking wheels. The movement and speed of these tines or wheels are precisely controlled by the gearbox’s output, which ensures that they rotate at optimal speeds to collect and organize hay or forage into windrows efficiently.
5. Raking Action: As the rotary rake moves over the field, the tines gently lift and aerate the cut hay or forage, arranging it into neat, uniform rows. This not only helps in drying the material but also prepares it for the next steps in the harvesting process, such as baling.
6. Adjustment Features: Many rotary rake gearboxes come equipped with adjustment features that allow the operator to change the operating parameters, such as the height and angle of the rake tines, to adapt to different crop conditions and terrain variations. These adjustments can often be made directly from the tractor’s cab, providing convenience and enhancing productivity.

Installation Tips:

Installing a PTO-driven rotary rake gearbox for hay and forage raking involves several steps that require careful attention to detail to ensure safe and efficient operation. Here’s a detailed guide on how to install a rotary rake gearbox:

• Preparation and Safety Checks: Before beginning the installation, ensure that the tractor and all equipment are turned off and stabilized. Check the compatibility of the gearbox with both the tractor and the rotary rake. Gather all necessary tools and read the manual’s installation manual thoroughly to understand any specific requirements or precautions.
• Mounting the Gearbox: Attach the gearbox to the rotary rake’s frame using the provided mounting brackets and bolts. Ensure that the gearbox is securely fastened and aligned correctly. The alignment is crucial as it affects the efficiency of power transmission and the longevity of the gearbox.
• Connecting to the Tractor’s PTO Shaft: Align the input shaft of the gearbox with the tractor’s PTO shaft. Carefully connect the drive shaft to the PTO shaft using appropriate couplings. Ensure that the shafts are securely connected and that the protective shield over the PTO shaft is properly installed to prevent accidents.
• Adjusting the Drive Shaft: Adjust the length and angle of the drive shaft to accommodate the distance and relative height between the tractor’s PTO and the gearbox. This adjustment is crucial to avoid excessive stress or binding of the drive shaft during operation, which can lead to premature wear or failure.
• Lubrication: Before the first use, make sure that the gearbox is adequately lubricated according to the manual’s specifications. Check the oil level and fill if necessary. Regularly maintain the lubrication during the lifecycle of the gearbox to ensure smooth operation and to protect the internal components from wear.
• Testing and Calibration: Once the installation is complete, conduct a test run to check for proper installation and functionality. Engage the PTO at a low speed initially to observe any unusual vibrations or noises. Adjust the rake tines for proper ground contact and performance based on field conditions. Calibration may involve setting the correct height and angle of the rake to ensure optimal performance and minimize wear on the gearbox.

Best Practices for Longevity of Tractor PTO Rotary Rake Gearbox

To ensure the longevity and optimal performance of a rotary rake gearbox, it’s essential to adhere to best practices in maintenance and operation. Here are some key guidelines:

1. Regular Lubrication: Consistent lubrication is critical for reducing friction and preventing wear and tear on the gearbox components. Use the type and grade of lubricant recommended by the manual and check the lubricant levels regularly. Change the lubricant according to the usage frequency and manual’s guidelines—usually at least once per season or more often in dusty or wet conditions.
2. Routine Inspections: Conduct thorough inspections of the gearbox before and after each use. Look for signs of wear, damage, or leaks. Pay special attention to the integrity of seals and gaskets to prevent contaminants from entering the gearbox. Also, check for any loose bolts or mounts, as these can lead to misalignments and abnormal operation.
3. Proper Alignment and Balancing: Ensure that the gearbox is always properly aligned with the tractor’s PTO shaft and the rotary rake. Misalignment can cause excessive wear and tear, reducing the efficiency and lifespan of the gearbox. If the rotary rake or gearbox is detached and reattached frequently, re-check alignment regularly.
4. Avoid Overloading: Operate the rotary rake within the recommended limits. Avoid overloading the gearbox by trying to rake excessively wet or dense material, which can strain the gearbox beyond its capacity. Adhering to the recommended tractor speed and PTO settings will also help prevent excessive stress on the gearbox.
5. Cleanliness and Debris Removal: After each use, clean the gearbox and surrounding areas to remove debris, dirt, and plant material. This prevents the buildup of materials that can retain moisture and cause corrosion or clog moving parts, leading to overheating and increased wear.
6. Timely Repairs and Parts Replacement: If inspections reveal any issues, such as worn gears or damaged bearings, address these problems promptly. Using genuine parts for replacements ensures compatibility and can extend the lifespan of the gearbox. Delaying repairs can lead to more severe damage and potentially costly overhauls.

Agricultural PTO Shaft for Rotary Rake Gearbox

The agricultural PTO (Power Take-Off) shaft and rotary rake gearbox are integral components in modern farming machinery, working together to facilitate efficient hay and forage raking operations. The PTO shaft serves as a mechanical link between the tractor and the rotary rake, transmitting power from the tractor’s engine to the implement. When the tractor’s PTO is engaged, it rotates the PTO shaft, which in turn transfers this rotational power to the rotary rake gearbox.

The rotary rake gearbox receives the rotational energy from the PTO shaft through its input shaft. Its primary function is to convert the high-speed, low-torque input from the PTO shaft into a suitable speed and torque necessary for the efficient operation of the rotary rake. Inside the gearbox, a series of gears adjust the power characteristics to ensure that the rake operates at an optimal speed for raking hay and forage into uniform windrows.

This conversion process is crucial because it allows the rotary rake to perform its task without causing undue stress or damage to the equipment. By managing the speed and torque, the gearbox ensures that the rake tines or wheels can effectively gather and arrange the cut material, improving drying times and making subsequent collection processes more efficient.

The connection between the PTO shaft and the rotary rake gearbox is fundamental to the performance and productivity of agricultural raking operations. The PTO shaft provides the necessary power, while the gearbox optimizes this power for practical use, ensuring smooth, reliable, and effective raking. Together, they enhance the efficiency and longevity of agricultural machinery, supporting better farm management and higher-quality forage production.

Why Choose EVER-POWER’s Rotary Rake Gearbox?

EVER-POWER is a leading company specializing in the production and sale of high-quality rotary rake gearboxes. With a robust manufacturing facility and advanced technological capabilities, our company stands out in the industry for its innovation and precision engineering. Our rotary rake gearboxes are designed as powerful replacement options for renowned brands such as John Deere, Case IH, CLAAS, New Holland, Kubota, Lovol, Zoomlion, Krone, Shibaura, Kioti, Challenger, Versatile, and Valtra, among others.

Our rotary rake gearboxes boast exceptional durability, high efficiency, and optimal performance, making them ideal for hay and forage raking applications. They are engineered to convert and transfer power effectively, ensuring smooth operation and extended equipment life. These gearboxes are built to withstand the rigors of agricultural work, providing reliable performance in various conditions.

EVER-POWER is recognized for its expertise and influence in the rotary rake gearbox sector. Our commitment to quality is evident through our international certifications and the extensive range of customizable solutions we offer to meet specific customer needs. Our state-of-the-art production facilities and dedicated after-sales service ensure customer satisfaction and long-term reliability.

In addition to rotary rake gearboxes, we also supply a wide array of agricultural gearboxes and PTO shafts, including rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, irrigation reels gearboxes.EVER-POWER is your trusted partner for all agricultural machinery needs, delivering superior products and exceptional service worldwide.

If you want to buy an agricultural gearbox, please get in touch with us.

Author: Yjx
