Spiral Bevel Gear Measurement Techniques (e.g., CMM)

Introduction

In the field of mechanical engineering, accurate measurement of spiral bevel gears is crucial for ensuring their functionality and performance. Coordinate Measuring Machines (CMMs) are widely used in the industry to achieve precise measurements of these gears. This article will explore various measurement techniques and discuss their significance in the manufacturing process.

1. Gear Terminology and Definitions

Before delving into the measurement techniques, it is essential to understand the terminology and definitions associated with spiral bevel gears. Familiarity with these terms will provide a solid foundation for comprehending the subsequent discussions.

2. CMM Basics and Principles

CMMs are sophisticated measuring instruments used to collect data points from the surface of a gear. They operate based on the principles of coordinate metrology and utilize a probe to measure the spatial coordinates of predefined points. Understanding the basics and principles of CMMs is crucial for optimizing their usage in gear measurement.

3. Gear Measurement Using CMM

When it comes to measuring spiral bevel gears, CMMs offer several advantages. This section will explore the step-by-step process of gear measurement using CMMs, highlighting the significance of each stage along the way.

3.1 Preparation of Gear for Measurement

Before placing the gear on the CMM, it is essential to ensure that it is clean and free from any debris or contaminants. Additionally, the gear needs to be securely fixed in a suitable fixture to prevent any movement during the measurement process.

3.2 Alignment and Calibration

Prior to measuring the gear, it is crucial to align the CMM and calibrate it to establish a reference frame. This step ensures accurate and consistent measurements throughout the process.

3.3 Probing and Data Collection

Using the CMM probe, data points are collected from the surface of the gear. These data points capture the intricate details of the gear’s geometry, enabling precise analysis and measurement.

3.4 Analysis and Interpretation

Once the data points are collected, they are processed and analyzed to determine the gear’s dimensional accuracy, tooth profile, and other relevant parameters. This analysis is crucial for quality control and ensuring the gear meets the required specifications.

4. Advantages of CMM in Gear Measurement

The utilization of CMMs in gear measurement offers several distinct advantages:

Precision and Accuracy: CMMs enable highly accurate measurements, ensuring the gears meet the required tolerances.
Efficiency: The automated nature of CMMs allows for rapid measurement, reducing inspection time and increasing productivity.
Data Analysis: CMMs provide comprehensive data sets, facilitating in-depth analysis and evaluation of gear performance.
Repeatability: CMMs offer consistent measurement results, allowing for reliable quality control and comparison between gears.

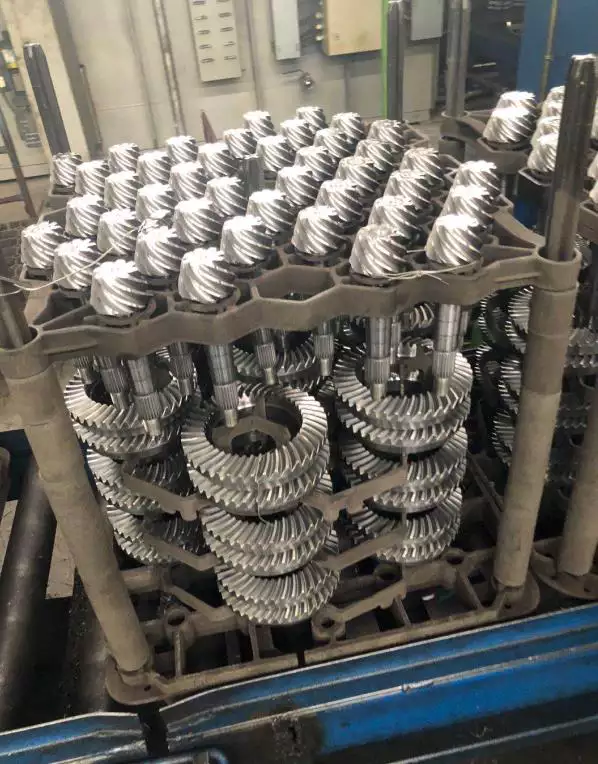

Gear Factory

After understanding the significance of accurate gear measurement, it is essential to entrust the manufacturing process to a reputable and experienced gear factory. At Ever Power, we specialize in producing high-quality gears and utilize advanced manufacturing techniques to meet customer requirements.

Manufacturing Process and Techniques

1. Blank Preparation: Forging and Heat Treatment

The first step in our manufacturing process is the preparation of the gear blank. This involves forging the blank to achieve the desired shape and then subjecting it to heat treatment for improved strength and durability.

2. Rough Machining: Turning, Drilling, and Boring

After the blank preparation, the rough machining process begins. This stage involves turning the blank to achieve the desired outer diameter and drilling or boring any necessary holes or cavities.

3. Forming Process: Gear Hobbing, Gear Shaping, and Gear Milling

Once the rough machining is complete, the gear undergoes the forming process. This includes gear hobbing, gear shaping, or gear milling, depending on the specific requirements and design of the gear.

4. Semi-Finishing: Chamfering, Keyway Cutting, and Deburring

After the forming process, the gear moves on to the semi-finishing stage. Here, the gear is chamfered to remove sharp edges, keyway slots are cut, and any burrs or imperfections are removed.

5. Heat Treatment: Carburizing, Nitriding or Quenching, Tempering

To enhance the gear’s hardness, wear resistance, and overall performance, heat treatment is applied. Carburizing, nitriding, quenching, and tempering techniques are employed to achieve the desired material properties.

6. Finishing: Gear Grinding and Honing

After heat treatment, the gear proceeds to the finishing stage, where it undergoes gear grinding and honing. These processes ensure the gear’s surface finish, dimensional accuracy, and noise reduction.

7. Inspection and Acceptance: Gear Testing and Surface Treatment

Before the gears are ready for use, they undergo thorough inspection and acceptance procedures. Gear testing techniques, such as tooth profile measurement, backlash measurement, and surface treatment evaluation, are employed to ensure the gears meet the specified requirements.
