Selecting Chain Teeth for Tractor 3 Point Hitch Chain Trencher

What is a Tractor 3 Point Hitch Chain Trencher?

A tractor 3 point hitch chain trencher is a highly specialized piece of equipment designed for creating trenches in the soil. This powerful tool attaches to a tractor via the three-point hitch system and uses the tractor’s Power Take-Off (PTO) to drive the trenching chain. The trenching chain, equipped with specially designed teeth, cuts through the soil to create precise trenches for various applications such as laying pipes, cables, or drainage systems.

Advantages of Selecting the Right Chain Teeth for Your Trencher

The selection of the right chain teeth for your trencher holds many advantages:

  1. Efficiency: Properly selected teeth enhance the trencher’s efficiency, enabling it to cut through soil smoothly and quickly.
  2. Durability: The right teeth are designed to withstand the harsh trenching conditions, increasing the lifespan of the trencher.
  3. Versatility: Different teeth configurations can handle different soil types and trenching requirements, offering versatility in various projects.
  4. Safety: Properly fitted and selected teeth reduce the risk of equipment failure and accidents.
  5. Ease of Maintenance: Correct teeth selection simplifies maintenance tasks, saving time and effort.
  6. Cost-Effectiveness: By optimizing performance and reducing maintenance needs, the right teeth can significantly lower operational costs.

At EVER-POWER, we can produce tractor 3 point hitch chain trenchers with chain teeth that perfectly match your specific needs and soil conditions.

Applications of Tractor 3 Point Hitch Chain Trencher

Tractor 3 point hitch chain trenchers are versatile machines used in various applications:

  1. Laying Pipes: They are used to dig trenches for laying water, gas, or sewer pipes.
  2. Installing Cables: They are perfect for digging trenches for laying electrical or communication cables.
  3. Building Drainage Systems: They are used in constructing drainage systems in agricultural fields or construction sites.

  4. Landscaping: They are used for creating irrigation lines or planting trees in landscaping projects.
  5. Road Construction: They can dig trenches for installing roadside barriers or drainage systems.
  6. Building Foundations: They can excavate trenches for building foundations or footings.

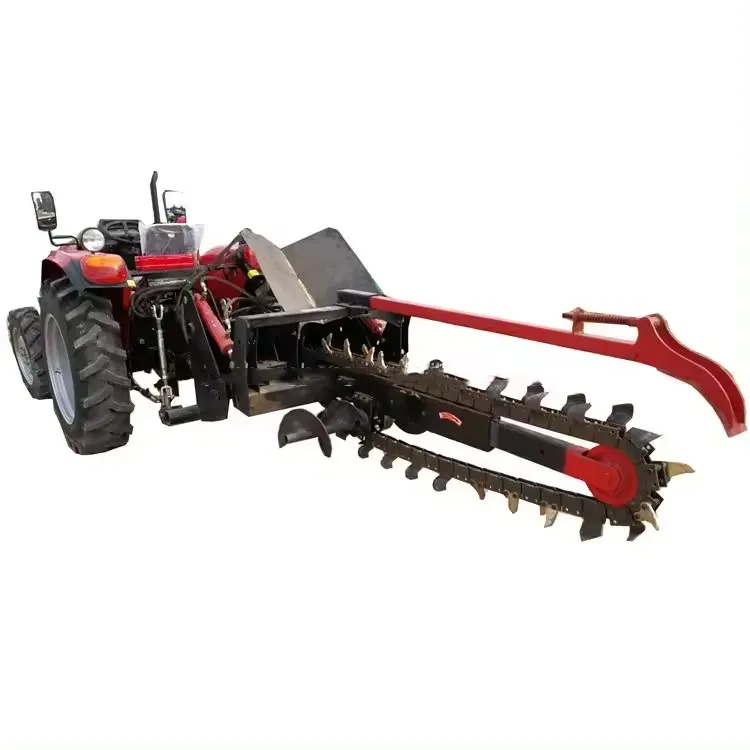

Key Components of Tractor 3 Point Linkage Chain Trencher

Understanding the key components of a tractor 3 point linkage chain trencher is crucial for its proper operation, maintenance, and troubleshooting. Here are the essential parts:

  1. Three-Point Hitch: Provides the means to securely attach the trencher to the tractor. This system includes two lower arms and an upper link, which facilitate easy connection and allow for adjustments in the trencher’s angle and depth.
  2. Power Take-Off (PTO) Shaft: Transfers power from the tractor to the trencher. The PTO shaft is a critical component that drives the trencher’s chain mechanism.
  3. Digging Chain: The primary tool for trenching, this chain is equipped with cutting teeth designed to efficiently break through the soil.
  4. Boom: Supports the digging chain and determines the depth of the trench being dug.
  5. Drive System: Includes gears and possibly a hydraulic motor that converts the PTO’s rotational energy into the movement needed to drive the digging chain.
  6. Soil Ejection System: Clears excavated soil from the trench path. Depending on the trencher model, this may involve a simple deflector plate or a more complex conveyor system.

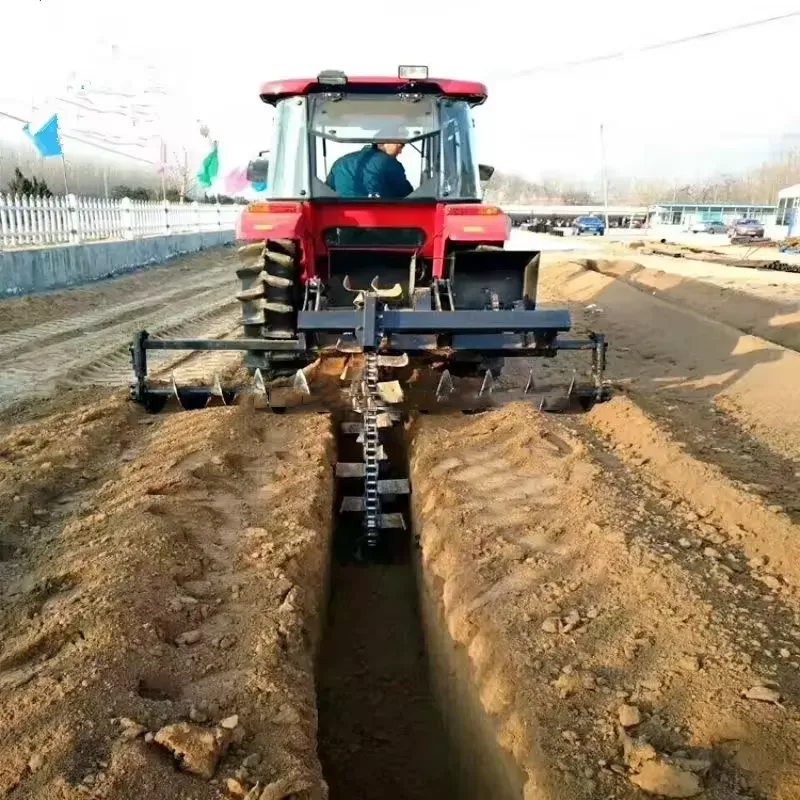

Working Principle of Tractor 3 Point Mounted Chain Trencher

The tractor 3-point linkage chain trencher is a specialized tool designed for creating trenches in the soil. Here’s a detailed look at how it operates:

  1. Attachment and Power Source: The trencher is attached to the tractor using the three-point hitch system. The PTO then powers the trencher.
  2. Trenching Mechanism: The heart of the trencher is its digging chain, which resembles a large chainsaw blade. This chain is mounted on a metal frame called a boom.
  3. Soil Ejection: As the trencher digs, the design of the chain and teeth allows for the excavated soil to be lifted out of the trench and deposited alongside it.
  4. Depth Control: The depth of the trench is controlled via the three-point linkage system of the tractor, allowing the operator to adjust how deep the boom and chain dig into the soil.

Operation Precautions for Tractor 3 Point Mounted Chain Trencher

Operating a tractor 3-point mounted chain trencher involves handling heavy machinery and sharp components, making safety and precaution paramount. Here are essential operation precautions to ensure safe and efficient trenching:

  1. Equipment Preparation: Conduct a thorough inspection of the trencher and tractor. Look for loose bolts, worn teeth, and proper chain tension, and ensure all safety guards are in place.
  2. Avoid Overloading: Begin trenching at a slow speed to ensure the trencher is functioning correctly before proceeding at full operation speed.
  3. Monitor Trencher Performance: Regularly check the trencher for clogs or jams. If you notice any issues, stop the tractor and trencher, and inspect for obstructions.
  4. Handling and Maneuvering: Avoid trenching on steep slopes or uneven terrain where the tractor could tip or slide, compromising operator safety.
  5. Clean and Inspect: After each use, clean the trencher, removing soil and debris. Inspect it for any signs of wear or damage, especially the chain, teeth, and PTO shaft.
  6. Regular Maintenance: Follow a regular maintenance schedule as recommended by the manufacturer.

Why Choose EVER-POWER’s Tractor Mounted Chain Trencher?

EVER-POWER Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery for over ten years. We produce a wide range of farming machinery, planting machinery, harvesting machinery, and their accessories. Our products are complete in specifications, excellent in performance, and reliable in quality. They are sold all over the country and exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.

Professionalism and Certifications

At EVER-POWER, we are committed to delivering the highest level of professionalism and quality. Our production processes are certified by international standards, ensuring the reliability and durability of our products.

Customized Services

We understand that each customer’s needs are unique. Therefore, we offer customized services to tailor our products to meet your specific requirements.

Production Facilities

Our state-of-the-art production facilities are equipped with advanced machinery and technology, allowing us to produce top-quality and reliable products.


After-Sales Services

Our commitment to our customers goes beyond the sale. We offer comprehensive after-sales services, including technical support, maintenance, and repair services, ensuring that our customers get the most out of their investment.
