Quick Setup Guide for PTO Wood Chippers

What is a PTO Wood Chipper?

A PTO (Power Take-Off) wood chipper is a high-powered piece of equipment designed to chip or shred wood into smaller, manageable pieces. This machine is often used in agricultural or landscaping operations and is typically attached to a tractor using a 3-point hitch system. It operates by harnessing the power of the tractor’s PTO, eliminating the need for its own engine.

Advantages of the PTO Wood Chipper

The PTO wood chipper offers numerous advantages:

  • It is efficient, capable of processing a large volume of wood in a short amount of time.
  • It is versatile and can handle different types of wood, from branches and twigs to logs and stumps.
  • It is economical as it utilizes the tractor’s power, reducing the need for additional fuel or maintenance.
  • It is durable and built to last, often made with heavy-duty materials to withstand tough conditions.
  • It is easy to operate with safety features designed to protect the user.
  • At EVER-POWER, we can produce high-quality PTO wood chippers, ensuring their effectiveness and longevity.

Applications of the PTO Wood Chipper

The PTO wood chipper has a wide range of applications:

  • It is used in forestry to manage and clear wood waste.
  • It is used in agriculture for land clearing and preparation.

  • It is used in gardening and landscaping to create mulch or compost.
  • It is used in construction and demolition to manage wood waste.
  • It is used in paper mills to produce wood pulp.
  • It is used in biomass power plants to generate fuel.

Structural Components of the PTO Wood Chipper

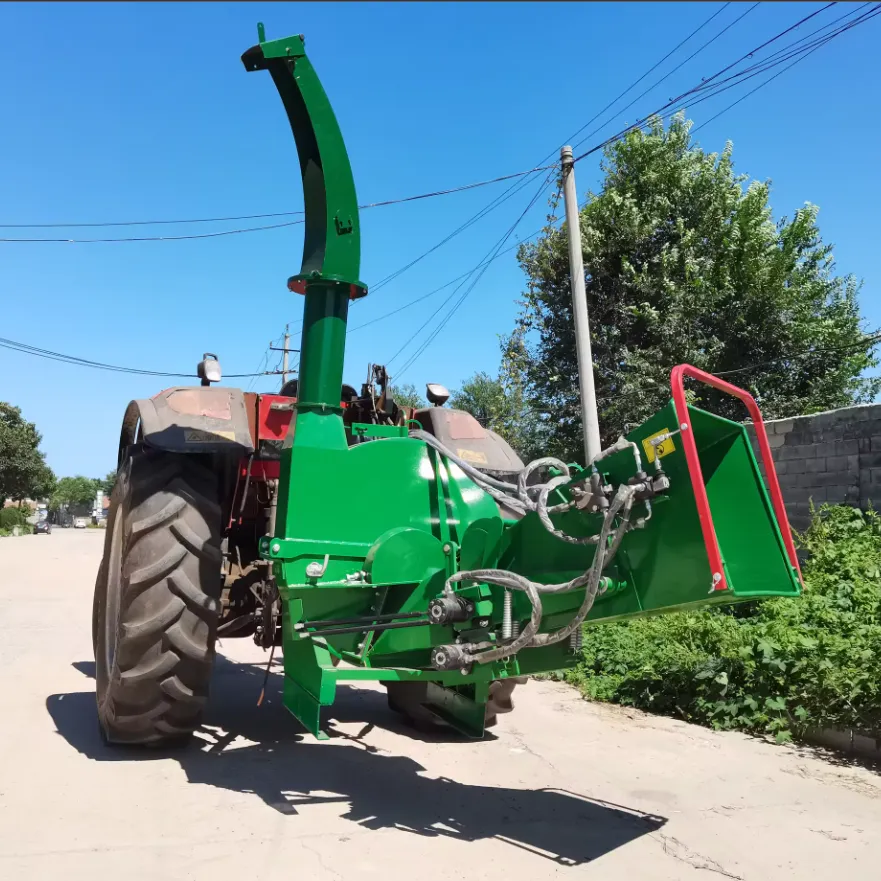

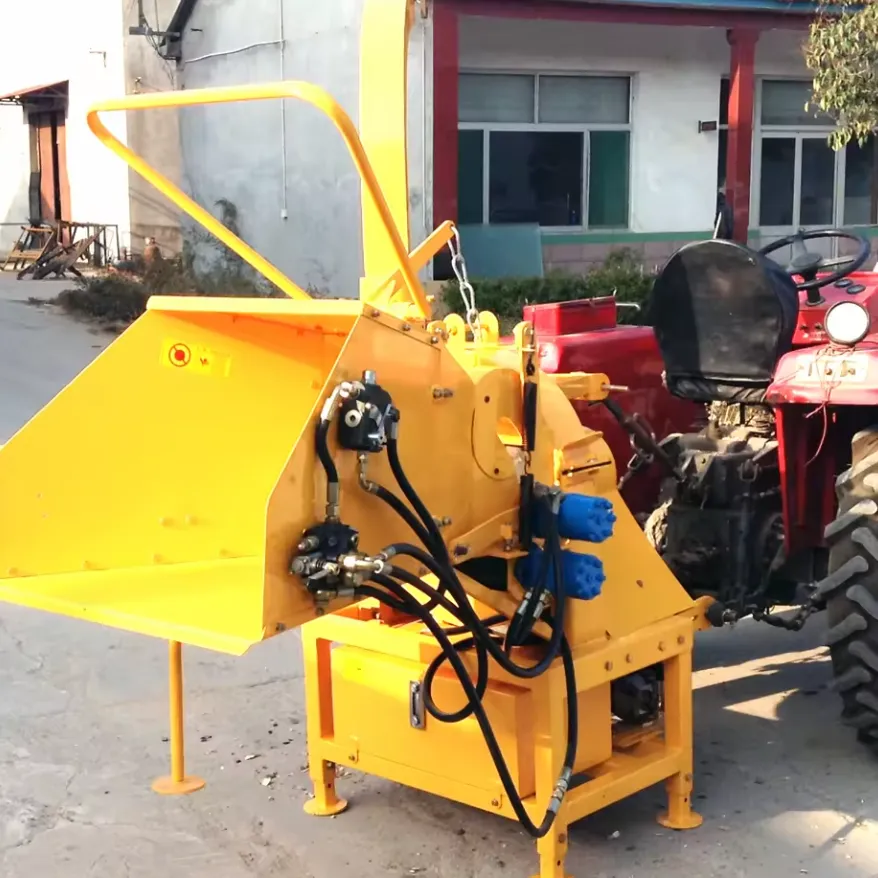

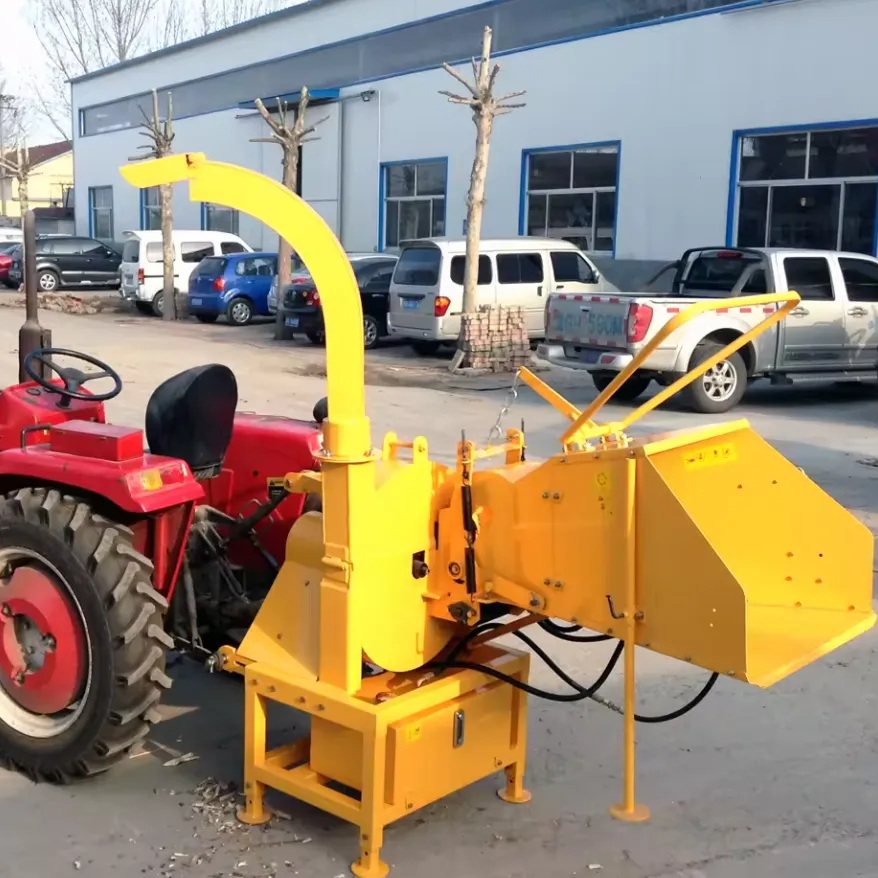

A tractor 3-point hitch PTO wood chipper has several key structural components:

  1. 3-Point Hitch Attachment: This connects the wood chipper to the tractor. It consists of two lower arms and one upper arm that attach to corresponding points on the tractor for stability during operation.
  2. PTO Shaft: This transfers mechanical power from the tractor to the wood chipper, enabling the chipper’s cutting mechanism to function.
  3. Hopper: This is where branches, limbs, and other wood debris are fed into the chipper. Its design is crucial for user safety and efficient feeding of materials into the chipper blades.
  4. Chipping Mechanism: This includes the blades or knives that chip the wood into smaller pieces. The mechanism typically consists of a heavy-duty steel disc or drum that houses the cutting blades.
  5. Discharge Chute: After the wood has been chipped, the pieces are ejected from the machine through the discharge chute. The chute directs the chips away from the machine and into a designated area or container.

Working Principle of the Tractor 3 Point Hitch PTO Wood Chipper

The working principle of a tractor 3-point hitch PTO wood chipper involves several key steps:

  1. Connection and Power Transfer: The wood chipper is attached to the tractor using the 3-point hitch system. Once the PTO shaft is connected, the wood chipper’s PTO shaft is linked to the tractor’s PTO stub, transferring power from the tractor’s engine to the wood chipper.
  2. Wood Feeding: Operators feed branches, limbs, and other wood debris into the chipper through the hopper. This component guides the wood safely into the chipping mechanism while keeping the operator at a safe distance from the cutting blades.
  3. Chipping Process: Inside the wood chipper, the PTO’s power activates the chipping mechanism. As the wood enters the chipping area, the rotating blades cut the wood into small chips.
  4. Discharge Chute: After the wood has been chipped, the pieces are expelled from the machine through the discharge chute. This chute directs the wood chips away from the machine, often into a collection container or onto the ground.
  5. Control and Adjustments: Operators can make adjustments to the chipper, such as changing the chip size or modifying the feed rate, depending on the chipper model and its features.

Installation Operation of the PTO Wood Chipper

Installing a 3-point hitch PTO wood chipper to a tractor involves several steps:

  1. Inspect Equipment: Check both the tractor and the wood chipper for any damage or wear that could affect operation or safety.
  2. Aligning the 3-Point Hitch: Use the tractor’s controls to lower the 3-point hitch to its lowest position. Then, align the attachment points of the wood chipper with the hitch arms and top link of the tractor.
  3. Connecting the Hitch: Attach the lower arms of the 3-point hitch to the mounting points on the wood chipper. Use the locking pins provided to secure them in place.
  4. Connecting the PTO Shaft: Align the PTO shaft of the wood chipper with the PTO stub on the tractor. Ensure the shaft is the correct length and slide the PTO shaft onto the tractor’s PTO stub.
  5. Inspect the Installation: Double-check all connections to ensure they are secure, and make sure there are no loose parts and that the chipper is properly aligned with the tractor.
  6. Test Run: Start the tractor and engage the PTO at a low RPM to ensure everything is working correctly.

Choosing the Right PTO Shaft for a PTO Wood Chipper

Choosing the right PTO shaft for a tractor 3-point hitch PTO wood chipper involves considering several factors:

  1. Determine the PTO Size and Speed: Check your tractor’s PTO output size and speed. Your wood chipper must be compatible with the tractor’s PTO size and speed.
  2. Wood Chipper Requirements: Verify the input requirements of your wood chipper, focusing on the recommended PTO size and operational speed.
  3. Length of the PTO Shaft: Measure the distance between the tractor’s PTO and the chipper’s PTO connection point when they are hitched together.
  4. Torque and Power Rating: Ensure that the PTO shaft’s torque and power rating matches or exceeds the maximum output of the tractor and the input requirements of the wood chipper.
  5. Safety Features: Some PTO shafts come with safety features like a shear bolt or a slip clutch to protect the tractor, chipper, and shaft in case of a jam or overload.
