Preventative Maintenance for Tractor PTO Rotary Rake Gearbox

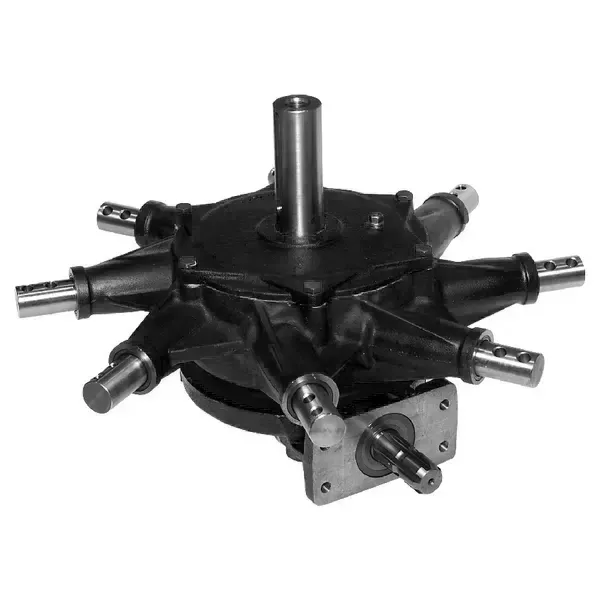

The PTO driven rotary rake gearbox is an essential component in the operation of a rotary rake, which is used in agriculture to gather cut crops like hay. Here’s a detailed look at how this system works:

1. Power Source Connection:

The gearbox is connected to a tractor through the PTO shaft. The PTO shaft is a rotating shaft that provides the power (torque and rotation) from the tractor’s engine to the attached implement—in this case, the rotary rake.

2. Transmission of Power:

Once the PTO shaft is engaged, it rotates and transmits mechanical power from the tractor to the gearbox of the rotary rake. This transmission involves converting the engine’s power into a form that the rake can use effectively.

3. Gearbox Function:

The gearbox’s primary role is to adjust the power received from the tractor to the optimal speed and torque for the rotary rake’s operation. It typically contains several gears that can increase or decrease the speed and torque according to the requirements of the task.

4. Output to Rake Arms:

From the gearbox, the adjusted power is transferred to the rake’s arms. This is usually achieved through a series of additional shafts and gears, or sometimes through a direct drive system.

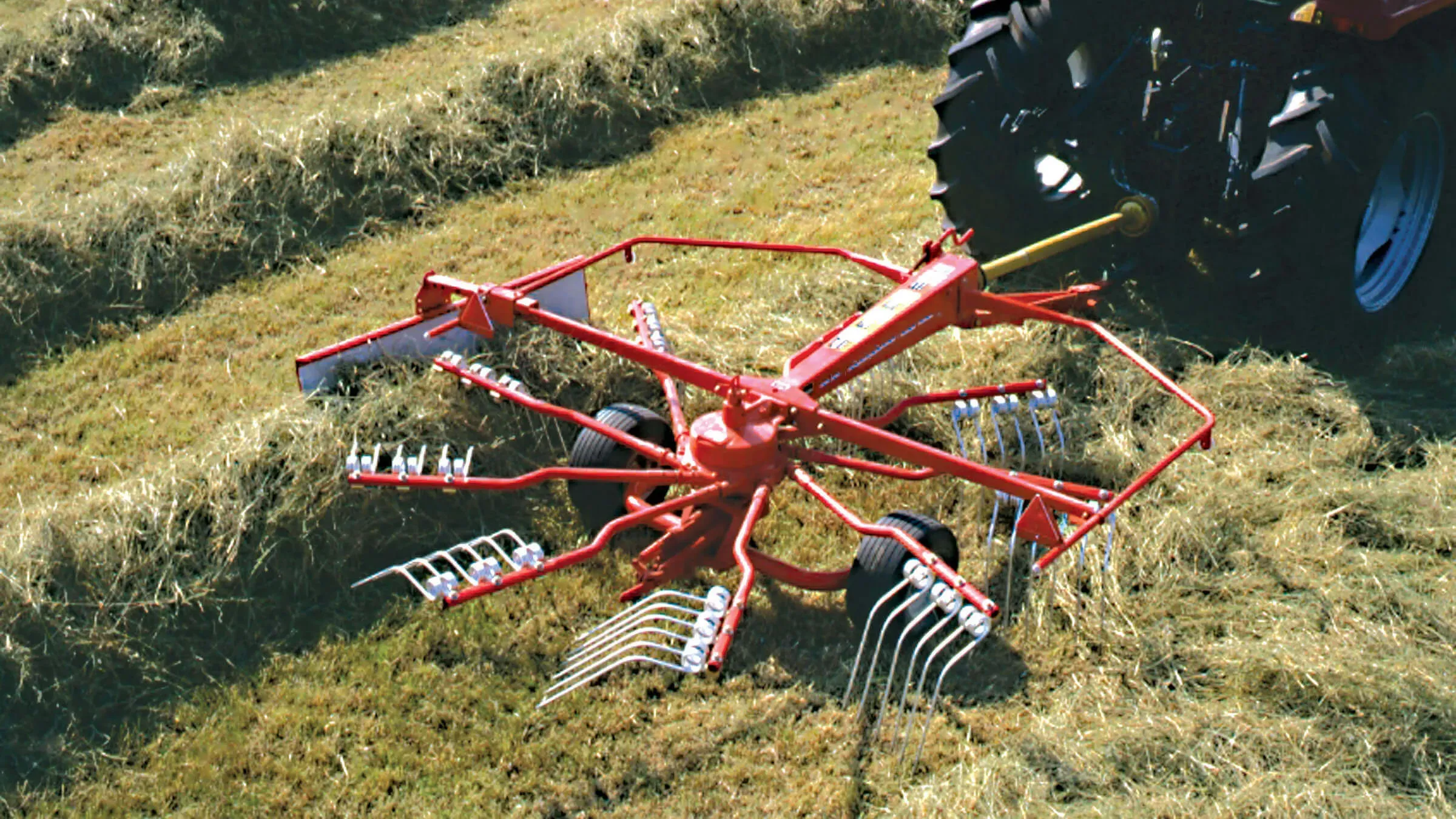

5. Rake Operation:

The final output of this transmission process is the movement of the rake arms or tines in a sweeping or circular motion. The motion gathers the cut crops, arranging them into neat rows for easier collection and baling.

6. Control and Adjustments:

Operators can control the PTO and gearbox settings from the tractor, typically adjusting the speed and engagement according to the specific needs of the job, such as crop type, wetness of the material, and field conditions.

Maintenance and Lubrication of PTO Driven Rotary Rake Gearbox

Maintaining and lubricating a PTO driven rotary rake gearbox effectively is essential for ensuring the longevity and optimal performance of your agricultural equipment. Here are the key steps and tips for the maintenance and lubrication of this essential component of agricultural machinery:

1. Regular Inspection:

Regularly inspect the gearbox for any oil leaks or cracks in the housing. Leaks can lead to a loss of lubrication and eventual damage to the internal gears.

2. Lubrication:

Ensure that the oil level in the gearbox is maintained at the manufacturer’s recommended level. Low oil levels can lead to overheating and increased wear.

3. Cleaning:

After each use, clean any plant material or debris from around the gearbox and the PTO shaft. This prevents overheating and reduces the risk of fire.

4. Check and Tighten Connections:

Regularly check that the gearbox is securely mounted and that all bolts and mounts are tight. Vibration from loose components can lead to increased wear and potential failure.

5. Alignment and Balancing:

Check the alignment of the PTO shaft and the gearbox regularly. Misalignment can cause undue stress and wear on the gearbox.

6. Proper Storage:

When not in use, store the equipment in a covered, dry area to prevent rust and corrosion. Avoid leaving the rotary rake outdoors where it can be exposed to the elements.

Choose the Right PTO Shaft for the Rotary Rake Gearbox

Choosing the right PTO shaft for your rotary rake gearbox is critical for ensuring effective and safe operation. Here’s a guide on how to select the appropriate PTO shaft for your equipment:

1. Length of the Shaft:

Measure the distance between the tractor’s PTO and the input shaft of the rotary rake when the equipment is in the operating position.

2. Tractor Power and Torque Requirements:

Check the power and torque requirements of the rotary rake. The PTO shaft must be capable of handling the maximum power and torque output of the tractor to avoid failure.

3. Match the Tractor’s PTO Output:

Match the PTO shaft to the tractor’s PTO output size and spline specification (commonly 6 or 21 splines). This ensures that the shaft will fit securely and transmit power effectively.

4. Consider the Type of PTO Shaft:

Decide between a standard PTO shaft or a wide-angle PTO shaft. Wide-angle shafts allow for greater angular operation, which is beneficial for equipment that must operate at varying heights or over uneven terrain.

5. Check Compatibility with Safety Features:

Ensure that the PTO shaft comes with adequate safety guards to protect operators from entanglement or injury.

6. Quality and Durability:

Look for shafts made from high-quality, durable materials that can withstand the environmental and mechanical stresses of farm work.

Why Choose EVER-POWER’s Rotary Rake Gearbox?

EVER-POWER is a prominent manufacturer of high-performance rotary rake gearboxes for a variety of applications. Our technical staff can reconfigure an existing design or assist you in designing a custom rotary rake gearbox if a standard or existing design does not fit your application.

Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing a rotary rake gearbox.

We can also offer many types of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, and more.

Professionalism:

Our team of experts is dedicated to providing high-quality products and services to meet your agricultural gearbox needs.

International Certifications:

Our products meet international quality and safety standards, ensuring reliability and performance.

Customized Services:

We can customize rotary rake gearboxes to fit your specific requirements and applications.

Production Facilities:

Our state-of-the-art production facilities are equipped to manufacture high-quality gearboxes efficiently.

After-Sales Services:

We provide excellent after-sales support to ensure the continued performance and longevity of our products.
