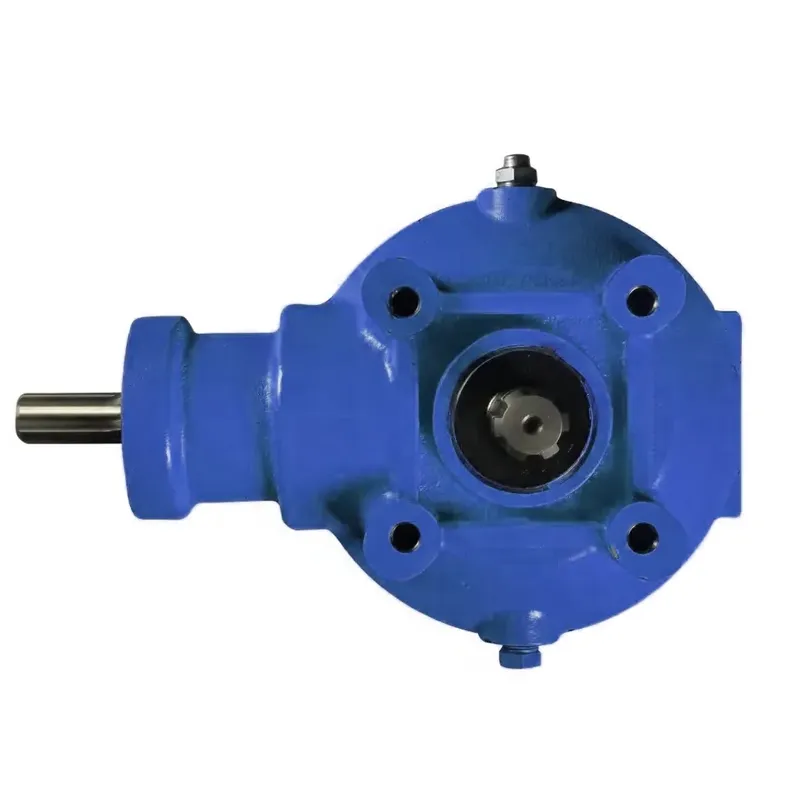

Adaptations for Different Soils: Potato Harvester Gearbox

The tractor PTO driven potato harvester gearbox is a specialized component designed to facilitate the efficient harvesting of potatoes by translating the power from the tractor into various mechanical actions needed in the harvesting process. Here¡¯s a step-by-step explanation of how it works:

1. Connection to Tractor PTO:

The process begins with the gearbox connecting to the tractor¡¯s PTO shaft. The PTO is a stub shaft that provides a direct line of power from the tractor¡¯s engine. When engaged, it spins at a rate proportional to the engine speed, providing power to the potato harvester.

2. Transmission of Power:

Once connected, the rotating PTO shaft powers the gearbox. The gearbox is essentially a series of gears and shafts configured to modify the engine¡¯s power into the desired form. It adjusts the torque and speed according to the needs of the harvester, optimizing the power output for different soil conditions and harvesting speeds.

3. Adjusting Speed and Torque:

The gearbox¡¯s gears adjust the input power by changing speeds and torque through various gear ratios. This is crucial because different stages of the potato harvesting process require different speeds. For example, digging needs more torque to pull the potatoes out without damaging them, while conveying them might need less power but more speed.

4. Driving the Harvesting Mechanisms:

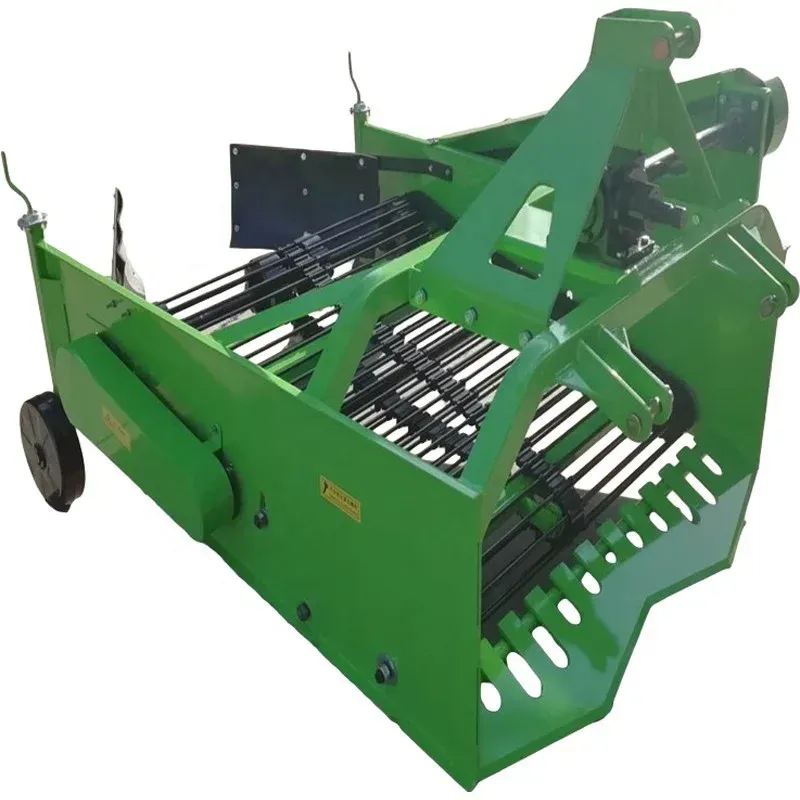

The adjusted power is then distributed to various parts of the harvester. This includes the digging mechanism that loosens the soil and lifts the potatoes, and the conveyor system that transports the potatoes from the ground to the storage bin.

5. Soil Penetration and Extraction:

The gearbox drives the blades or digging forks that penetrate the soil. These components are crucial for loosening the earth and scooping the potatoes out. The depth and speed of penetration can be adjusted via the gearbox to accommodate different soil types and potato sizes, minimizing crop damage.

6. Sorting and Collection:

Finally, the gearbox helps operate the mechanisms that separate the potatoes from the soil and other debris. This typically involves a series of belts, sieves, and rollers, all powered through the gearbox. The clean potatoes are then conveyed to a storage area, while the debris is discarded.

Installation Steps of the Potato Harvester Gearbox

Installing a tractor PTO driven potato harvester gearbox involves a series of precise steps to ensure the equipment functions efficiently and safely. Here¡¯s a detailed guide to the installation process:

1. Preparation and Safety:

Begin by ensuring the tractor and harvester are on stable, level ground and that the engine is off with keys removed. Gather all necessary tools and the installation manual. It¡¯s crucial to wear appropriate safety gear like gloves and goggles to protect against accidental injuries.

2. Attaching the Gearbox to the Harvester:

Position the gearbox so that its input shaft can be aligned with the output shaft of the tractor¡¯s PTO. This usually involves lifting the gearbox into place using appropriate machinery due to its weight. Secure the gearbox onto the harvester’s frame using the bolts provided, ensuring they are tightened to the manual’s specifications to prevent any movement during operation.

3. Connecting to the Tractor PTO:

Carefully align the gearbox input shaft with the tractor’s PTO shaft. This alignment is critical to ensure efficient power transfer and reduce wear and tear on the shafts. Once aligned, slide the gearbox shaft onto the PTO shaft, ensuring it locks in place securely, typically indicated by a clicking sound from the locking pin.

4. Implementing Power Transfer Components:

Install any necessary drive shafts or additional couplings between the gearbox and the harvester’s mechanisms. These components are essential for transmitting the mechanical power from the gearbox to the various parts of the harvester, such as the digging blades and conveyor belts.

5. Checking Lubrication System:

Before starting the harvester, check the gearbox¡¯s lubrication system. Ensure it is filled with the correct type and amount of oil as specified by the manual. Proper lubrication is crucial for the smooth operation and longevity of the gearbox.

6. Testing and Calibration:

Once the gearbox is installed, conduct a test run to ensure everything is working correctly. Start the tractor and engage the PTO at a low speed to observe the harvester in operation. Look for any unusual noises or vibrations, which could indicate an issue with the installation. Adjust the settings and alignments as needed based on the harvester’s response.

Choose the Right PTO Shaft for Potato Harvester Gearbox

Choosing the right PTO shaft for a potato harvester gearbox is crucial for efficient and safe operation. Here¡¯s a step-by-step guide on how to select the appropriate PTO shaft:

1. Compatibility and Specifications:

Start by reviewing the technical requirements of both the tractor and the potato harvester gearbox. This includes the power output of the tractor, the input needs of the gearbox, and the physical connection types (splines, shaft sizes). The shaft must be capable of handling the horsepower and torque output without overloading.

2. Correct Sizing:

Ensuring the correct length of the PTO shaft is critical to prevent damage and maintain operational efficiency. Measure the distance between the tractor¡¯s PTO output and the gearbox¡¯s input when connected to the harvester and positioned for work. The shaft should have enough length to accommodate movement but not so much that it risks disengaging or excessively vibrating.

3. Safety Guards and Clutches:

Select a PTO shaft that comes with reliable safety features. This includes sturdy safety guards that protect against entanglement and injury. A PTO shaft with a slip clutch can also be beneficial, as it protects the gearbox and tractor from torque overloads by slipping when the torque exceeds safe levels.

4. Consider the Type of Tubing:

PTO shafts come in different types of tubing, such as triangular, lemon, and star profiles. These profiles affect the strength and flexibility of the shaft. Choose a type that offers durability and suitable flexibility for the typical terrain and conditions under which the harvester will operate.

5. High-Quality Components:

Ensure that the universal joints and bearings on the PTO shaft are of high quality. These components bear the stress of operation and influence the efficiency and longevity of the PTO shaft. Poor-quality joints and bearings can lead to failures and downtime.

6. Longevity and Efficiency:

After selecting the right PTO shaft, implement a regular maintenance schedule. Check for signs of wear, lubricate the joints, and inspect the safety guards and connections before each use. Regular maintenance helps extend the life of the PTO shaft and ensures safe and efficient operation.

Why Choose EVER-POWER’s Potato Harvester Gearbox?

EVER-POWER is a prominent manufacturer of high-performance potato harvester gearboxes for a variety of applications. Our potato harvester gearboxes are a powerful replacement option for John Deere, Case IH, AGCO, Kuhn, Claas, New Holland, Kubota, Amac, Annaburger, Grimme, Ropa, Baselier, Valtra, Holmer and other brands. Our technical staff can reconfigure an existing design or assist you in designing a custom potato harvester gearbox if a standard or existing design does not fit your application.

Professionalism:

Our team of experienced engineers and technicians ensures that our potato harvester gearboxes meet the highest standards of quality and performance. We are dedicated to providing innovative solutions to meet the needs of our customers.

International Certifications:

EVER-POWER holds various international certifications that attest to the quality and reliability of our products. We adhere to strict manufacturing standards to deliver products that exceed expectations.

Customized Services:

We offer customized services to tailor our potato harvester gearboxes to your specific requirements. Whether you need a modification to an existing design or a completely new gearbox, we can accommodate your needs.

Production Facilities:

Our state-of-the-art production facilities are equipped with the latest technology and machinery to ensure efficient and precise manufacturing processes. We invest in our facilities to deliver top-notch products to our customers.

After-Sales Services:

We provide comprehensive after-sales services to support our customers throughout the lifespan of our products. Our dedicated support team is available to address any inquiries or issues you may have.

Customer Satisfaction:

At EVER-POWER, customer satisfaction is our top priority. We strive to exceed customer expectations by delivering high-quality products and exceptional service. Your success is our success.

Author: Yjx
