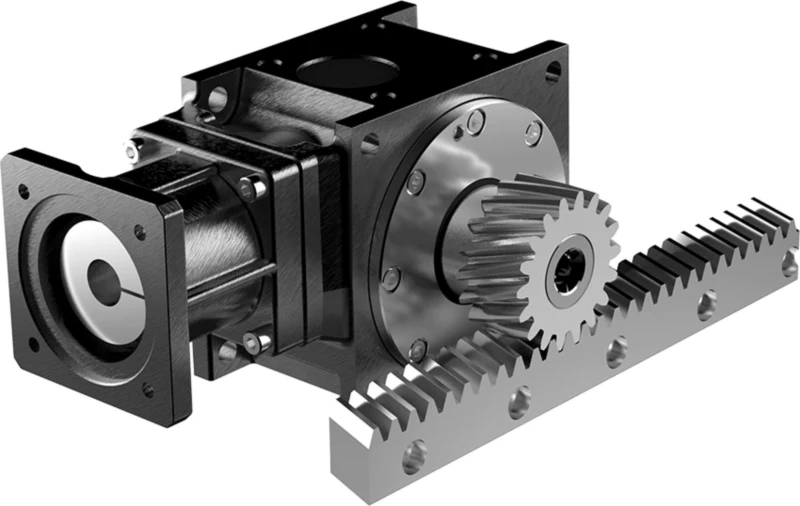

A linear gear rack for automation systems
A linear gear rack is a straight bar with evenly spaced teeth that mesh with a pinion gear to convert rotational motion into linear motion. It’s commonly used in applications requiring precise linear movement, such as CNC machines and automated systems.
Advantages of Linear Gear Rack
1. Precision
Linear gear racks offer high precision, allowing for accurate linear positioning in various applications. The teeth on the rack and the pinion gear mesh tightly, ensuring smooth and precise motion.
2. Load Capacity
Linear gear racks have a high load capacity, making them suitable for applications that require heavy-duty linear movement. The design of the teeth and the material used in the rack ensure its ability to handle substantial loads.
3. Versatility
Linear gear racks are versatile and can be used in a wide range of applications. They are compatible with different automation systems, making them a flexible choice for various industries.
…
…
How to Select the Right Linear Gear Rack
1. Load Capacity
Consider the maximum load the gear rack needs to withstand. Choose a rack with a load capacity that exceeds your application’s requirements to ensure optimal performance and longevity.
…
…
Installation and Maintenance
Installation
Proper installation is crucial to ensure the optimal performance of the linear gear rack. Follow these key steps for installation:
- Alignment: Ensure proper alignment between the rack and the pinion gear.
- Mounting Surface: Use a flat and rigid surface for mounting the gear rack.
- Fastening: Securely fasten the gear rack to the mounting surface to prevent any movement or vibration.
- Clearance: Maintain the appropriate clearance between the rack and the pinion gear to ensure smooth engagement.
- Inspection: Regularly inspect the gear rack for any signs of damage or wear. Replace if necessary.
Maintenance
Proper maintenance is essential to prolong the lifespan and performance of the linear gear rack. Follow these maintenance guidelines:
- Lubrication: Regularly lubricate the gear rack to reduce friction and wear.
- Inspection: Periodically inspect the rack for any signs of damage or wear.
- Cleaning: Keep the gear rack clean and free from debris or contaminants.
- Adjustment: Make necessary adjustments to maintain optimal performance.
- Replacement: Replace the gear rack if it becomes excessively worn or damaged.
About Ever Power
Ever Power is a leading manufacturer of linear gear racks in China. Established in 2006, the company specializes in producing high-quality rack products for various industries. With over 100 professional rack production equipment and testing equipment, Ever Power ensures the precision and reliability of its products.
Ever Power offers a wide range of gear rack products, including Stainless Steel Gear Rack, Plastic Gear Rack, Spur Gear Rack, Helical Gear Rack, and Gear Rack for Door Opener, among others.
The company’s dedication to quality is evident through its use of advanced rack milling and grinding machines imported from Germany. These machines enable Ever Power to produce racks with exceptional precision (JIS2 level DIN6n25) to meet the demands of the high-end market.
With competitive prices, excellent products, and a commitment to customer satisfaction, Ever Power’s rack products are exported to countries such as Spain, the Netherlands, the United States, South Korea, Turkey, and Russia. The company aims to help customers develop new products and solve technical and quality problems through its high-quality offerings and impeccable service.
