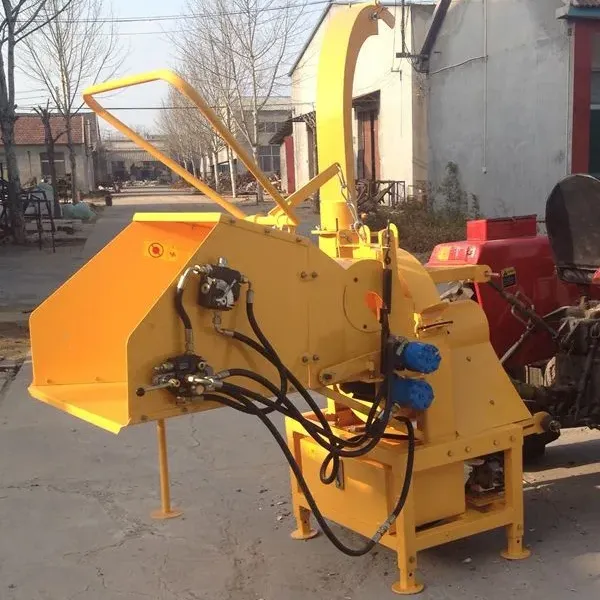

What is a Tractor PTO Wood Chipper?

A tractor 3-point hitch PTO wood chipper is a high-performance piece of equipment used for agricultural or landscaping purposes. This tool is engineered to convert wood into smaller, more manageable chips. It is attached to a tractor using the 3-point hitch system and is powered by the tractor’s PTO (Power Take-Off).

Advantages of a Tractor PTO Wood Chipper

This specific type of wood chipper offers numerous benefits:

• Efficiency: It uses the tractor’s power, eliminating the need for a separate engine.
• Flexibility: It can be easily attached and detached from the tractor.
• Power: It has the ability to handle large volumes of wood.
• Adaptability: It can be used with different types of tractors.
• Environmentally Friendly: It helps in recycling wood waste into useful mulch or compost.
• Customizable: We can manufacture this product according to specific requirements.

Applications of the Tractor PTO Wood Chipper

The tractor PTO wood chipper has a wide range of applications:

• Agricultural: For clearing fields and managing farm waste.



• Landscaping: For maintaining parks, gardens, and yards.
• Forestry: For managing forest waste and creating paths.
• Composting: For creating nutrient-rich compost for soil.
• Wood Recycling: For converting waste wood into reusable material.
• Industrial: For managing wood waste in wood processing industries.

Structural Components of a Tractor PTO Wood Chipper

This powerful tool is composed of several key structural components:

3-Point Hitch Attachment

The 3-point hitch attachment is what links the wood chipper to the tractor. It consists of two lower arms and one upper arm that attach to corresponding points on the tractor, ensuring easy hookup and stability during operation.

PTO Shaft

The PTO shaft is a critical component that transfers mechanical power from the tractor to the wood chipper. This shaft enables the chipper’s cutting mechanism to function without needing its own engine.

Hopper

The hopper is where branches, limbs and other wood debris are fed into the chipper. Its design is crucial for user safety and efficient feeding of materials into the chipper blades.

Chipping Mechanism

This includes the blades or knives that chip the wood into smaller pieces. The mechanism typically consists of a heavy-duty steel disc or drum that houses the cutting blades. As the disc spins, the blades cut the wood into chips.

Discharge Chute

After the wood has been chipped, the pieces are ejected from the machine through the discharge chute. The chute directs the chips away from the machine and into a designated area or container. The angle and direction of the chute are often adjustable.

Working Principle of the Tractor 3 Point Hitch PTO Wood Chipper

The working principle of a tractor 3-point hitch PTO wood chipper involves several key steps and components:

Connection and Power Transfer

The wood chipper is attached to the tractor using the three-point hitch system. Once the PTO shaft is connected, the wood chipper’s PTO shaft is linked to the tractor’s PTO stub. The tractor’s PTO is engaged, transferring rotary power from the tractor’s engine to the wood chipper.

Wood Feeding

Operators feed branches, limbs, and other wood debris into the chipper through the hopper. This component is designed to guide the wood safely into the chipping mechanism while keeping the operator at a safe distance from the cutting blades.

Chipping Process

Inside the wood chipper, the PTO’s power activates the chipping mechanism, typically a rotating disc or drum equipped with sharp blades. As the wood enters the chipping area, the rotating blades cut the wood into small chips.

Discharge Chute

After the wood has been chipped, the pieces are expelled from the machine through the discharge chute. This chute directs the wood chips away from the machine, often into a collection container or onto the ground.

Control and Adjustments

Operators can make adjustments to the chipper, such as changing the chip size or modifying the feed rate, depending on the specific model of the wood chipper and its features.

Installation Operation of a Tractor PTO Wood Chipper

Installing a 3-point hitch PTO wood chipper to a tractor involves several steps:

• Inspect Equipment: Check both the tractor and the wood chipper for any damage or wear that could affect operation or safety.
• Aligning the 3-Point Hitch: Use the tractor’s controls to lower the 3-point hitch to its lowest position.



• Connecting the Hitch: Attach the lower arms of the 3-point hitch to the mounting points on the wood chipper.
• Connecting the PTO Shaft: Align the PTO shaft of the wood chipper with the PTO stub on the tractor.
• Inspect the Installation: Double-check all connections to ensure they are secure.
• Test Run: Start the tractor and engage the PTO at a low RPM to ensure everything is working correctly.

Choosing the Right PTO Shaft for a Tractor PTO Wood Chipper

Choosing the right PTO shaft involves considering several factors:

• Determine the PTO Size and Speed: Check your tractor’s PTO output size and speed.
• Wood Chipper Requirements: Verify the input requirements of your wood chipper.
• Length of the PTO Shaft: Measure the distance between the tractor’s PTO and the chipper’s PTO connection point when they are hitched together.
• Torque and Power Rating: Ensure that the PTO shaft’s torque and power rating matches or exceeds the maximum output of the tractor and the input requirements of the wood chipper.
• Safety Features: Some PTO shafts come with safety features like a shear bolt or a slip clutch to protect the tractor, chipper, and shaft in case of a jam or overload.

Why Choose EVER-POWER’s PTO Wood Chipper?

EVER-POWER Agricultural Machinery Co., Ltd. is a leader in the research and development of agricultural machinery. With more than a decade of production experience, we specialize in farming machinery, planting machinery, harvesting machinery and its accessories.

We hold international certifications, offer customized services, house state-of-the-art production facilities, and provide comprehensive after-sales services. Our products are sold all over the world and are appreciated for their excellent performance and reliable quality.

Author: Yjx
