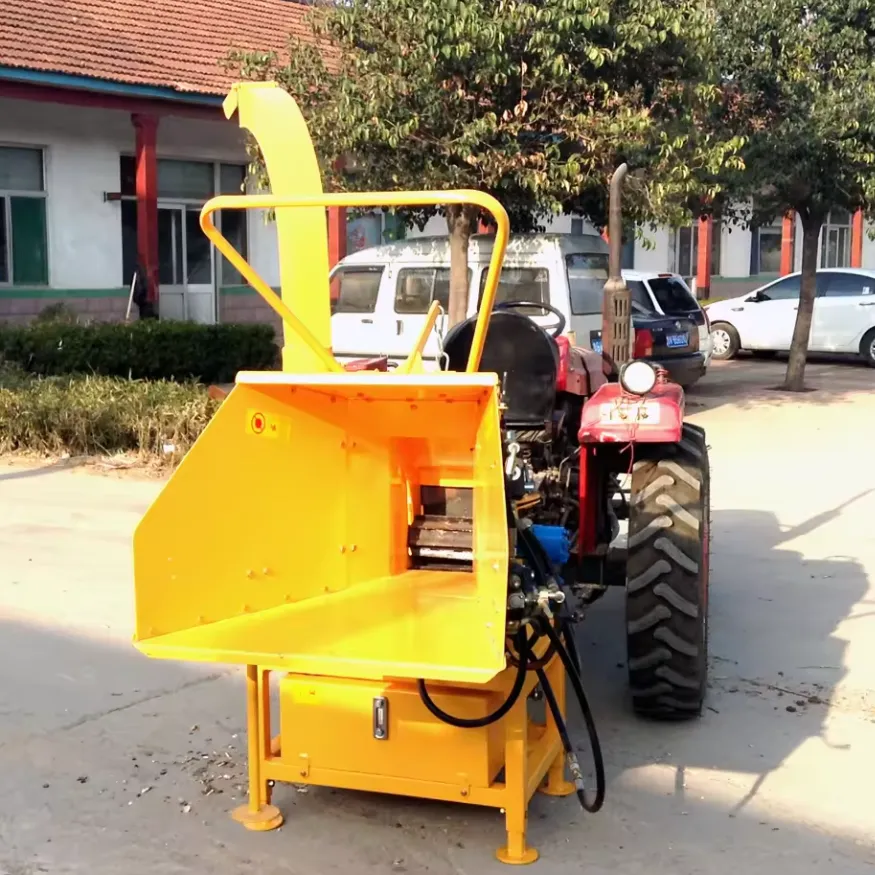

What is a Tractor PTO Wood Chipper?

A Tractor PTO (Power Take Off) Wood Chipper is a robust piece of machinery designed to chip or shred wood into smaller, manageable pieces. This equipment is attached to a tractor through a three-point hitch system and is powered by the tractor’s PTO. It is a vital tool for farmers, landscapers, and anyone needing to clear or manage large amounts of wood debris.

Benefits of Using a Tractor PTO Wood Chipper

Using a tractor power take-off (PTO) wood chipper offers several benefits for individuals or businesses involved in wood processing or land maintenance. Here are some key advantages of using a tractor PTO wood chipper:

• Efficiency: Tractor PTO wood chippers are highly efficient machines that can quickly process large volumes of wood. They are designed to handle branches, logs, and other wood debris, reducing them into small wood chips. This helps save time and effort compared to manual or smaller-scale chipping methods.
• Power and Versatility: Tractor PTO wood chippers are powered by the tractor’s engine, providing ample power for chipping even thick branches and logs. They typically feature robust cutting mechanisms and high-speed blades, making them capable of handling a wide range of wood sizes and densities. This versatility allows you to chip various types of wood, including hardwood and softwood.
• Cost-Effective: Investing in a tractor PTO wood chipper can be cost-effective in the long run. Instead of hiring a wood chipping service or paying for disposal fees, you can process the wood on-site and repurpose it for various uses. Wood chips produced by the chipper can be used for landscaping, mulching, composting, or as biomass fuel, reducing the need to purchase these materials separately.
• Time-Saving: With a tractor PTO wood chipper, you can significantly reduce the time required for wood processing tasks. Chipping large branches or logs manually can be labor-intensive and time-consuming. Using a wood chipper allows you to complete the job more efficiently, freeing up time for other important tasks.

Tractor PTO Wood Chipper Common Applications

Tractor PTO Wood Chippers have a wide range of applications, especially in:

• Agriculture: For clearing farmland and turning wood debris into mulch
• Landscaping: For managing large amounts of wood debris
• Forestry: For clearing fallen trees and other woody debris
• Composting: The wood chips produced can be used for composting
• Fire prevention: By clearing potential fuel for wildfires
• Waste reduction: By turning wood waste into a useful product

Structural Components of a Tractor PTO Wood Chipper

A Tractor PTO Wood Chipper is composed of several key components, including:

• 3-Point Hitch Attachment: This is the part that connects the wood chipper to the tractor. It consists of two lower arms and one upper arm that attach to corresponding points on the tractor, allowing for easy hookup and stability during operation.
• PTO Shaft: The PTO shaft is a crucial component that transfers mechanical power from the tractor to the wood chipper. This shaft enables the chipper’s cutting mechanism to function without needing its own engine.
• Hopper: The hopper is the large funnel-like part where branches, limbs, and other wood debris are fed into the chipper. Its design is important for user safety and efficient feeding of materials into the chipper blades.
• Chipping Mechanism: This includes the blades or knives that actually chip the wood into smaller pieces. The mechanism typically consists of a heavy-duty steel disc or drum that houses the cutting blades. As the disc spins, the blades cut the wood into chips.
• Discharge Chute: After the wood has been chipped, the pieces are ejected from the machine through the discharge chute. The chute directs the chips away from the machine and into a designated area or container. The angle and direction of the chute are often adjustable.

Working Principle of the Tractor PTO Wood Chipper

The working principle of a tractor PTO wood chipper involves several key steps and components:

1. Connection and Power Transfer: The wood chipper is attached to the tractor using the three-point hitch system. Once the PTO shaft is connected, the wood chipper’s PTO shaft is linked to the tractor’s PTO stub. The tractor’s PTO is engaged, transferring rotary power from the tractor’s engine to the wood chipper.
2. Wood Feeding: Operators feed branches, limbs, and other wood debris into the chipper through the hopper. This component is designed to guide the wood safely into the chipping mechanism while keeping the operator at a safe distance from the cutting blades.
3. Chipping Process: Inside the wood chipper, the PTO’s power activates the chipping mechanism, typically a rotating disc or drum equipped with sharp blades. As the wood enters the chipping area, the rotating blades cut the wood into small chips.
4. Discharge Chute: After the wood has been chipped, the pieces are expelled from the machine through the discharge chute. This chute directs the wood chips away from the machine, often into a collection container or onto the ground.
5. Control and Adjustments: Operators can make adjustments to the chipper, such as changing the chip size or modifying the feed rate, depending on the specific model of the wood chipper and its features.

Installation Tips for Tractor PTO Wood Chipper

Installing a 3-point hitch PTO wood chipper to a tractor involves several steps:

1. Inspect Equipment: Check both the tractor and the wood chipper for any damage or wear that could affect operation or safety. Ensure the PTO shafts on both the tractor and chipper are in good condition.
2. Aligning the 3-Point Hitch: Use the tractor’s controls to lower the 3-point hitch to its lowest position. This makes it easier to align the attachment points of the wood chipper with the hitch arms and top link of the tractor.
3. Connecting the Hitch: Attach the lower arms of the 3-point hitch to the mounting points on the wood chipper. Use the locking pins provided to secure them in place. Connect the top link between the chipper and the tractor’s top link attachment point.
4. Connecting the PTO Shaft: Align the PTO shaft of the wood chipper with the PTO stub on the tractor. Ensure the shaft is the correct length; you may need to adjust it according to the manufacturer’s instructions.
5. Inspect the Installation: Double-check all connections to ensure they are secure. Make sure there are no loose parts and that the chipper is properly aligned with the tractor.
6. Test Run: Start the tractor and engage the PTO at a low RPM to ensure everything is working correctly. Listen for any unusual noises or vibrations that could indicate a problem.

Common Troubleshooting of Tractor PTO Wood Chipper

Troubleshooting common issues with a Tractor PTO Wood Chipper can help you maintain your equipment’s efficiency and prolong its lifespan. Here are some frequent problems and their potential solutions:

1. Wood Chipper Does Not Start

• Check PTO Connection: Ensure the PTO shaft is properly connected to both the tractor and the chipper. A misaligned or improperly connected PTO can prevent the chipper from starting.
• Inspect Safety Features: Many chippers have safety features that prevent operation if certain conditions are not met (e.g., hopper is open). Check that all safety mechanisms are engaged correctly.

2. Chipper Produces Uneven or Poor-Quality Chips

• Blade Condition: Dull or damaged blades are a common cause of poor chipping performance. Inspect the blades and sharpen or replace them as needed.
• Material Feed Rate: Adjust the feed rate of material into the chipper. Overfeeding can overwhelm the chipper, while underfeeding can result in uneven chipping.
• Wood Type and Size: Ensure the wood being chipped is not exceeding the size limitations of the chipper and is appropriate for the type of chipper being used.

3. Chipper Vibrates Excessively

• Check for Damaged Components: Damaged or unbalanced blades can cause excessive vibration. Inspect and replace any damaged components.
• Secure Attachments: Make sure the chipper is securely attached to the tractor’s 3 point hitch and that the PTO shaft is correctly aligned and connected.
• Examine Bearings and Belts: Worn bearings or loose belts can also cause vibration. Replace or tighten as necessary.

4. Chipper Jams Frequently

• Material Type: Avoid chipping materials that the chipper is not designed to handle, such as rocks, metal, or excessively thick or wet wood.
• Feed Rate and Size: Reduce the feed rate and ensure materials are within the recommended size limits.
• Blade and Anvil Clearance: Incorrect clearance between the blades and the anvil (or counter-blade) can cause jams. Adjust according to the manufacturer’s specifications.

5. PTO Shaft Problems

• Shaft Length: Ensure the PTO shaft is of the correct length. A shaft that is too long or too short can lead to disengagement or damage.
• Lubrication: Regularly lubricate the PTO shaft to prevent seizing or wear.
• Universal Joints: Check the condition of the universal joints on the PTO shaft. Replace if worn or damaged.

Why Choose EVER-POWER’s PTO Wood Chipper?

EVER-POWER Agricultural Machinery Co., Ltd. is a reputable manufacturer of agricultural machinery, including PTO Wood Chippers. We pride ourselves on our:

• • Over ten years of experience in production
  • Wide range of farming machinery, planting machinery, harvesting machinery and its accessories
  • Products that are complete in specifications, excellent in performance, and reliable in quality
  • Professionalism, international certifications, and customized services
  • State-of-the-art production facilities
  • Comprehensive after-sales services

Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
