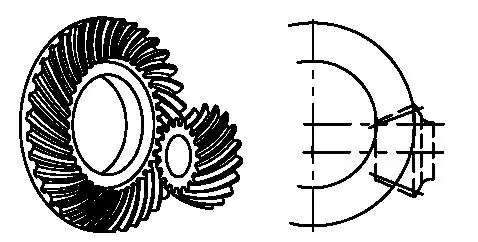

Hypoid Gear Ratios
The Significance of Hypoid Gear Ratios in Mechanical Systems
Hypoid gear ratios play a crucial role in various mechanical systems, especially those involving power transmission and torque conversion. These ratios determine the speed and efficiency of gear assemblies, making them a critical factor in the overall performance of machines.
Different Types of Hypoid Gear Ratios
When it comes to hypoid gear ratios, there are several variations to consider:
- Standard Hypoid Gear Ratio
- High-Speed Hypoid Gear Ratio
- Low-Speed Hypoid Gear Ratio
Standard hypoid gear ratios are widely used in automotive and industrial applications. They provide a balanced combination of speed reduction and torque multiplication, making them suitable for a wide range of power transfer requirements.
High-speed hypoid gear ratios are designed for applications where speed reduction is the primary objective. These gear ratios prioritize rotational speed over torque, making them ideal for use in machinery that requires high RPMs.
Conversely, low-speed hypoid gear ratios are specifically tailored for applications that demand high torque output at lower speeds. They provide significant torque multiplication, making them suitable for heavy-duty machinery and equipment.
Factors Influencing Hypoid Gear Ratios
Several factors contribute to the determination of hypoid gear ratios:
- Gear Tooth Profile
- Gear Diameter
- Pinion Offset
- Gear Materials and Surface Treatments
The tooth profile, such as helical or spiral, affects the overall gear ratio. Different tooth profiles offer varying degrees of efficiency and load-bearing capabilities.
The size or diameter of the gears impacts the ratio. Larger gears generally result in higher gear ratios, while smaller gears provide lower ratios.
Pinion offset, which refers to the distance between the gear axes, directly influences gear ratios. Varying pinion offsets can yield different speed and torque characteristics.
The choice of materials and surface treatments affects the overall performance and durability of hypoid gears. Proper material selection and surface enhancements can optimize gear ratios for specific applications.
Applications of Hypoid Gear Ratios
Hypoid gear ratios find application in various industries, such as:
- Automotive
- Aerospace
- Industrial Machinery
Hypoid gear ratios are commonly used in automotive differentials to transfer torque and allow for speed variation between the wheels.
In the aerospace industry, hypoid gear ratios are essential in mechanisms related to aircraft landing gear and engine systems.
Industrial machinery relies on hypoid gear ratios for power transmission between different components, ensuring smooth and efficient operation.

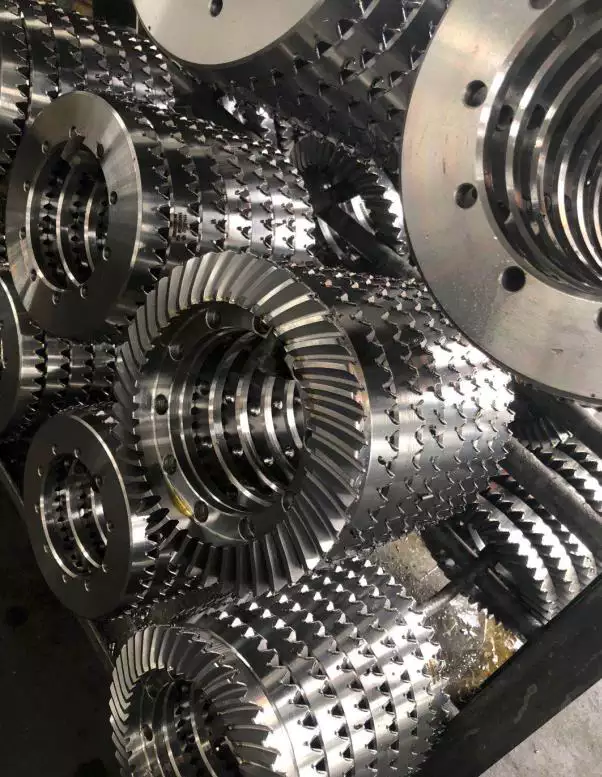

About Ever-Power Gear Factory
We are a professional gear manufacturing factory, specializing in the production of high-quality gears for various industries. With years of experience and advanced technology, we strive to deliver exceptional products to our customers.
Our Gear Processing and Manufacturing Process
- Blank Preparation: Forging and Heat Treatment
- Rough Machining: Turning, Drilling, and Boring
- Forming Process: Gear Rolling, Gear Hobbing, Gear Shaping
- Semi-Precision Machining: Chamfering, Keyway Cutting, Deburring
- Heat Treatment: Carburizing, Nitriding or Quenching, Tempering
- Precision Machining: Gear Grinding, Gear Honing
- Inspection and Acceptance: Gear Testing, Surface Treatments
Before the actual gear processing begins, we prepare the blank by forging it into the desired shape and subjecting it to heat treatment to enhance its strength and durability.
After the blank preparation, we proceed with rough machining, where we perform turning, drilling, and boring operations to achieve the initial shape and dimensions required for the gear.
Next, we employ various forming processes such as gear rolling, gear hobbing, and gear shaping to create the precise gear teeth profiles and optimize the gear’s performance.
Once the forming process is complete, we move on to semi-precision machining, where we perform chamfering, keyway cutting, and deburring operations to remove any sharp edges and improve the gear’s overall quality.
Heat treatment is a critical step in the gear manufacturing process. We apply techniques like carburizing, nitriding, or quenching and tempering to enhance the gear’s hardness, wear resistance, and toughness.
Precision machining involves gear grinding and gear honing, where we achieve the final gear dimensions, tooth surface finish, and precise tooth profiles for optimal gear performance.
Before delivering the gears to our customers, we conduct thorough inspection and acceptance tests to ensure their quality and adherence to specifications. We also apply surface treatments, such as coatings or platings, as per customer requirements.
Advantages of Choosing Ever-Power Gear Factory
- Advanced Technology: We utilize cutting-edge technology and machinery to ensure precise and high-quality gear manufacturing.
- Experienced Team: Our team of skilled engineers and technicians has extensive knowledge and expertise in gear production.
- Customization Options: We offer tailored solutions to meet specific customer requirements, ensuring the perfect fit for their applications.
- Strict Quality Control: Our rigorous quality control measures guarantee that each gear meets the highest standards of performance and reliability.
- Timely Delivery: We prioritize prompt delivery to ensure our customers’ projects remain on schedule.
- Competitive Pricing: We offer competitive prices without compromising on the quality and durability of our gears.
Author: Miya
