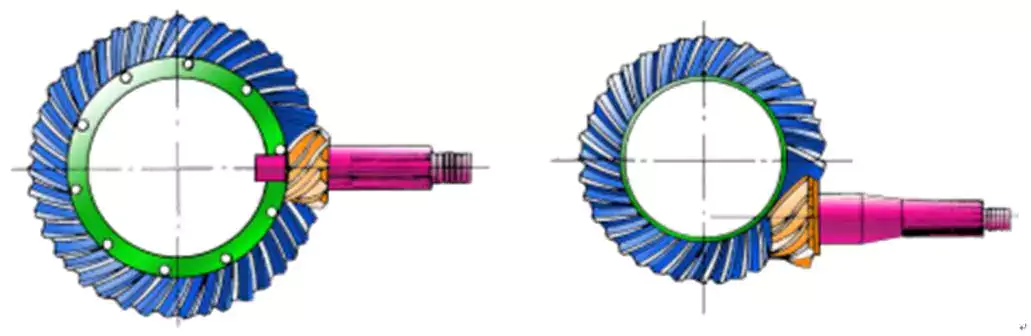

Hypoid Gear Assembly Procedure
1. Gear Preparing
In the first step of the hypoid gear assembly procedure, the gears are carefully prepared for assembly. This involves cleaning and inspecting the gears to ensure they are free from any debris or damage. The gears are then lubricated with a specialized gear oil to reduce friction during the assembly process.
2. Gear Alignment
Before the actual assembly takes place, it is crucial to align the gears properly. This ensures smooth operation and optimal performance of the gear system. Precise alignment is achieved by using precision measuring tools and following strict alignment guidelines.
3. Gear Positioning
Once the gears are aligned, they are carefully positioned according to the gear ratio requirements. This step involves accurately placing the gears in the correct orientation to achieve the desired gear ratio and ensure efficient power transmission.
4. Gear Engagement
The gear engagement process involves meshing the teeth of the hypoid gears together. This step requires skilled technicians who carefully manipulate the gears to achieve a proper mesh without any interference or backlash. The gears must engage smoothly and accurately to prevent premature wear and ensure optimal performance.
5. Gear Tightening
After the gears are properly engaged, they need to be tightened to secure their position. This is done by applying the correct amount of torque to the gear fasteners, ensuring a secure and reliable assembly. It is essential to follow specific tightening procedures to avoid any damage to the gears or the assembly.
6. Gear Testing
Once the gear assembly is complete, thorough testing is performed to verify its functionality and performance. This includes checking for smooth operation, proper gear meshing, and adequate load-carrying capacity. Various tests and inspections are conducted to ensure the gear assembly meets the required specifications and standards.
7. Gear Finishing
The final step in the hypoid gear assembly procedure is the finishing process. This involves cleaning the gears, removing any excess lubricants, and applying protective coatings or surface treatments to enhance their durability and resistance to wear and corrosion. The finished gears are then ready for installation.

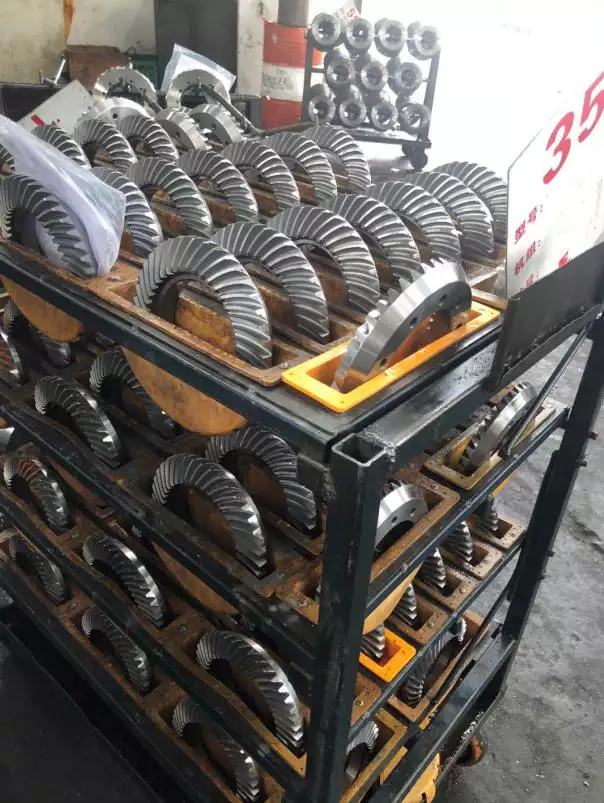

About Our Gear Factory
We are a professional gear manufacturing factory, specializing in the production of high-quality gears for various industries. With years of experience and advanced technology, we are committed to delivering gears that meet the highest standards of precision and reliability.
Our Manufacturing Process and Techniques
- Raw Material Preparation: We start by preparing the raw materials through forging and heat treatment to ensure their strength and durability.
- Rough Machining: The gears undergo processes such as turning, drilling, and boring to achieve the desired shape and dimensions.
- Forming Process: Teeth are formed on the gears through processes like gear rolling, gear hobbing, and gear shaving.
- Semi-Precision Machining: The gears are further refined through operations such as chamfering, keyway milling, and deburring to remove any sharp edges or burrs.
- Heat Treatment: The gears undergo heat treatment processes like carburizing, nitriding or quenching, and tempering to enhance their hardness and strength.
- Precision Machining: The final gear finishing is achieved through processes like gear grinding and honing to ensure precise tooth profiles and surface finishes.
- Inspection and Quality Control: Each gear is thoroughly inspected to ensure it meets the required specifications and passes stringent quality standards. Surface treatments are also applied to enhance the gear’s performance and longevity.
Advantages of Choosing Our Gear Factory
- Advanced Technology: We utilize state-of-the-art machinery and manufacturing techniques to produce gears with exceptional precision and performance.
- Experienced Team: Our team consists of highly skilled technicians and engineers who are experts in gear manufacturing and assembly.
- Strict Quality Control: We have a robust quality control system in place to ensure that every gear we produce meets the highest standards of quality and reliability.
- Customization Options: We offer a wide range of customization options to meet the specific requirements of our customers, including gear materials, dimensions, and finishes.
- Timely Delivery: We understand the importance of timely delivery and strive to fulfill our customers’ orders promptly and efficiently.
- Competitive Pricing: Despite our high-quality products and advanced manufacturing processes, we offer competitive pricing to provide exceptional value to our customers.
Author: Miya
