Hypoid Gear 3D Printing Applications
Introduction
In recent years, the emergence of 3D printing technology has revolutionized various industries, including the manufacturing sector. One area where this technology is gaining significant attention is in the application of hypoid gears. Hypoid gears are a type of spiral bevel gear that have unique characteristics, making them suitable for a wide range of applications. This article will explore the fascinating world of Hypoid Gear 3D Printing Applications, delving into its various aspects and highlighting its advantages.
1. Aerospace Industry
The aerospace industry demands components that are not only lightweight but also have high strength and precision. Hypoid gears manufactured using 3D printing technology can meet these requirements. The ability to create complex geometries and optimize weight distribution makes 3D printed hypoid gears ideal for aerospace applications, such as aircraft engines and landing gear systems.
1.1 Lightweight Design
By utilizing advanced design software and additive manufacturing techniques, engineers can create lightweight hypoid gears with intricate internal structures. These lightweight designs significantly reduce the overall weight of aerospace systems, leading to improved fuel efficiency and increased payload capacity.
1.2 Enhanced Performance
The precision and high strength of 3D printed hypoid gears contribute to enhanced performance in aerospace applications. The precise tooth profiles and smooth gear meshing minimize friction and noise, resulting in smoother operation and reduced wear and tear.
2. Automotive Industry
The automotive industry constantly seeks innovative solutions to improve vehicle performance and efficiency. Hypoid gears manufactured using 3D printing technology offer several advantages for automotive applications, ranging from electric vehicles to racing cars.
2.1 Electric Vehicle Powertrains
With the increasing demand for electric vehicles, efficient power transmission systems are crucial. 3D printed hypoid gears can be customized to match the unique requirements of electric vehicle powertrains. The ability to optimize gear ratios and reduce weight contributes to improved overall system efficiency.
2.2 Racing Performance
3D printed hypoid gears are also gaining popularity in the racing industry. The ability to create custom gear geometries and optimize gear ratios allows racing teams to fine-tune their vehicles for maximum performance on the track. The lightweight and high-strength characteristics of these gears offer a competitive edge by improving acceleration, top speed, and overall handling.
3. Robotics and Automation
In the realm of robotics and automation, precision and reliability are paramount. 3D printed hypoid gears excel in these areas, making them an excellent choice for various robotic applications.
3.1 Industrial Robotics
Industrial robots require robust and efficient power transmission systems to perform repetitive tasks accurately. 3D printed hypoid gears offer exceptional torque density and can handle heavy loads while maintaining high precision. These gears ensure smooth and reliable operation, contributing to increased productivity in manufacturing processes.
3.2 Medical Robotics
The field of medical robotics relies on precise and compact mechanisms to perform minimally invasive procedures. 3D printed hypoid gears enable the creation of lightweight and compact robotic systems without compromising on performance. These gears play a vital role in surgical robots, prosthetic devices, and medical imaging equipment.
4. Conclusion
In conclusion, the applications of Hypoid Gear 3D Printing are vast and hold immense potential across various industries. The aerospace industry benefits from lightweight designs and enhanced performance, while the automotive industry utilizes the flexibility of 3D printing for electric vehicle powertrains and racing performance. Robotics and automation sectors benefit from the precision and reliability offered by 3D printed hypoid gears. With continued advancements in 3D printing technology, the possibilities for Hypoid Gear 3D Printing Applications are only set to expand further, driving innovation and efficiency across industries.

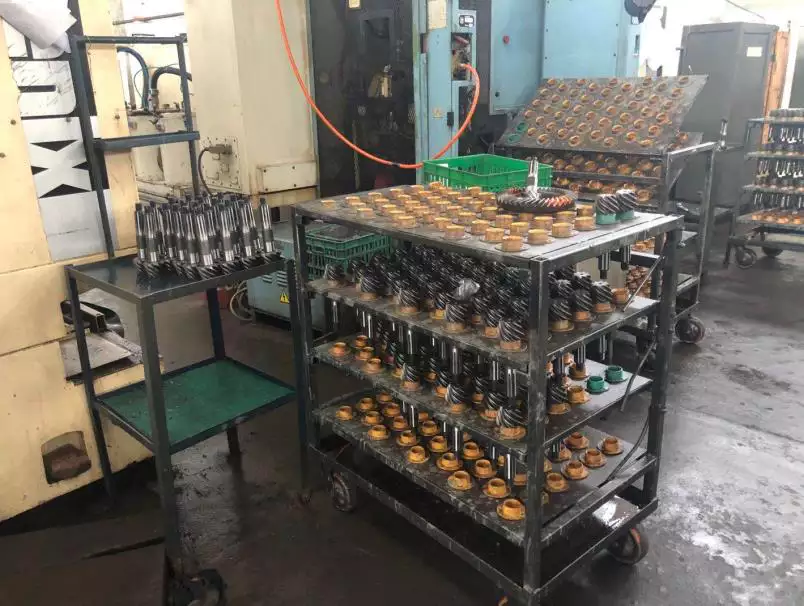

About Our Gear Manufacturing Factory
Our gear manufacturing factory is a professional facility dedicated to producing high-quality gears for various industrial applications. With years of experience and a commitment to excellence, we have established ourselves as a trusted name in the industry. We specialize in a comprehensive range of gear manufacturing processes, ensuring that our customers receive top-notch products tailored to their unique needs.
1. Raw Material Preparation: Forging and Heat Treatment
To ensure the strength and durability of our gears, we start with the careful selection of raw materials. Through forging and heat treatment processes, we enhance the material properties, such as hardness and toughness, to meet the specific requirements of each gear.
2. Rough Machining: Turning, Drilling, and Boring
Once the raw material is prepared, we move on to the rough machining phase. This stage involves turning, drilling, and boring operations to shape the gear blank and create the initial features required for further processing.
3. Forming Process: Gear Rolling, Gear Hobbing, and Gear Shaving
The forming process is crucial for achieving accurate gear profiles and ensuring smooth gear engagement. We utilize advanced gear rolling, gear hobbing, and gear shaving techniques to create precise gear teeth and optimize gear performance.
4. Semi-Finishing: Chamfering, Keyway Slotting, and Deburring
Semi-finishing operations focus on refining the gear’s surface and removing any unwanted imperfections. Chamfering, keyway slotting, and deburring processes are carried out to ensure smooth edges, proper keyway fitment, and a clean, polished finish.
5. Heat Treatment: Carburizing, Nitriding or Quenching, and Tempering
To further enhance the gear’s strength and wear resistance, we apply heat treatment processes. Carburizing, nitriding, or quenching, and tempering techniques are carefully implemented to achieve the desired hardness and surface characteristics.
6. Finishing: Gear Grinding and Honing
The finishing stage involves precision grinding and honing operations to achieve the final gear dimensions and surface finish. This ensures optimum gear performance, reduced noise, and increased durability.
7. Inspection and Quality Control: Gear Testing and Surface Treatment
Prior to delivery, each gear undergoes a rigorous inspection process. This includes gear testing to ensure accurate tooth geometry, proper gear meshing, and overall performance. Additionally, we offer surface treatment options to enhance corrosion resistance and improve aesthetics.
We take pride in our state-of-the-art gear manufacturing processes, as well as our dedicated team of skilled professionals who ensure every gear meets our stringent quality standards. With our expertise and commitment to customer satisfaction, partnering with us guarantees reliable and high-performing gears for your specific applications.
