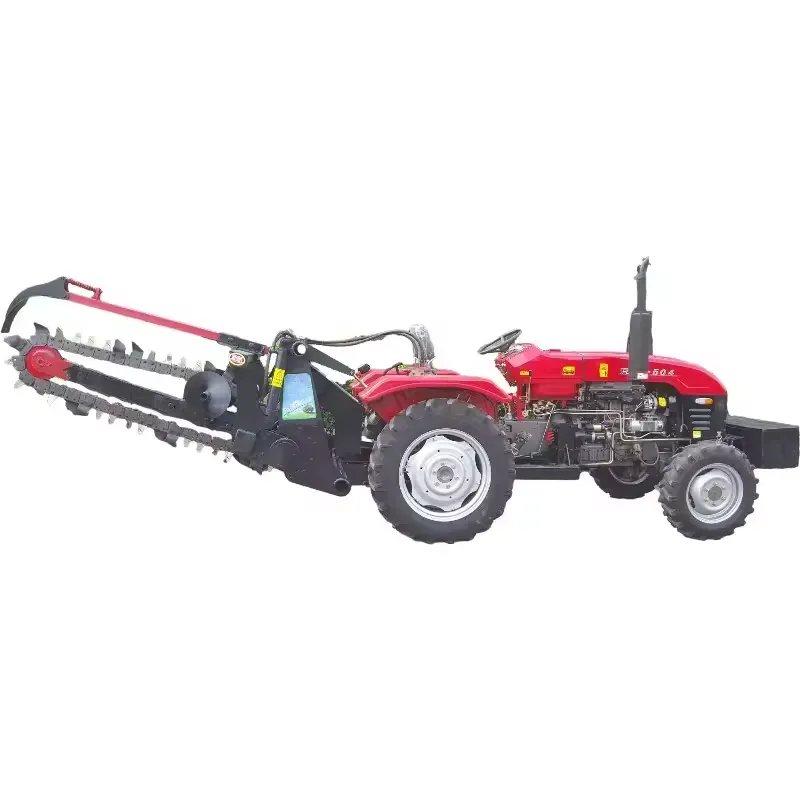

What is a 3 Point Linkage Chain Trencher?

A 3 Point Linkage Chain Trencher is a highly efficient and versatile piece of equipment that is primarily used for digging precise trenches. This trencher is unique due to the way it attaches to a tractor via the three-point hitch system and is powered by the tractor’s Power Take-Off (PTO), allowing for effective trenching operations.

Advantages of a 3 Point Linkage Chain Trencher

The 3 Point Linkage Chain Trencher offers several key advantages including:

• High Efficiency: The trencher can dig precise trenches quickly and efficiently.
• Versatility: It can be used in various soil types and conditions.
• Easy Attachment: The three-point hitch system enables easy attachment to a tractor.
• Powerful Operation: The trencher is powered by the tractor’s PTO, providing plenty of power for trenching tasks.
• Adjustable Depth: The depth of the trenches can be adjusted according to specific requirements.
• Reliability: Our company has the capability to produce this high-quality, reliable product.

Applications of a 3 Point Linkage Chain Trencher

A 3 Point Linkage Chain Trencher has numerous applications such as:

• Creating trenches for laying pipes
• Digging trenches for electrical and communication cables
• Establishing drainage systems
• Preparation for irrigation systems
• Landscaping and construction projects
• Agricultural field works

Tractor 3-point Linkage Chain Trencher Key Components

The tractor 3-point linkage chain trencher is an efficient and versatile piece of equipment used for digging precise trenches. It attaches to a tractor via the three-point hitch system and is powered by the tractor’s PTO. Understanding its key components is crucial for proper operation, maintenance, and troubleshooting. Here are the essential parts:

1. Three-Point Hitch: Provides the means to securely attach the trencher to the tractor. This system includes two lower arms and an upper link, which facilitate easy connection and allow for adjustments in the trencher’s angle and depth.
2. Power Take-Off (PTO) Shaft: Transfers power from the tractor to the trencher. The PTO shaft is a critical component that drives the trencher’s chain mechanism. Comes with a protective cover to prevent accidents, ensuring the operator’s safety.
3. Digging Chain: The primary tool for trenching, this chain is equipped with cutting teeth designed to efficiently break through the soil. Chains come in various sizes and tooth configurations to match different soil types and trenching requirements.
4. Boom: Supports the digging chain and determines the depth of the trench being dug. The length and angle of the boom are adjustable to control trench depth.
5. Drive System: Includes gears and possibly a hydraulic motor that converts the PTO’s rotational energy into the movement needed to drive the digging chain. Ensures the efficient transfer of power to the trencher’s chain, allowing for smooth operation.
6. Soil Ejection System: Clears excavated soil from the trench path. Depending on the trencher model, this may involve a simple deflector plate or a more complex conveyor system. Critical for keeping the trench clean and minimizing the need for additional cleanup.

Working Principle of the Tractor 3 Point Mounted Chain Trencher

The tractor 3-point linkage chain trencher is a specialized tool designed for creating trenches in the soil, primarily for laying pipes, cables, or drainage systems. It is an efficient and effective equipment that combines the mechanical power of a tractor with a robust trenching mechanism. Here’s a detailed look at how it operates:

1. Attachment and Power Source: The trencher is attached to the tractor using the three-point hitch system, a standard method for attaching implements to tractors. This system provides a secure attachment and allows for easy adjustment of the trenching depth.
2. Trenching Mechanism: The heart of the trencher is its digging chain, which resembles a large chainsaw blade. This chain is equipped with cutting teeth and is mounted on a metal frame called a boom. The teeth are designed to cut through the soil efficiently.
3. Soil Ejection: As the trencher digs, the design of the chain and teeth allows for the excavated soil to be lifted out of the trench and deposited alongside it. This process keeps the trench clear for any installations, such as piping or cables.
4. Depth Control: The depth of the trench is controlled via the three-point linkage system of the tractor, allowing the operator to adjust how deep the boom and chain dig into the soil. This adjustability is vital for various applications, ensuring that trenches are created at the correct depth for the task at hand.

Operation Precautions of the 3 Point Linkage Chain Trencher

Operating a tractor 3-point mounted chain trencher involves handling heavy machinery and sharp components, making safety and precaution paramount. Here are essential operation precautions to ensure safe and efficient trenching:

1. Equipment Preparation: Conduct a thorough inspection of the trencher and tractor. Look for loose bolts, worn teeth, and proper chain tension, and ensure all safety guards are in place.
2. Avoid Overloading: Begin trenching at a slow speed to ensure the trencher is functioning correctly before proceeding at full operation speed. Do not overload the trencher by trying to trench too deeply too quickly.
3. Monitor Trencher Performance: Regularly check the trencher for clogs or jams. If you notice any issues, stop the tractor and trencher and inspect for obstructions.



4. Handling and Maneuvering: Avoid trenching on steep slopes or uneven terrain where the tractor could tip or slide, compromising operator safety. Be cautious when making turns with the trencher attached; wide turns are recommended to prevent equipment damage.
5. Clean and Inspect: After each use, clean the trencher, removing soil and debris. Inspect it for any signs of wear or damage, especially the chain, teeth, and PTO shaft.
6. Regular Maintenance: Follow a regular maintenance schedule as recommended by the manufacturer. This includes checking the chain tension, lubricating moving parts, and replacing worn teeth.

Why Choose EVER-POWER’s Tractor Mounted Chain Trencher?

EVER-POWER Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery for over a decade. We specialize in the production of farming machinery, planting machinery, harvesting machinery, and its accessories, offering customized services, international certifications, state-of-the-art production facilities, and excellent after-sales services.

Author: Yjx
