Introduction

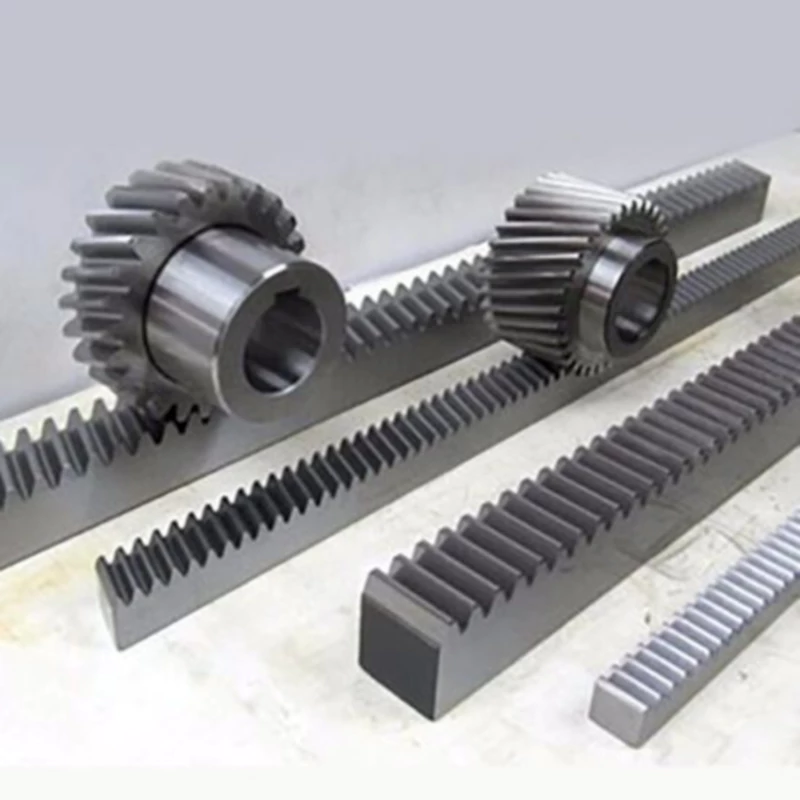

Ground helical gear racks, also known as helical toothed racks, are a type of gear mechanism used for linear motion applications. They consist of a straight bar or rack with helical teeth cut into it, which engage with a mating helical gear to convert rotary motion into linear motion or vice versa. One of the significant advantages of ground helical gear racks is their ability to transmit higher loads and torques compared to other types of gear racks. The helical teeth provide a larger contact area, resulting in improved load distribution and higher power transmission capabilities. This makes them suitable for applications requiring precise and robust linear motion, such as machine tools, robotics, automation systems, and heavy equipment.
Advantages
1. Linear Motion Conversion
Ground helical gear racks excel in converting rotational motion to linear motion. The helical teeth engagement enables smooth and efficient conversion, ensuring reliable linear motion in various applications.
2. Smooth and Efficient Operation
The helical tooth profile of the gear racks allows for smooth and efficient operation. This results in reduced noise, vibrations, and backlash, contributing to improved overall system performance.
3. Increased Load Capacity
Due to their larger contact area, ground helical gear racks can handle higher loads and torques compared to other types of gear racks. This makes them suitable for applications requiring heavy-duty linear motion.
4. Improved Precision
The helical teeth engagement of the gear racks ensures precise and accurate linear motion. This makes them suitable for applications that require high precision, such as CNC machines and measurement systems.
5. Versatility
Ground helical gear racks are versatile and can be used in various industries and applications. They are commonly employed in mechanical engineering, automation systems, power transmission systems, medical equipment, and 3D printers.
Applications
1. Mechanical Engineering
In mechanical engineering, ground helical gear racks find applications in machine tools, conveyors, cutting systems, and other equipment requiring precise linear motion.
2. Automation Systems
Ground helical gear racks play a crucial role in automation systems, enabling precise positioning and movement of robotic arms, linear actuators, and other automated components.
3. Power Transmission Systems
Ground helical gear racks are used in power transmission systems to convert rotational motion into linear motion, allowing for precise control and movement in various industrial applications.
4. Medical Equipment
Ground helical gear racks are utilized in medical equipment to enable smooth and precise linear motion in devices such as medical imaging systems, surgical robots, and patient positioning systems.
5. 3D Printers
Ground helical gear racks are integral to the operation of 3D printers, ensuring accurate and controlled linear movement of the print head and build platform.
Working Principle

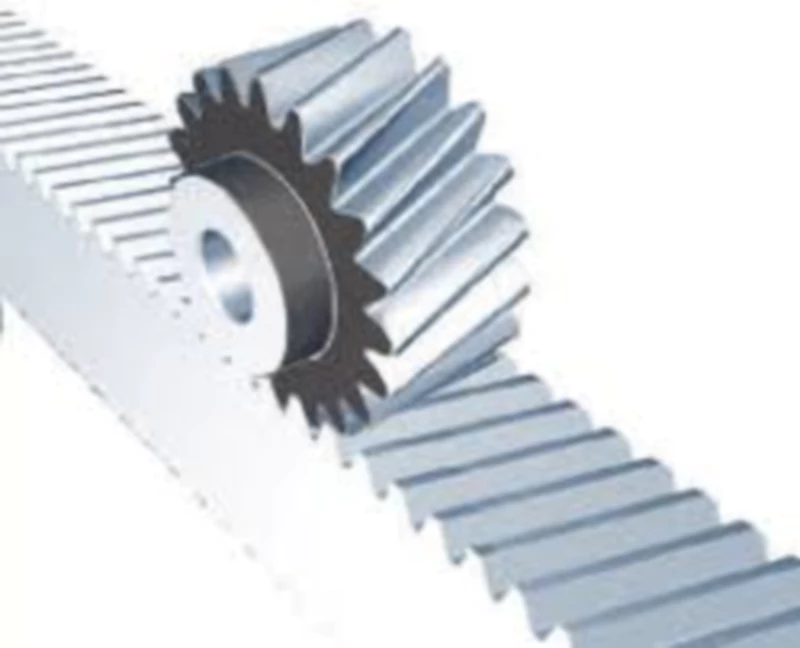

Transmission Mechanism: The gear rack is cut with helical teeth and meshes with one or more helical gears.
Conversion of Rotational Motion into Linear Motion: When the helical gear rotates, its helical teeth engage with the teeth of the gear rack, causing the gear rack to move linearly along its length.
Application of Linear Motion: The linear motion of the ground helical gear rack can be utilized in various applications, such as controlling the position of mechanical components or enabling the conveying and positioning in automated production lines.
Selecting the Right Ground Helical Gear Rack
1. Load Capacity
Consider the maximum load and torque requirements of your application to select a ground helical gear rack with the appropriate load capacity.
2. Pitch and Module
The pitch and module of the gear rack should be chosen based on the desired linear motion resolution and compatibility with the mating gear.
3. Length and Size
Determine the required length and size of the gear rack based on the specific application and installation constraints.
4. Material
Select a gear rack material that offers the necessary strength, durability, and resistance to wear and corrosion for your application.
5. Precision and Backlash
Consider the required precision and backlash tolerance of your application to choose a ground helical gear rack with the appropriate manufacturing and tooth profile quality.
6. Application Specifics
Take into account any specific requirements or constraints of your application, such as environmental conditions, speed, and operating temperature range.
7. Cost
Evaluate the cost-effectiveness of different gear rack options based on their performance, quality, and compatibility with your application.
Installation and Maintenance
Installation:
- Preparation: Ensure that all necessary tools and equipment are available for the installation process.
- Alignment: Align the gear rack and mating gear properly to ensure smooth and accurate engagement.
- Mounting: Securely mount the gear rack in the desired position using appropriate mounting hardware.
- Lubrication: Apply suitable lubrication to the gear rack and mating gear to reduce friction and ensure smooth operation.
- Testing: Perform thorough testing to verify the proper functioning of the gear rack and make any necessary adjustments.
Maintenance:
- Regular Inspection: Periodically inspect the gear rack for any signs of wear, damage, or misalignment.
- Cleaning: Clean the gear rack and mating gear regularly to remove dirt, debris, and any foreign particles that could affect their performance.
- Lubrication: Apply lubrication as recommended by the manufacturer to ensure smooth and efficient operation.
- Tightening: Check and tighten any loose bolts or fasteners to maintain proper gear rack alignment and stability.
- Repairs: In case of any significant damage or malfunction, consult a professional or follow the manufacturer’s instructions for repairs or replacements.
