How do gear racks improve system framework in woodworking equipment?

Introduction

A gear rack for the woodworking industry is a linear gear component used to convert rotational motion into linear motion. It consists of a flat, toothed bar that meshes with a pinion or gear, facilitating precise movement and positioning in woodworking machinery.

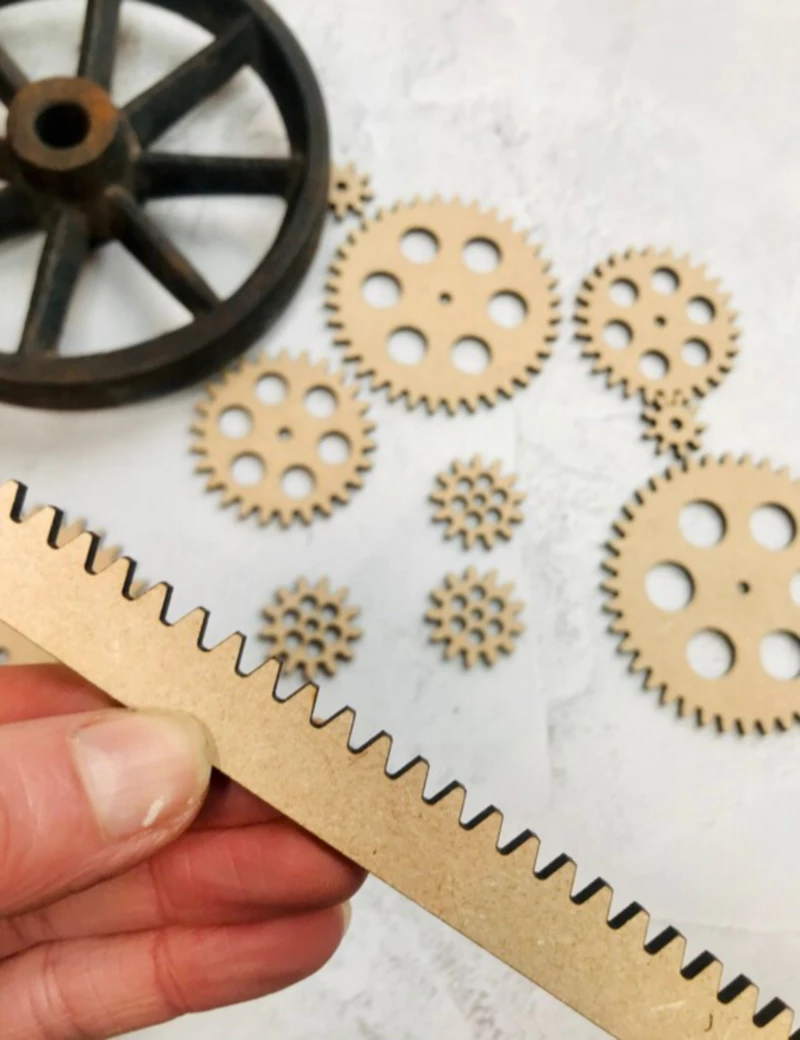

Advantages

1. Precision Control



   Precision control is crucial in woodworking equipment as it ensures accurate and consistent results. Gear racks provide precise movement and positioning, allowing for intricate woodworking tasks.

2. Durability



   Gear racks are designed to withstand heavy loads and repetitive motion, making them highly durable in woodworking equipment. They are built to last, reducing the need for frequent replacements.

3. Efficiency



   Gear racks provide efficient power transmission, ensuring smooth and consistent motion in woodworking equipment. This efficiency results in improved productivity and reduced energy consumption.

4. Versatility



   Gear racks can be used in various woodworking machinery, making them versatile components. They can be adapted to different applications, providing flexibility in system design.

5. Easy Maintenance



   Gear racks are relatively easy to maintain, requiring regular inspection, lubrication, and cleaning. Proper maintenance ensures optimal performance and extends the lifespan of the equipment.

6. Cost-Effective



   Gear racks provide a cost-effective solution for precise motion control in woodworking equipment. Their durability and efficiency contribute to long-term cost savings.

Applications

1. CNC Machines



   CNC machines in the woodworking industry rely on gear racks for precise movement and positioning. They enable automated and accurate woodworking processes.

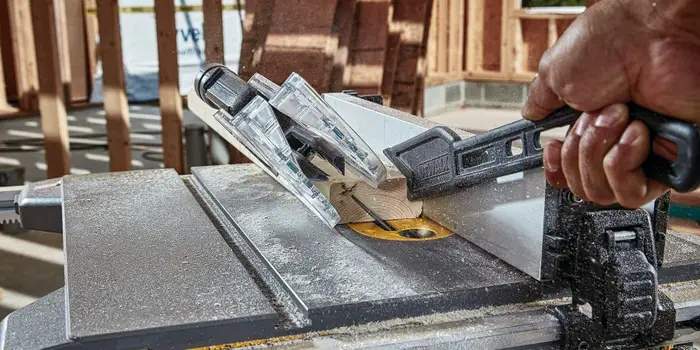

2. Saws



   Gear racks are used in saws to control the cutting motion and ensure accurate cuts. They contribute to the efficiency and precision of sawing operations.

3. Routers



   Woodworking routers utilize gear racks to guide the cutting tool along the desired path. This results in precise and consistent routing operations.

4. Drilling Machines



   Gear racks are essential in drilling machines for accurate positioning of the drilling tool. They ensure precise hole placement in woodworking applications.

5. Planers and Jointers



   Planers and jointers in woodworking equipment utilize gear racks for precise movement and alignment. They contribute to the smooth and accurate planing and jointing processes.

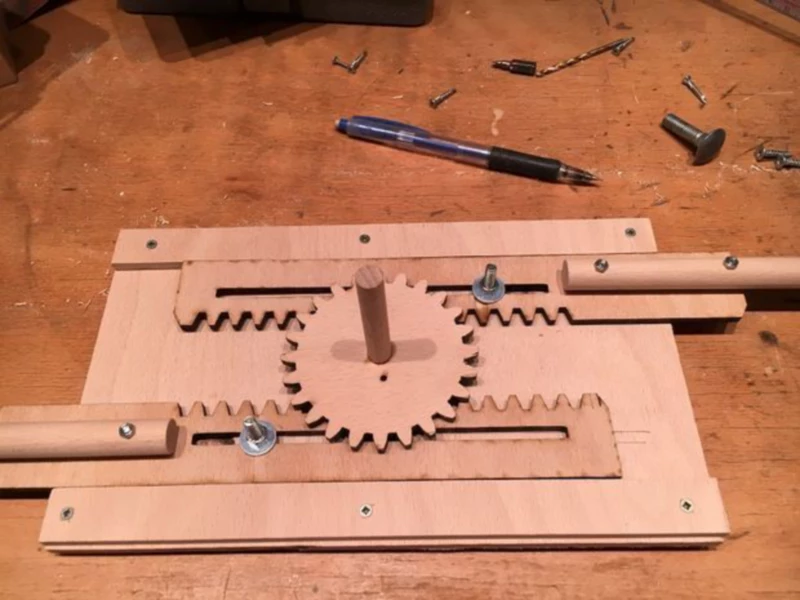

Working Principle

A gear rack works by converting rotational motion into linear motion. It consists of a toothed bar (the rack) that meshes with a circular gear (the pinion). When the pinion rotates, it moves along the rack, translating rotary motion from the motor into linear movement. This system allows for precise positioning and control in various woodworking machinery applications.

How to Select the Right Gear Rack for Woodworking Industry

1. Material



   The material of the gear rack should be chosen based on the specific requirements of the woodworking application. Factors such as load capacity, durability, and resistance to wear and corrosion should be considered.

2. Size and Length



   The size and length of the gear rack should be determined based on the space available and the desired range of motion in the woodworking equipment. Proper sizing ensures optimal performance.

3. Tooth Pitch



   The tooth pitch of the gear rack should be selected to match the pinion or gear with which it meshes. Proper tooth pitch ensures smooth and efficient motion transfer.

4. Load Capacity



   The gear rack should have sufficient load capacity to handle the forces exerted during woodworking operations. It should be able to withstand the weight and pressure applied to it.

5. Compatibility



   The gear rack should be compatible with the other components in the woodworking equipment, including the pinion or gear, motor, and control system. Compatibility ensures smooth operation and efficient performance.

6. Environmental Conditions



   The gear rack should be able to withstand the environmental conditions in which it will be used, such as temperature variations, humidity, dust, and vibrations. Proper selection ensures long-term reliability.

Installation and Maintenance

Installation:

1. Preparation
2. Alignment
3. Mounting Surface
4. Secure Fastening
5. Testing

Maintenance:

1. Regular Inspection
2. Lubrication
3. Cleaning
4. Replace Worn Parts
5. Monitor Performance

Other Gear Rack Products Offered by EVER POWER

• Stainless Steel Gear Rack
• Plastic Gear Rack
• Spur Gear Rack
• Helical Gear Rack
• Gear Rack for Door Opener

About EVER POWER

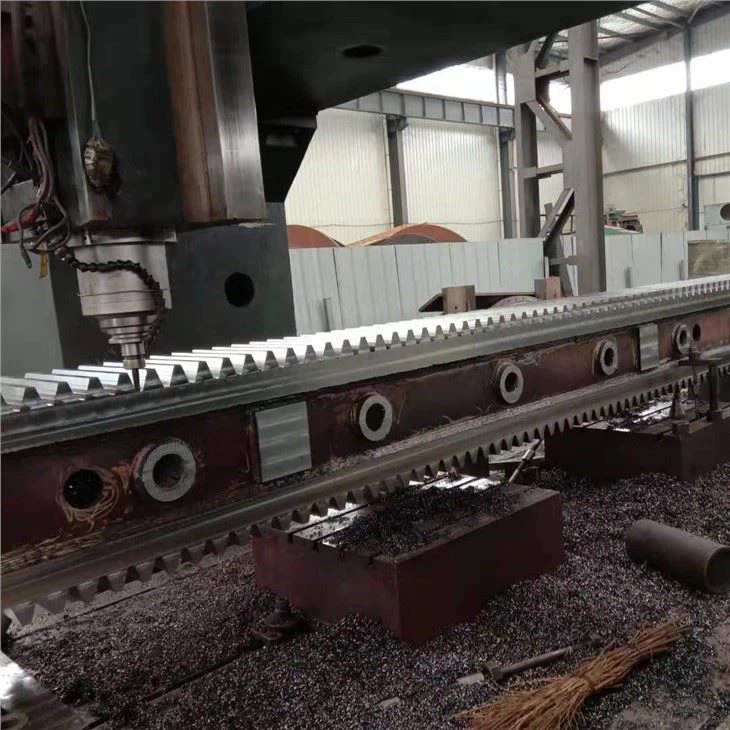

EVER POWER was established in 2006 and is a professional company specializing in the production of transmission parts. We have more than 100 professional rack production and testing equipment. Our racks have a one-time processing length of up to 3000MM and a module range of M1-M30, British CP, American DP, etc., to better adapt to market changes. For high-end customers who demand high-precision racks, we have introduced rack milling machines and rack grinding machines imported from Germany. The precision of the racks produced by this equipment can reach DIN6n25 (JIS2 level), meeting the various needs of the high-end market.

With excellent products, affordable prices, and a good service attitude, our products are exported to countries such as Spain, the Netherlands, the United States, South Korea, Turkey, and Russia. We are dedicated to helping customers develop new products and solve technical and quality problems. Our company adheres to the principles of quality first, timely delivery, and credit first. We sincerely treat
