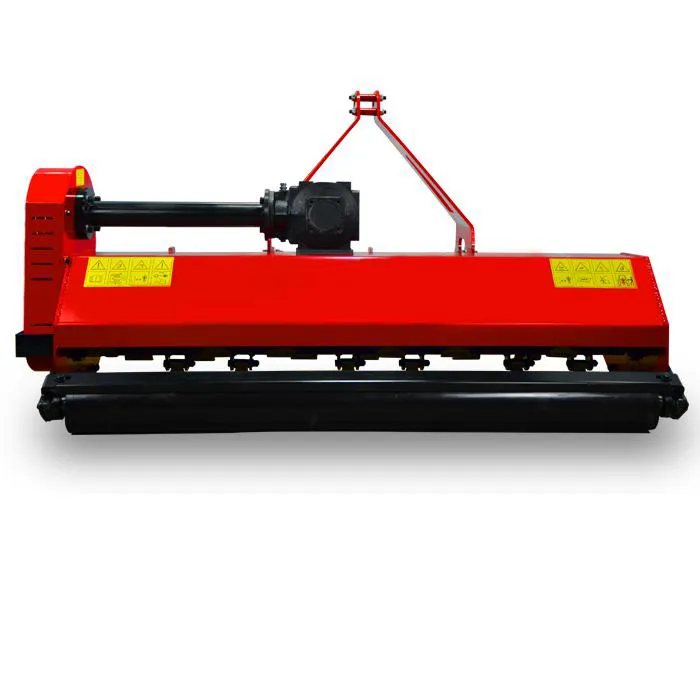

Understanding the Tractor 3 Point Hitch PTO Driven Flail Mower

A Tractor 3 Point Hitch PTO Driven Flail Mower for Crop Residue Management is an agricultural machinery designed to cut and chop crop residue into small pieces. Powered by the tractor’s Power Take-Off (PTO) system, this flail mower is attached using a 3 point hitch system, allowing easy and stable connection to the tractor. With its unique cutting mechanism, the flail mower efficiently manages crop residue, aiding in soil health and nutrient recycling.

Advantages of Tractor 3 Point Hitch PTO Driven Flail Mower for Crop Residue Management

• Efficient Cutting Mechanism: Makes use of multiple flails for precise and efficient cutting of crop residue.
• Power Take-Off Driven: Utilizes the tractor’s engine power, eliminating the need for separate power sources.
• 3 Point Hitch System: Allows for easy attachment and provides a secure and stable connection to the tractor.
• Versatility: Can handle a variety of vegetation types, from fine grass to thicker brush.
• Mulching Capability: Cuts and chops crop residue into small pieces, aiding in soil health and nutrient recycling.
• Adjustable Settings: The cutting height, the angle of the mower, and the PTO speed can be adjusted to suit different types of terrain and vegetation.

With our wealth of experience and advanced technology, we can produce this highly efficient and reliable product.

Applications of Tractor 3 Point Hitch PTO Driven Flail Mower

• Crop Residue Management: Efficient in cutting and chopping crop residue into small pieces.
• Lawn Mowing: Can be used for mowing lawns in gardens, parks, and other public spaces.
• Landscaping: Ideal for maintaining landscapes by cutting and mulching vegetation.
• Agricultural Fields: Used in agricultural fields to manage crop residue and weeds.
• Pasture Maintenance: Helps maintain pastures by cutting and mulching overgrown grasses and weeds.
• Roadside Clearing: Useful for clearing vegetation along roadsides and highways.

Working Principle of the Tractor 3 Point Hitch PTO Driven Flail Mower

The working principle of a tractor 3 point hitch PTO driven flail mower involves several key components and mechanisms that allow it to efficiently cut grass, weeds, and small brush. Here’s a breakdown of how it works:

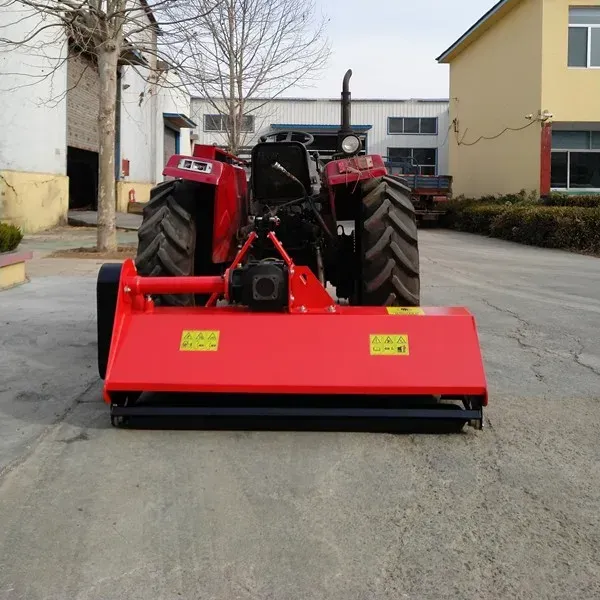

1. 3 Point Hitch System: The flail mower is attached to the tractor using a 3 point hitch system. This system typically consists of two lower arms and one upper arm, which connects the mower to the tractor. The hitch system allows for adjustments in the mower’s height and angle.
2. Power Take-Off (PTO) Drive: The PTO is a shaft that transfers mechanical power from the tractor’s engine to the flail mower. When the tractor’s PTO is engaged, it rotates the PTO shaft connected to the flail mower, powering the mower’s cutting mechanism.
3. Flail Mower Mechanism: Inside the mower, there’s a horizontal rotor that spins at high speeds. Attached to this rotor are multiple flails that are free to pivot. As the rotor spins, these flails strike and cut the vegetation.
4. Safety and Efficiency: The flail mower not only cuts the vegetation but also mulches it. Its design minimizes the risk of clogging when dealing with dense or wet vegetation.
5. Adjustments and Settings: Operators can adjust the cutting height, the angle of the mower, and the PTO speed to suit different types of terrain and vegetation. Regular maintenance is crucial for the efficient operation of the flail mower.

Tractor 3 Point Hitch PTO Driven Flail Mower Installation Steps

Installing a 3 point hitch PTO-driven flail mower to a tractor involves several steps to ensure a safe and correct setup. Here’s a general guide on how to do it:

1. Read the Manuals: Before beginning, read the tractor and flail mower manuals thoroughly to understand any specific installation instructions or safety warnings.
2. Positioning the Flail Mower: With the tractor turned off and parked on a level surface, align the flail mower directly behind the tractor.
3. Attaching to the 3 Point Hitch: Lower the tractor’s 3 point hitch so that the lower arms are at the same height as the mower’s mounting points. Connect the lower arms of the hitch to the mounting points on the flail mower.
4. Connecting the PTO Shaft: Ensure the PTO shaft’s length is suitable for the distance between the tractor and mower. Slide the PTO shaft onto the tractor’s PTO spindle and then onto the mower’s input shaft.
5. Safety Checks: Double-check all connections to ensure they’re secure. Look over the pins, locks, and PTO connection to make sure everything is properly fastened.
6. Testing and Adjustments: With the installation complete, test the mower in a safe, open area. Start the tractor and engage the PTO at a low RPM to begin with, then gradually increase to operational speed.

Operation Precautions of the Tractor PTO Driven Flail Mower

Operating a tractor PTO driven flail mower for cutting grass involves several important precautions to ensure safety and achieve the best results. These precautions can help prevent accidents, prolong the life of the mower, and maintain the health of your grassland. Here’s a comprehensive list of operation precautions:

1. Pre-Operation Checks: Before each use, inspect the flail mower for loose bolts, worn or damaged flails, and any debris lodged in the mower.
2. Proper Attachment and Adjustments: Ensure the flail mower is correctly attached to the tractor’s 3 point hitch and the PTO shaft is securely connected.
3. Operating Speed and PTO Speed: Adjust the tractor’s speed according to the grass density and terrain. Adjust the PTO speed according to the mower’s specifications.
4. Avoid Overloading the Mower: Be attentive to the sound of the tractor and mower. If the mower begins to bog down, reduce the tractor’s speed or raise the cutting height.
5. Use Caution on Slopes and Uneven Terrain: Avoid mowing on steep slopes to prevent tipping. Mow slopes up and down, not across, to enhance tractor stability.
6. Engage and Disengage the PTO Properly: Engage the PTO gradually at a low engine speed. Disengage the PTO before turning off the tractor’s engine.

Choose the Right PTO Shaft for Tractor Mounted Flail Mower

Choosing the right PTO shaft for a tractor-mounted flail mower is crucial for ensuring efficient operation, safety, and longevity of your equipment. Here are key factors and steps to consider when selecting a PTO shaft:

1. Understand PTO Shaft Specifications: The length of the PTO shaft must match the distance between the tractor’s PTO and the mower’s input shaft when attached. Ensure the PTO shaft diameter and the spline match your tractor and mower specifications.
2. Measure for Correct Length: Attach your flail mower to the tractor using the 3 point hitch system. Measure the distance between the PTO on the tractor and the input shaft on the mower at both the closest and furthest points of travel.
3. Consider Safety Features: The PTO shaft should come with a durable, fully enclosing safety shield to protect operators from entanglement hazards.
4. Adjustable and Collapsible Shafts: Many modern PTO shafts have a telescoping design that can adjust to different lengths as the distance between the tractor and the mower changes during operation.
5. Maintenance and Compatibility: Choose a PTO shaft that is easy to maintain, with clear lubrication points to ensure longevity and smooth operation. Verify that the PTO shaft is compatible with both the tractor and the flail mower models.

Why Choose EVER-POWER’s Flail Mower?

EVER-POWER Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery. With over ten years of experience in production, we mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines. Our main products include PTO shafts, agricultural gearboxes, flail mowers, rotary mowers, rotary tillers, and more. Our products are complete in specifications, excellent in performance, and reliable in quality.

We have achieved various international certifications and provide customized services according to customers’ needs. Our advanced production facilities ensure the high quality of our products, and our comprehensive after-sales services guarantee the satisfaction of our customers.

Professionalism and Quality Assurance

At EVER-POWER, we value professionalism and quality. We have a team of highly trained professionals who are dedicated to developing and producing high-quality agricultural machinery. All our products undergo strict quality control procedures to ensure they meet international standards.

Customized Services

We understand that every farm and field are unique. Therefore, we offer customized services to cater to the specific needs of our customers. Whether it’s a specific size, design, or functionality, we can tailor our products to meet your requirements.

After-Sales Services

Our commitment to our customers goes beyond the sale. We provide comprehensive after-sales services, including product training, maintenance tips, and prompt responses to any product concerns or questions.
