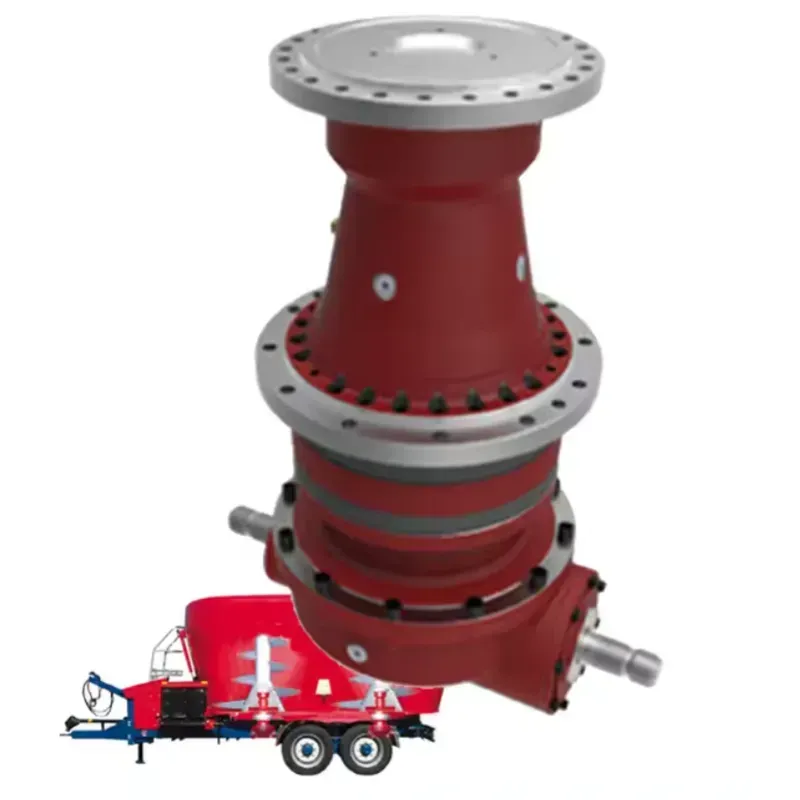

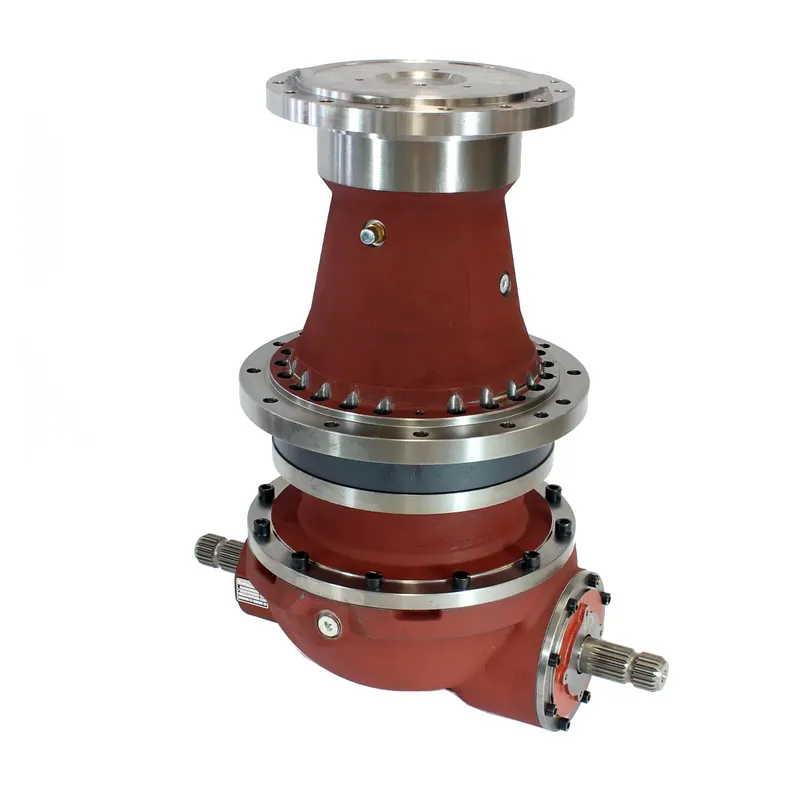

The vertical feed mixer gearbox for insulation material mixing is a specialized component designed to optimize the blending process of insulation materials. This gearbox is an integral part of vertical feed mixers, which are widely used in industries dealing with materials like fiberglass, mineral wool, and other insulating substances. It features robust construction, often made from high-strength steel or other durable metals, to withstand the demanding environment of continuous mixing.

The gearbox operates by converting the motor’s high-speed rotational energy into the lower speed, high-torque output needed to effectively mix the dense and often bulky insulation materials. It typically includes precision-engineered gears, bearings, and lubrication systems to ensure smooth operation and long-term reliability. The design often incorporates features such as adjustable speed control, overload protection, and easy maintenance access to minimize downtime and enhance efficiency. Additionally, the vertical orientation of the mixer ensures that materials are consistently fed and mixed from top to bottom, preventing segregation and ensuring a homogeneous blend. This is crucial in insulation material production, where uniformity impacts the thermal and acoustic performance of the end products.

Advantages of Vertical Feed Mixer Gearbox for Insulation Material Mixing

The Vertical Feed Mixer Gearbox for Insulation Material Mixing offers several advantages that enhance the efficiency and effectiveness of the mixing process. These advantages include:

1. Uniform Mixing: The vertical design ensures materials are consistently blended from top to bottom, preventing segregation and ensuring a homogeneous mix. This uniformity is crucial for maintaining the quality and performance of insulation materials.
2. High Torque Output: The gearbox converts high-speed motor input into low-speed, high-torque output, which is essential for effectively mixing dense and bulky insulation materials. This results in a more efficient and thorough blending process.
3. Durability and Reliability: Constructed from high-strength materials like steel, the gearbox is designed to withstand the rigorous demands of continuous mixing operations. This durability ensures a long service life and reduces the need for frequent replacements.
4. Adjustable Speed Control: Many gearboxes feature adjustable speed controls, allowing operators to fine-tune the mixing process according to the specific requirements of different insulation materials. This flexibility improves the overall efficiency and quality of the mix.
5. Overload Protection: Built-in overload protection mechanisms safeguard the gearbox and mixer from damage caused by excessive loads or blockages, ensuring safe and reliable operation.
6. Versatility: The gearbox can be used with a variety of insulation materials, including fiberglass, mineral wool, and other insulating substances, making it a versatile component in the production process.
7. Improved Product Quality: By ensuring a consistent and thorough mix, the gearbox helps produce insulation materials with superior thermal and acoustic properties, enhancing the overall quality of the final products.

Typical Applications:

The vertical feed mixer gearbox for insulation material mixing has a wide range of applications in various industries where efficient and thorough blending of insulation materials is crucial. These applications include:

• Construction Industry: Used in the production of insulation materials such as fiberglass and mineral wool, which are essential for thermal and acoustic insulation in buildings. The gearbox ensures uniform mixing, enhancing the quality of insulation products used in walls, roofs, and floors.
• Manufacturing of HVAC Systems: In the production of HVAC (Heating, Ventilation, and Air Conditioning) systems, insulation materials are critical for maintaining energy efficiency and reducing noise. The gearbox aids in producing high-quality insulation components for these systems.
• Automotive Industry: Insulation materials are used in vehicles to improve thermal management and reduce noise. The vertical feed mixer gearbox ensures that the insulation materials used in automotive manufacturing are consistently mixed, enhancing the performance of thermal and acoustic insulation in vehicles.
• Appliance Manufacturing: Household and industrial appliances, such as refrigerators and ovens, require effective insulation to operate efficiently. The gearbox helps in producing insulation materials that meet the stringent requirements of the appliance industry.
• Industrial Equipment: Insulation is often required in various industrial equipment to maintain temperature control and reduce noise levels. The vertical feed mixer gearbox ensures the production of high-quality insulation materials for such applications.
• Railway Industry: Insulation materials are used in trains to improve passenger comfort by reducing noise and maintaining a stable temperature. The gearbox ensures the production of high-quality insulation materials for railway applications.
• Aerospace Industry: Insulation materials are used in aircraft and spacecraft to manage temperature and reduce noise. The vertical feed mixer gearbox ensures the consistency and quality of insulation materials used in these high-tech applications.

Working Principle of Vertical Feed Mixer Gearbox for Insulation Material Mixing

The working principle of the vertical feed mixer gearbox involves several key components and processes that work together to ensure efficient and uniform mixing of insulation materials. Here is a detailed explanation of the working principle:

1. Motor and Power Transmission: The process begins with an electric motor that provides the initial rotational energy. The motor is connected to the gearbox via a coupling or direct drive, ensuring efficient power transmission.
2. Gear Reduction: The gearbox’s primary function is to convert the high-speed, low-torque output from the motor into low-speed, high-torque output suitable for mixing dense insulation materials. This is achieved through a series of gears, typically including a combination of helical, bevel, or planetary gears, depending on the specific design. The gear reduction ratio is carefully selected to provide the optimal mixing speed and torque.
3. Vertical Orientation and Mixing Mechanism: The vertical feed mixer is designed with a vertically oriented mixing chamber. The gearbox is mounted at the top or bottom of this chamber, driving a central mixing shaft that extends vertically through the chamber. Attached to this shaft are various mixing blades, paddles, or augers that rotate and agitate the insulation materials.
4. Material Feeding: Insulation materials are fed into the mixer from the top. Gravity aids in the continuous feeding of materials into the mixing chamber, ensuring a steady flow and preventing blockages.
5. Mixing Process: As the mixing shaft rotates, the attached blades or paddles create a turbulent flow within the chamber. This motion ensures that materials are continuously lifted, turned, and mixed, resulting in a homogeneous blend. The vertical orientation helps prevent material segregation and promotes uniform distribution of different components.
6. Discharge: Once the materials are thoroughly mixed, they are discharged from the bottom of the mixing chamber. The mixed insulation materials can then be processed further or packaged for use.

Proper Maintenance:

Proper maintenance of Vertical Feed Mixer Gearboxes is essential to ensure their longevity, efficiency, and reliability. Here are the key steps to maintain these gearboxes:

• Regular Inspection: Conduct routine inspections to check for signs of wear, damage, or misalignment in the gearbox components. Look for any unusual noises, vibrations, or leaks that might indicate potential problems.
• Lubrication: Ensure that the gearbox is properly lubricated according to the manual’s specifications. Use the recommended type and grade of lubricant, and maintain the correct oil levels. Regularly check the lubricant for contamination and replace it as necessary.
• Cleaning: Keep the gearbox and surrounding area clean. Remove any dust, dirt, or debris that could interfere with the gearbox’s operation. Regular cleaning prevents the buildup of contaminants that could cause wear or overheating.
• Temperature Monitoring: Monitor the operating temperature of the gearbox. Excessive heat can indicate overloading or insufficient lubrication. Install temperature sensors if necessary, and address any overheating issues promptly.
• Seal Inspection and Replacement: Regularly inspect the seals and gaskets to ensure they are intact and functioning properly. Replace any worn or damaged seals to prevent lubricant leaks and contamination.
• Alignment Check: Ensure that the gearbox and the motor are properly aligned. Misalignment can cause undue stress on the gears and bearings, leading to premature wear. Use alignment tools and techniques to verify and correct alignment as needed.
• Load Monitoring: Monitor the load conditions to ensure the gearbox is not being overloaded. Overloading can cause excessive wear and damage to the gears and other components. Use load sensors if necessary to keep the load within safe operating limits.
• Vibration Analysis: Conduct regular vibration analysis to detect early signs of imbalance, misalignment, or bearing wear. This proactive approach can help identify issues before they lead to significant damage.

Choose the Right Vertical Feed Mixer Gearbox for Insulation Material Mixing

Choosing the right vertical feed mixer gearbox for insulation material mixing involves considering several key factors to ensure optimal performance and longevity. Here’s a guide to help you make the right choice:

• Load Capacity and Torque Requirements: Assess the load capacity and torque requirements based on the density and volume of insulation materials you will be mixing. The gearbox must provide adequate torque to handle heavy, dense materials without overloading. This ensures smooth operation and prevents premature wear and tear on the gearbox components.
• Gearbox Design and Configuration: Select a gearbox design that suits your specific application. Helical, bevel, or planetary gears may be preferable depending on your mixing needs. Consider the vertical configuration’s impact on mixing efficiency and space constraints in your facility. A well-designed gearbox will enhance the mixing process and fit seamlessly into your production setup.
• Material and Construction Quality: Choose gearboxes made from high-quality materials such as hardened steel or cast iron to withstand the harsh operating conditions of insulation material mixing. Robust construction ensures durability and long-term reliability, reducing the frequency of maintenance and replacements.
• Speed and Control Features: Look for gearboxes with adjustable speed controls to fine-tune the mixing process according to different insulation materials’ properties. Variable speed options allow for precise control over the mixing intensity, enhancing the quality and consistency of the final product.
• Lubrication and Cooling Systems: Ensure the gearbox is equipped with an efficient lubrication system to minimize friction and wear on moving parts. Proper lubrication is crucial for smooth operation and longevity. Additionally, effective cooling mechanisms, such as heat sinks or fans, prevent overheating during continuous use.
• Compatibility with Existing Equipment: Verify that the gearbox is compatible with your existing vertical feed mixer and other related equipment. Proper compatibility ensures seamless integration and operation, avoiding potential issues related to misalignment or mismatched components.

Why Choose EVER-POWER’s Vertical Feed Mixer Gearbox?

EVER-POWER is a leading manufacturer of high-performance vertical feed mixer gearboxes, offering customized solutions for insulation material mixing. Our vertical feed mixer gearboxes are a powerful replacement option for Comer Industries, Bondioli & Pavesi, Brevini, Kuhn, Storti, Trioliet, Jaylor, Schuler and other brands of gearboxes. Our technical staff can reconfigure an existing design or assist you in designing a custom vertical feed mixer gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, input speed, output speed, input torque, output torque, mounting position, and the application’s environment are all considerations when choosing a vertical feed mixer gearbox. If you want to buy a vertical feed mixer gearbox, please get in touch with us.

• Professionalism: Our technical staff ensures top-notch quality and service for all gearbox requirements.
• International Certifications: We meet global standards for manufacturing and safety, ensuring reliable and compliant products.
• Customized Services: Tailor-made gearbox solutions based on specific application needs for optimal performance.
• Production Facilities: State-of-the-art manufacturing facilities equipped with advanced technology for precision gearbox production.
• After-Sales Services: Comprehensive support and maintenance services to keep gearboxes running smoothly.
