The 41 stainless steel roller chain is an industrial-grade product that stands above the rest in terms of strength, durability, and performance. Engineered from high-grade stainless steel, these roller chains are designed to withstand the most demanding environments and high-torque applications. The superior anti-corrosion properties make them ideal for use in various industries such as food processing, pharmaceuticals, and marine applications.

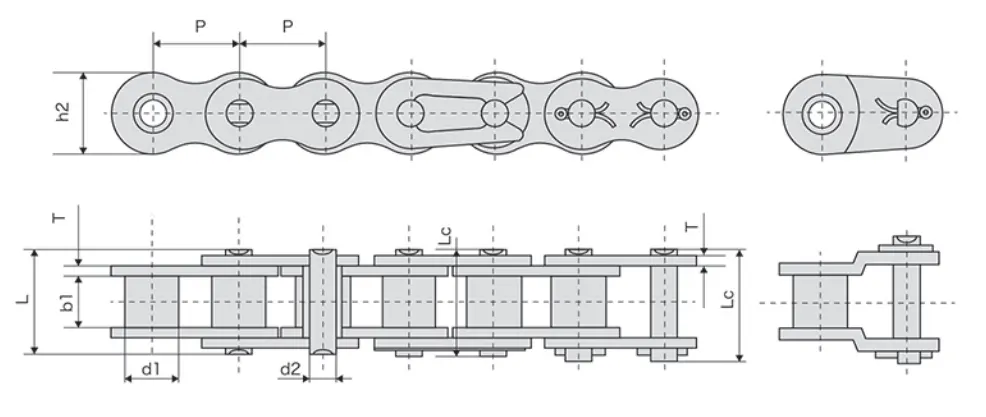

Specifications and Features of 41 Stainless Steel Roller Chain
The 41 stainless steel roller chain is characterized by its robust construction and specific dimensions. Here are the key specifications:
|
DIN/ISO |
ANSI |
Pitch |
Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Inner plate depth |
Plate thickness |
Ultimate tensile strength |
Average tensile strength |
Weight per meter |
|
|
P |
d1(max) |
b1(min) |
d2(max) |
L(max) |
Lc(max) |
h2(max) |
T(max) |
Q(min) |
Q0 |
q |
||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kN |
kN |
kg/m |
||
|
085SS-1 |
41SS |
12.7 |
7.77 |
6.25 |
3.58 |
13.75 |
15 |
9.91 |
1.3 |
4 |
7.56 |
0.41 |

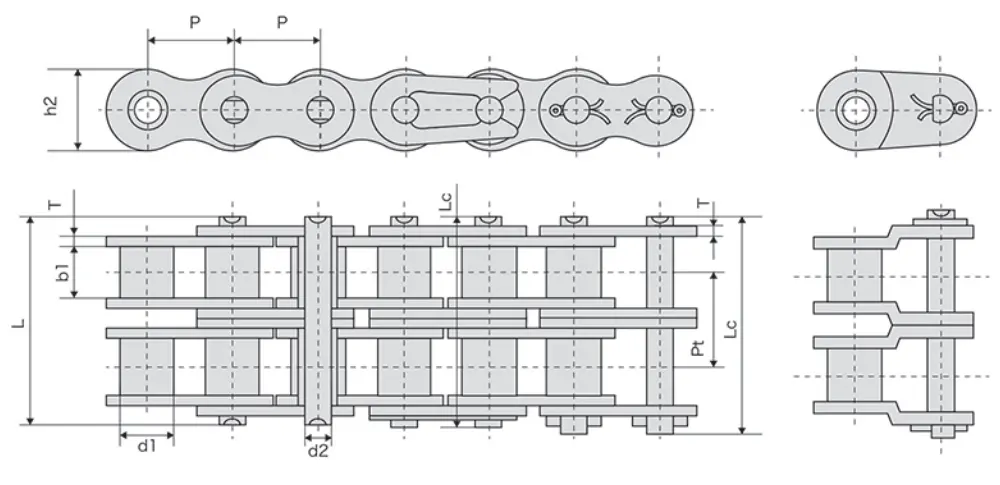

Duplex Type
|
IDN/ISO Chain No. |
ANSI Chain No. |
Pitch |
Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Inner plate depth |
Plate thickness |
Transverse pitch |
Ultimate tensile strength |
Average tensile strength |
Weight per meter |
|
|
P |
d1(max) |
b1(min) |
d2(max) |
L(max) |
Lc(max) |
h2(max) |
T(max) |
Pt |
Q(min) |
Q0 |
q |
||
|
mm |
mm |
mm |
mm |
mmm |
mm |
mm |
mm |
mm |
kN |
kN |
kg/m |
||
|
085SS-2 |
41SS-2 |
12.7 |
7.77 |
6.25 |
3.58 |
25.7 |
26.9 |
9.91 |
1.3 |
11.95 |
8 |
10.14 |
0.81 |
The unique features of the 41 stainless steel roller chain include:
- Excellent corrosion resistance
- High tensile strength
- Superior wear resistance
- Low maintenance requirements
Applications of 41 Stainless Steel Roller Chain
The 41 stainless steel roller chain is versatile and finds applications in various industries:
- Food Processing: Due to its corrosion-resistant properties, it is ideal for food processing applications where the chain is exposed to acidic or alkaline environments.
- Marine Applications: The 41 stainless steel roller chain is excellent for marine applications where it has to withstand harsh weather conditions and saltwater exposure.
- Pharmaceutical Industry: In the pharmaceutical industry, the chain is exposed to various chemicals, making the 41 stainless steel roller chain an excellent choice due to its high chemical resistance.
How to Choose 41 Stainless Steel Roller Chain？
Choosing the right 41 stainless steel roller chain involves considering a few key factors:
- Application: Understand the working conditions and choose the chain accordingly.
- Material: Ensure the material is stainless steel for better corrosion resistance.
- Size and Strength: Choose the correct size and strength based on the load and speed of your application.
Complementary Sprockets for 41 Stainless Steel Roller Chain
At Ever-power, we understand that the performance of a 41 stainless steel roller chain is greatly enhanced by the quality of its complementary sprockets. That’s why, in addition to our premium stainless steel chains, we offer precision-engineered sprockets specifically designed to ensure optimal engagement and durability. Our sprockets are crafted to meet the highest standards, providing seamless compatibility with our chains for superior performance in various applications.
About Ever-power
Ever-power is a leading manufacturer and supplier of stainless steel roller chains in China. We are committed to delivering excellent customer service and creating value for our customers. With years of experience in the industry, we ensure the best quality of our products. All chains leaving our facilities are thoroughly tested and shipped out quickly. We have been working with stainless steel chains and attachments for more than a generation, proving our expertise and dedication in this field.
We invite you to explore our range of 41 stainless steel roller chains and experience our world-class service. Contact us today for your chain system needs and let us help you power your business to new heights.
