Irrigation Wheel Drive Gearbox Compatibility Guide

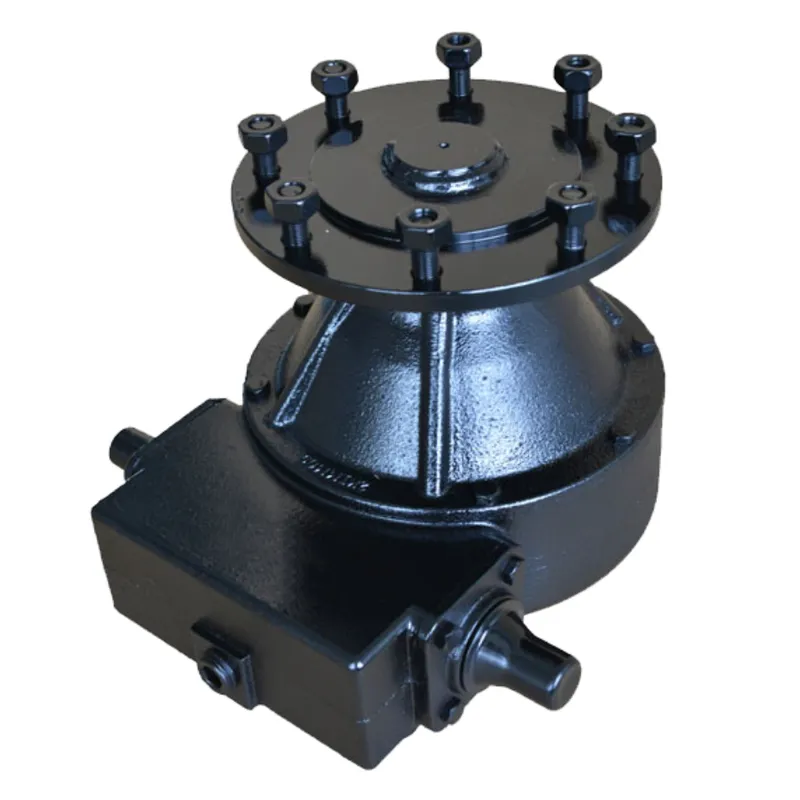

What is the Irrigation Wheel Drive Gearbox?

The Irrigation Wheel Drive Gearbox is a key component designed to drive the wheels of center pivot and lateral move irrigation systems. It is engineered to convert mechanical energy into motion, facilitating even water distribution across agricultural fields. This gearbox is highly crucial for modern farming, in terms of ensuring efficiency and productivity in crop irrigation.

Advantages of the Irrigation Wheel Drive Gearbox

Our Irrigation Wheel Drive Gearbox stands out in the market with its numerous advantages:

• Highly efficient in converting mechanical energy into the necessary wheel motion
• Durable and robust, designed to withstand challenging farming conditions
• Offers a wide range of torque outputs to cater to different irrigation system requirements
• Ensures even and efficient water distribution, thus improving crop yield
• Customizable to perfectly replace damaged parts on agricultural machinery

We produce this reliable product, making it a perfect replacement for corresponding parts that are damaged on agricultural machinery.

Applications of the Irrigation Wheel Drive Gearbox

The Irrigation Wheel Drive Gearbox is widely used in:

• Center pivot irrigation systems
• Lateral move irrigation systems
• Large-scale agricultural farms
• Greenhouse irrigation



• Industrial plant irrigation

How Does the Irrigation Wheel Drive Gearbox Work?

The Irrigation Wheel Drive Gearbox works in a systematic and efficient manner:

1. Power Source Connection: The gearbox connects to a power source, typically an electric motor or a hydraulic system, which supplies the rotational energy necessary to drive the gearbox.
2. Transmission of Mechanical Energy: The power source activates and rotates the input shaft of the gearbox, which is directly connected to the internal gearing system. This system modifies the characteristics of the input mechanical energy by reducing the rotational speed and increasing the torque.
3. Conversion Process: The internal gears of the gearbox adjust the output to meet the specific requirements of the irrigation system, converting high-speed, low-torque rotation into low-speed, high-torque rotation.
4. Output Delivery: The transformed mechanical energy is delivered to the wheels of the irrigation system via the gearbox’s output shaft, facilitating the movement of the irrigation system.
5. Movement and Water Distribution: As the gearbox drives the wheels, the irrigation system moves across the field, and water is pumped through the system’s pipes and emitted through sprinklers, ensuring an even and efficient distribution of water across the crops.

Installation Steps of Irrigation Wheel Drive Gearbox for Irrigation System

Installing an irrigation wheel drive gearbox involves the following steps:

1. Positioning the Gearbox: Align the gearbox with the wheel hub where the drive will occur.
2. Mounting the Gearbox: Secure the gearbox to its mounting point using the provided bolts.
3. Connecting the Power Source: Connect the drive shaft from the power source to the input shaft of the gearbox, ensuring a tight and secure connection.
4. Lubricate the Gearbox: Fill the gearbox with the appropriate lubricant and apply grease to any additional moving parts associated with the gearbox installation.
5. Inspect the Installation: Double-check all connections, bolts, and lubrication points, and conduct a test run of the irrigation system to verify that the gearbox is functioning correctly.

Common Troubleshooting of the Irrigation Wheel Drive Gearbox

Here are some common problems encountered with these gearboxes and practical solutions:

1. Gearbox Does Not Engage or Drive the Wheels: Check if the power source is properly connected and functioning.
2. Excessive Noise or Vibration: Noise could indicate that internal gears are worn or damaged. Inspect the gears and replace them if needed.
3. Leaking Gearbox Oil: Inspect the gearbox for damaged or worn seals and replace them to prevent oil leaks.
4. Gearbox Overheating: Check the oil level and quality. Refill or replace the oil if it is low or has degraded to ensure proper lubrication.
5. Reduced Efficiency in Power Transmission: Regular use can lead to general wear and tear of the gearbox components. Conduct a thorough inspection and replace worn parts.

Choosing the Right Irrigation Wheel Drive Gearbox for Your Irrigation System

Here are key factors to consider when selecting a gearbox:

1. Type of Irrigation System: Consider the specific requirements of your irrigation system.
2. Load Capacity and Torque Requirements: Calculate the load that the gearbox will need to handle, and choose a gearbox with a torque output that matches or exceeds your system’s requirements.
3. Gear Ratio: Select a gear ratio that matches the desired speed and torque output for the irrigation system.
4. Durability and Construction Quality: Look for gearboxes made from durable materials capable of withstanding the environmental conditions of your location.
5. Efficiency and Environmental Considerations: Some gearboxes are designed to be more energy-efficient, which can be important if you’re aiming to reduce operational costs.

Why Choose Ever-Power’s Irrigation Wheel Drive Gearbox?

Ever-Power is a leading manufacturer of high-performance agricultural gearboxes. Our technical staff can reconfigure an existing design or assist in designing a custom agricultural PTO gearbox if a standard design does not fit your application. We can offer many types of agricultural gearboxes and PTO shafts, catering to a wide range of applications. If you want to invest in quality agricultural gearboxes, get in touch with us.

Professionalism and Certifications

Our company is well-recognized for its professionalism in producing agricultural gearboxes. We hold numerous international certifications, signifying our commitment to delivering quality products.

Customized Services

We offer customized services to cater to your specific needs. Our team works closely with customers to understand their requirements and deliver products that meet their expectations.

Production Facilities

Our state-of-the-art production facilities are equipped with advanced machinery and technology, enabling us to produce high-quality gearboxes consistently.

After-Sales Services

We offer comprehensive after-sales services, including product maintenance and repair, to ensure customer satisfaction.

Author: Yjx
